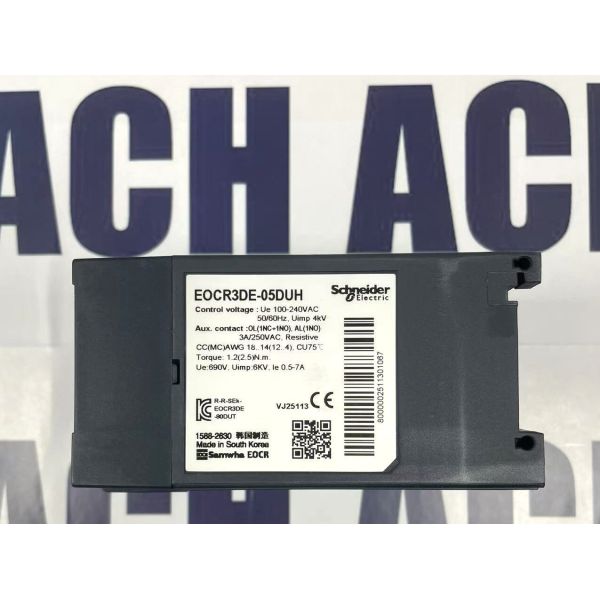

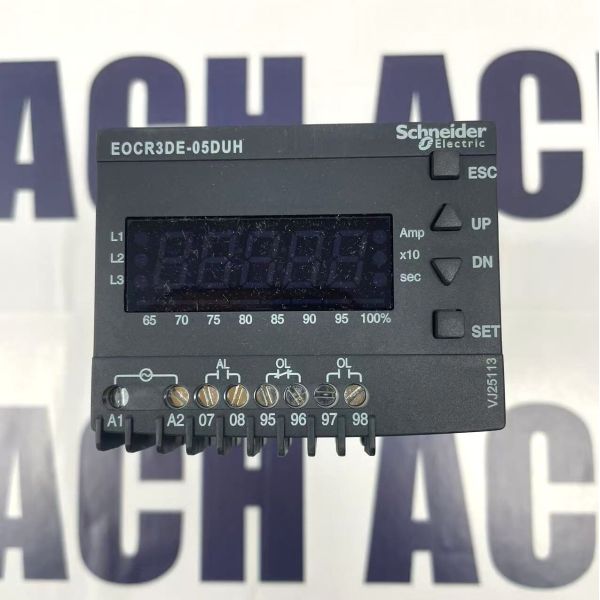

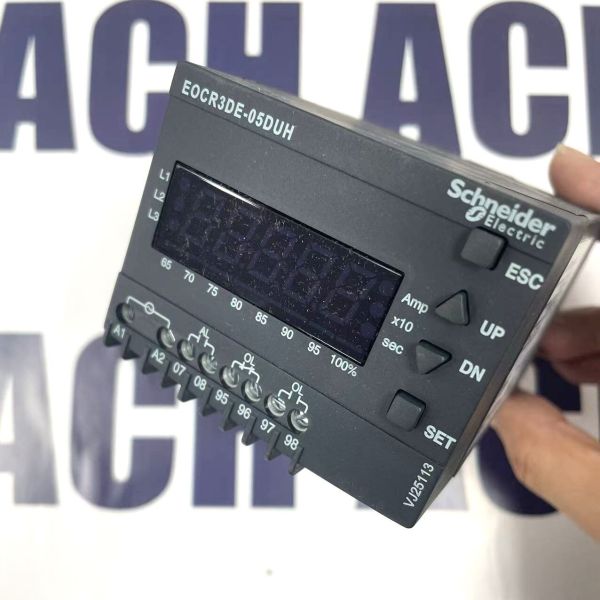

Schneider Electric EOCR3DE-05DUH | 0.5-7A Digital Motor Protector 100-240V AC/DC
Schneider Electric EOCR3DE-05DUH | 0.5-7A Digital Motor Protector 100-240V AC/DC
Schneider Electric EOCR3DE-05DUH | 0.5-7A Digital Motor Protector 100-240V AC/DC
Schneider Electric EOCR3DE-05DUH | 0.5-7A Digital Motor Protector 100-240V AC/DC
Schneider Electric EOCR3DE-05DUH | 0.5-7A Digital Motor Protector 100-240V AC/DC
Schneider Electric EOCR3DE-05DUH | 0.5-7A Digital Motor Protector 100-240V AC/DC
Schneider Electric EOCR3DE-05DUH | 0.5-7A Digital Motor Protector 100-240V AC/DC
Schneider Electric EOCR3DE-05DUH | 0.5-7A Digital Motor Protector 100-240V AC/DC
Specifications
Brand Name :
Schneider Electric
Model Number :
EOCR3DE-05DUH
Certification :
ATEX
Place of Origin :
KR
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,XT,ALIPAY
Supply Ability :
100pcs per month
Delivery Time :
Negotiable
Packaging Details :
carton
Power Supply :
1
Ambient Temperature :
-
Electrical Rating :
G
Certifications :
S
Description

Schneider Electric EOCR3DE-05DUH | 0.5-7A Digital Motor Protector 100-240V AC/DC

Schneider Electric EOCR3DE-05DUH electronic motor relay. 0.5-7A range, True RMS sensing, 100-240V AC/DC supply. Protects against overload, phase loss, and stall. Through-type (DUH) design for DIN rail.

Product Overview

The Schneider Electric EOCR3DE-05DUH​ is a digital electronic motor protection relay​ from the EOCR-3DE series. It provides comprehensive protection for three-phase and single-phase motors​ in the 0.5–7 A​ current range. Featuring True RMS current measurement​ and a 100–240 V AC/DC wide-range power supply, this "through-type" (DUH) model is designed for direct DIN rail mounting with motor cables passing through the unit, eliminating the need for external current transformers (CTs) in standard applications.

Technical Specifications (Electrical & Protection)

Parameter

Specification

Manufacturer / Series​

Schneider Electric / EOCR-3DE

Model Number​

EOCR3DE-05DUH

Product Type​

Digital Electronic Motor Protection Relay

Rated Motor Current (Ie)​

0.5 – 7 A​ (Adjustable, True RMS)

Measurement Accuracy​

±1%​ (True RMS algorithm)

Control Supply Voltage (Us)​

100 – 240 V AC/DC​ (Auto-sensing)

Max. System Voltage​

600 V AC​ (50/60 Hz)

Protection Functions​

Overload (OC), Underload (UC), Phase Loss (PL), Locked Rotor (SC), Reverse Phase, Phase Unbalance, Extended Start Time

Output Relay Contacts​

1 NO + 1 NC​ (Trip Relay), 3 A @ 250 V AC

Technical Specifications (Mechanical & Environmental)

Parameter

Specification

Mounting Style​

35 mm DIN Rail​

Connection Type​

Through-Type (DUH)​ – Cables pass through sensor

Display & Interface​

LED Digital Display, Front Keypad for Setup

Dimensions (W×H×D)​

70 × 56.3 × 106 mm​

IP Rating​

IP20​ (Front)

Operating Temperature​

-20 °C to +60 °C​

Reset Modes​

Manual, Automatic, Remote (Configurable)

Standards Compliance​

IEC 60947-4-1, UL 508, CE, RoHS

Key Features

  • Wide Supply Voltage:​ Operates on 100–240 V AC or DC, simplifying control panel design.

  • Integrated Sensor:​ Through-type (DUH) design includes built-in current sensors, saving space and cost for small motor applications.

  • Advanced Diagnostics:​ LED display shows real-time current, fault codes, and trip history for quick troubleshooting.

  • Flexible Reset:​ Configurable for manual (front button), automatic, or remote electrical reset.

Applications

  • Protection of small 3-phase motors (pumps, fans, compressors)

  • OEM machinery and compact control panels

  • HVAC and building automation systems
