Specifications
Brand Name :
Pilz
Model Number :
PNOZ s3
Certification :
ATEX
Place of Origin :
DE
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,XT,ALIPAY
Supply Ability :
100pcs per month
Delivery Time :
Negotiable
Packaging Details :
carton
Power Supply :
1
Ambient Temperature :
-
Electrical Rating :
G
Certifications :
S
Description

Pilz PNOZ s3 | 24V DC Safety Relay for E-Stop & Door Monitoring

Pilz PNOZ s3 safety relay. 24V DC operating voltage, 2 safety N/O contacts, 1 semiconductor output. Monitors emergency stops, safety gates, and light curtains. EN 60947-5-1 certified.

Product Overview

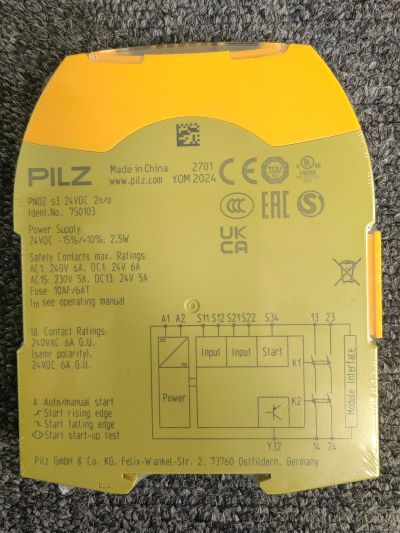

The Pilz PNOZ s3​ is a compact safety relay​ from the PNOZsigma series​ designed for monitoring emergency stop circuits, safety gates, and light curtains. It operates on 24V DC​ and features 2 safety normally open (NO) contacts​ plus 1 semiconductor output. With a slim width of 17.5 mm, it is suitable for DIN rail mounting in control panels and provides reliable safety function monitoring according to EN 60947-5-1.

Technical Specifications (Electrical & Functional)

Parameter

Specification

Brand / Series​

Pilz / PNOZsigma

Product Type​

Safety Relay (Standalone Unit)

Operating Voltage (UB)​

24 V DC​ (-15% / +10%)

Power Consumption​

Approx. 2.5 W

Safety Outputs​

2 x NO​ (Safety Contacts)

Auxiliary Output​

1 x Semiconductor Output (DC-12/DC-13)

Contact Rating​

AC-15: 230V / 5A ; DC-13: 24V / 5A

Input Channels​

1 or 2-channel wiring (with short-circuit detection)

Reset Mode​

Manual or Automatic (selectable)

Safety Standards​

EN 60947-5-1, EN ISO 13849-1, EN 62061

Technical Specifications (Mechanical & Environmental)

Parameter

Specification

Dimensions (H x W x D)​

98 x 17.5 x 120 mm​

Mounting​

DIN Rail (35 mm)

Terminal Type​

Plug-in Screw Terminal

Wire Cross-Section​

0.25 - 2.5 mm² (solid)

Degree of Protection​

Housing: IP40, Terminals: IP20

Operating Temperature​

-10 °C to +55 °C​

Storage Temperature​

-25 °C to +70 °C

Relative Humidity​

≤ 93% at 40 °C

Weight​

Approx. 150 g

Key Features

  • Flexible Monitoring:​ Supports monitoring of E-stop buttons, safety doors, and light curtains with configurable reset modes.

  • Diagnostic Capability:​ LED status indicators for power, output, reset, and fault conditions.

  • Easy Installation:​ Plug-in screw terminals and compact design save space in control cabinets.

Applications

  • Emergency stop circuit monitoring in machinery

  • Safety door and gate interlocking

  • Light curtain and two-hand control monitoring
