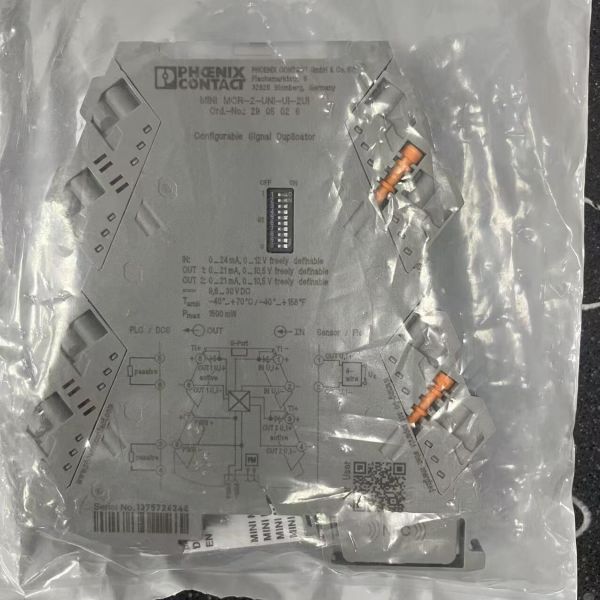

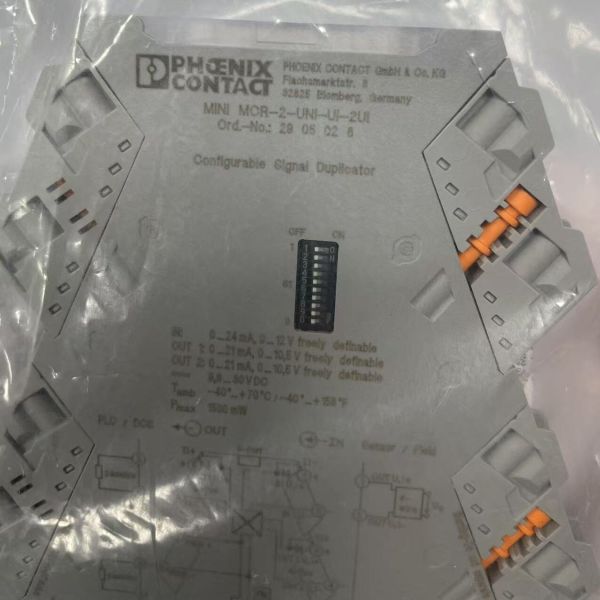

Phoenix Contact MINI MCR-2-UNI-UI-2UI | 2-Channel Analog Isolator, 24V DC
Phoenix Contact MINI MCR-2-UNI-UI-2UI | 2-Channel Analog Isolator, 24V DC
Phoenix Contact MINI MCR-2-UNI-UI-2UI | 2-Channel Analog Isolator, 24V DC
Phoenix Contact MINI MCR-2-UNI-UI-2UI | 2-Channel Analog Isolator, 24V DC
Phoenix Contact MINI MCR-2-UNI-UI-2UI | 2-Channel Analog Isolator, 24V DC
Phoenix Contact MINI MCR-2-UNI-UI-2UI | 2-Channel Analog Isolator, 24V DC
Phoenix Contact MINI MCR-2-UNI-UI-2UI | 2-Channel Analog Isolator, 24V DC
Phoenix Contact MINI MCR-2-UNI-UI-2UI | 2-Channel Analog Isolator, 24V DC
Phoenix Contact MINI MCR-2-UNI-UI-2UI | 2-Channel Analog Isolator, 24V DC
Phoenix Contact MINI MCR-2-UNI-UI-2UI | 2-Channel Analog Isolator, 24V DC
Specifications
Brand Name :
Phoenix Contact
Model Number :
MINI MCR-2-UNI-UI-2UI
Certification :
ATEX
Place of Origin :
DE
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,XT,ALIPAY
Supply Ability :
100pcs per month
Delivery Time :
Negotiable
Packaging Details :
carton
Power Supply :
1
Ambient Temperature :
-
Electrical Rating :
G
Certifications :
S
Description

Phoenix Contact MINI MCR-2-UNI-UI-2UI | 2-Channel Analog Isolator, 24V DC

Phoenix Contact MINI MCR-2-UNI-UI-2UI analog signal conditioner. 1-in 2-out, 4-way isolation, 0-20mA/0-10V input/output, 24V DC supply, 6.2mm width.

Product Overview

The Phoenix Contact MINI MCR-2-UNI-UI-2UI​ (Order No. 2905026) is a universal 2-channel analog signal conditioner​ from the MINI Analog Pro​ family. It provides 4-way electrical isolation​ (input, output 1, output 2, power supply) and functions as a signal duplicator, isolator, and converter. With a compact width of only 6.2 mm, it conditions standard analog signals (0-20 mA, 0-10 V, etc.) for PLC and control system interfaces. Configuration is flexible via DIP switches​ or software (NFC/USB).

Technical Specifications (Electrical & Signal)

Parameter

Specification

Product Family​

MINI Analog Pro

Order Number​

2905026​

Function​

Analog Signal Conditioner / Isolator / Duplicator

Channels​

1 Input / 2 Outputs​ (Independent)

Supply Voltage​

24 V DC​ (Range: 9.6 ... 30 V DC)

Input Signals​

0/4-20 mA, 0-10 V, 0-5 V, 1-5 V, 0-24 mA (Software)

Output Signals​

0/4-20 mA, 0-10 V, 0-5 V, 1-5 V (Per Channel)

Max. Transmission Error​

≤ 0.05 %​ (of full scale)

Isolation​

4-way Reinforced Isolation​ (3 kV AC)

Configuration​

DIP Switch, Software (NFC / USB)

Technical Specifications (Mechanical & Environmental)

Parameter

Specification

Mounting​

DIN Rail (35 mm)

Dimensions (W x H x D)​

6.2 x 109.8 x 119.2 mm​

Connection​

Screw Terminal (Plug-in)

Wire Cross-Section​

0.14 ... 2.5 mm²

Housing Material​

PBT (Gray)

Protection Rating​

IP20​

Operating Temperature​

-40 °C ... +70 °C​

Standards​

IEC/EN 61010-1, CE, ATEX (Zone 2)

Key Features

  • High Density:​ Ultra-slim 6.2 mm width saves significant DIN rail space in control cabinets.

  • Flexible I/O:​ Handles both current and voltage signals on input and outputs; outputs can be set independently (e.g., one 4-20mA, one 0-10V).

  • Diagnostics:​ Features NFC interface for wireless parameter setting and status monitoring via smartphone app.

Applications

  • Signal isolation and duplication from sensors (PT100, pressure transducers) to PLC analog cards

  • Ground loop elimination and noise suppression in industrial automation

  • Signal conversion (e.g., 0-10V to 4-20mA) for legacy system integration

Phoenix Contact MINI MCR-2-UNI-UI-2UI | 2-Channel Analog Isolator, 24V DC
