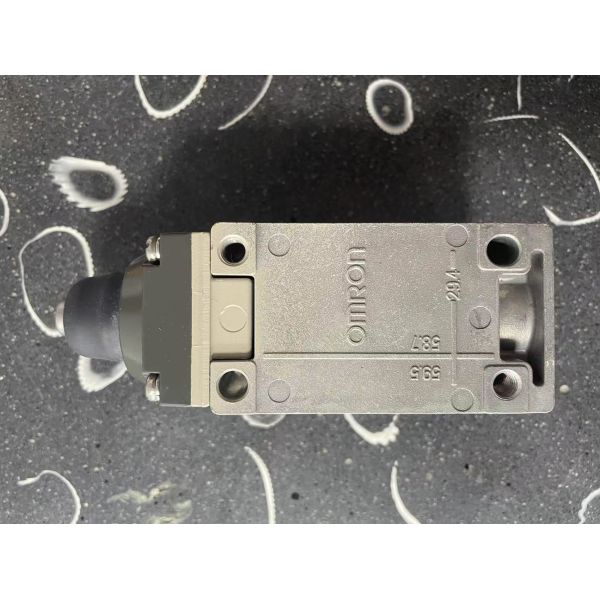

OMRON D4A-3109N | Top Plunger Limit Switch, SPDT 10A, IP67
OMRON D4A-3109N | Top Plunger Limit Switch, SPDT 10A, IP67
OMRON D4A-3109N | Top Plunger Limit Switch, SPDT 10A, IP67
OMRON D4A-3109N | Top Plunger Limit Switch, SPDT 10A, IP67
OMRON D4A-3109N | Top Plunger Limit Switch, SPDT 10A, IP67
OMRON D4A-3109N | Top Plunger Limit Switch, SPDT 10A, IP67
Specifications
Certification :
ATEX
Certifications :
S
Supply Ability :
100pcs per month
Ambient Temperature :
-
Brand Name :
OMRON
Power Supply :
1
Packaging Details :
carton
Delivery Time :
Negotiable
Place of Origin :
JP
Payment Terms :
T/T,XT,ALIPAY
MOQ :
1
Price :
Negotiable
Electrical Rating :
G
Model Number :
D4A-3109N
Description

OMRON D4A-3109N | Top Plunger Limit Switch, SPDT 10A, IP67

OMRON D4A-3109N general-purpose limit switch. Top plunger actuator, SPDT double-break contacts, 10A 600V AC rating, IP67 sealed, G1/2 conduit.

Product Overview

The OMRON D4A-3109N​ is a heavy-duty industrial limit switch​ from the D4A series. It features a top plunger actuator​ and SPDT double-break snap-action contacts​ rated for 10A at 600V AC. Designed for harsh environments, it offers IP67 sealing​ against dust and water ingress and is built for high mechanical durability in machine automation and material handling applications.

Technical Specifications (Electrical & Contact)

Parameter

Specification

Model Number​

D4A-3109N​

Contact Configuration​

SPDT​ (1NO+1NC), Double-break

Contact Rating​

10 A​ @ 600 V AC (Resistive)

Max. Voltage​

600 V AC / 250 V DC

Electrical Life​

1,000,000 cycles (at rated load)

Initial Contact Resistance​

≤ 25 mΩ

Insulation Resistance​

≥ 100 MΩ (500 V DC)

Technical Specifications (Mechanical & Environmental)

Parameter

Specification

Actuator Type​

Top Plunger​ (Standard)

Operating Force​

~17.7 N (Plunger)

Pretravel​

1.6 mm

Mechanical Life​

50,000,000 cycles (min.)

Enclosure Rating​

IP67​ (Dust-tight, Waterproof)

Conduit Entry​

G 1/2​ (2x)

Operating Temperature​

-20 °C to +100 °C​ (Standard)

Housing Material​

Metal (Zinc Die Cast)

Key Features

  • Rugged Construction:​ Zinc die-cast body and stainless steel plunger for high shock resistance.

  • High Capacity:​ 10A switching capability eliminates the need for interposing relays in many motor control circuits.

  • Environmental Sealing:​ IP67 rating ensures reliable operation in wet and dusty industrial conditions.

  • Double-Break Contacts:​ Two contact points per circuit provide higher reliability and breaking capacity.

Applications

  • Machine Tools:​ Position detection and end-of-travel limits for CNC equipment.

  • Material Handling:​ Conveyor line object detection and pallet positioning.

  • Packaging Machinery:​ Safety door interlocks and cam-operated sequencing.
