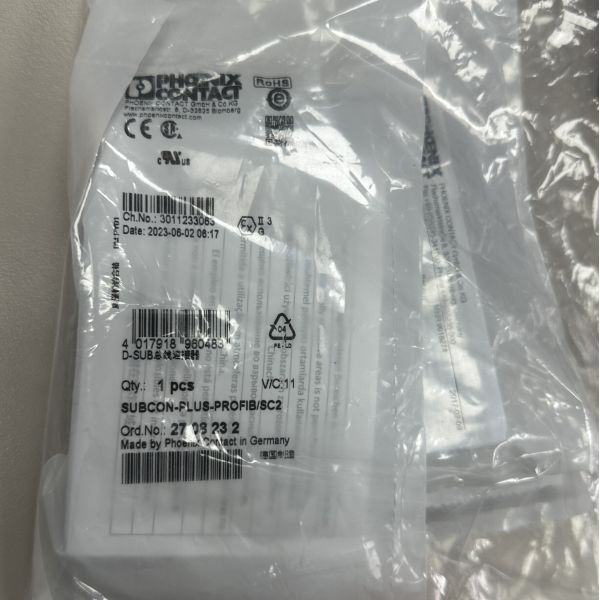

Phoenix Contact SUBCON-PLUS-PROFIB/SC2 | 9-pin D-Sub PROFIBUS Connector with Terminator
Phoenix Contact SUBCON-PLUS-PROFIB/SC2 | 9-pin D-Sub PROFIBUS Connector with Terminator
Phoenix Contact SUBCON-PLUS-PROFIB/SC2 | 9-pin D-Sub PROFIBUS Connector with Terminator
Phoenix Contact SUBCON-PLUS-PROFIB/SC2 | 9-pin D-Sub PROFIBUS Connector with Terminator
Specifications
Brand Name :
Phoenix Contact
Certification :
ATEX
Place of Origin :
DE
Payment Terms :
T/T,XT,ALIPAY
Delivery Time :
Negotiable
Power Supply :
1
Certifications :
S
Model Number :
SUBCON-PLUS-PROFIBSC2
MOQ :
1
Price :
Negotiable
Supply Ability :
100pcs per month
Packaging Details :
carton
Ambient Temperature :
-
Electrical Rating :
G
Description

Phoenix Contact SUBCON-PLUS-PROFIB/SC2 | 9-pin D-Sub PROFIBUS Connector with Terminator

Phoenix Contact SUBCON-PLUS-PROFIB/SC2. 9-pin male D-Sub connector for PROFIBUS DP, 12 Mbps, integrated terminal resistor switch, screw termination.

Product Overview

The Phoenix Contact SUBCON-PLUS-PROFIB/SC2​ (Order No. 2708232) is a 9-pin male D-Sub connector​ designed for PROFIBUS DP​ networks. It features a 35° angled cable entry​ that can be rotated for left or right routing, screw-clamp terminals​ for reliable connection of bus cables, and a built-in sliding switch​ to activate the terminating resistor​ (390Ω / 220Ω network). The metal housing provides EMC shielding, ensuring signal integrity at speeds up to 12 Mbps in industrial environments.

Technical Specifications (Electrical & Bus)

Parameter

Specification

Order Number​

2708232​

Connector Type​

9-pin D-Sub Male (Plug)​

Bus System​

PROFIBUS DP​

Max. Data Rate​

12 Mbps​

Terminating Resistor​

390 Ω / 220 Ω​ (Switchable)

Pin Assignment​

3, 5, 6, 8 (Data+, Data-, DGND, VP)

Nominal Voltage​

5 V DC

Nominal Current​

100 mA

Contact Material​

Metal-plated

Shielding​

Metal Housing for EMC

Technical Specifications (Mechanical & Environmental)

Parameter

Specification

Terminal Type​

Screw Clamp​

Cable Entry​

35° Angled​ (Rotatable)

Conductor Cross-Section​

0.14 mm² - 1.5 mm² (Solid)
0.14 mm² - 1.0 mm² (Flexible)

Stripping Length​

5 mm

Housing Material​

ABS / Metal

Dimensions (W x H x D)​

16.6 mm x 39.4 mm x 58 mm​

IP Rating​

IP40​

Operating Temperature​

-20 °C ... +75 °C​

Vibration Resistance​

5g (10-150 Hz)

Shock Resistance​

15g (11 ms)

MTTF​

> 1500 years (40°C)

Key Features

  • Integrated Termination:​ Built-in switch for the terminating resistor simplifies network setup and eliminates the need for external terminators.

  • Rotatable Cable Entry:​ The 35° angled entry can be rotated to optimize cable routing in tight control panel spaces.

  • Screw Clamp Reliability:​ Provides a gas-tight, vibration-resistant connection for bus cables without requiring special tools.

  • PROFIBUS Compliant:​ Designed for use in PROFIBUS DP networks up to 12 Mbps, compatible with standard PROFIBUS cables.

Applications

  • Connecting PLCs, drives, and I/O modules to PROFIBUS DP networks

  • End-of-line termination in machine control systems

  • Factory automation and process control cabinets
