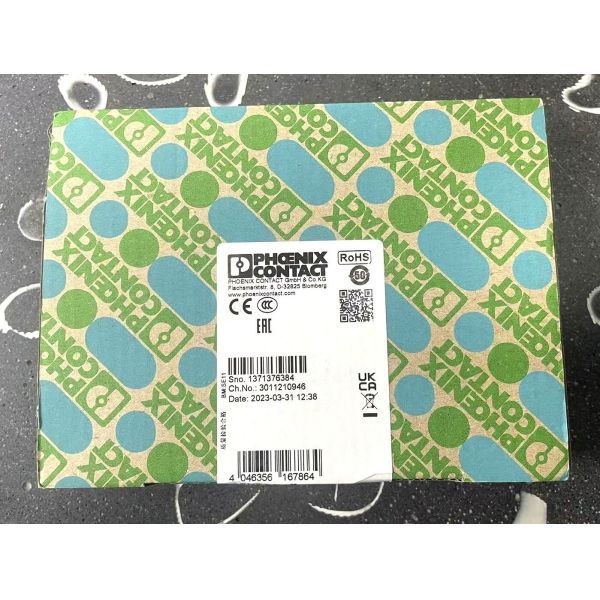

Phoenix Contact ELR W3-24DC500AC-2I | 24V DC Controlled Hybrid Motor Starter
Phoenix Contact ELR W3-24DC500AC-2I | 24V DC Controlled Hybrid Motor Starter
Phoenix Contact ELR W3-24DC500AC-2I | 24V DC Controlled Hybrid Motor Starter
Phoenix Contact ELR W3-24DC500AC-2I | 24V DC Controlled Hybrid Motor Starter
Specifications
Brand Name :
Phoenix Contact
Supply Ability :
100pcs per month
Electrical Rating :
G
Power Supply :
1
Certification :
ATEX
Ambient Temperature :
-
Model Number :
ELR W3-24DC500AC-2I
Certifications :
S
MOQ :
1
Price :
Negotiable
Packaging Details :
carton
Payment Terms :
T/T,XT,ALIPAY
Delivery Time :
Negotiable
Place of Origin :
DE
Description

Phoenix Contact ELR W3-24DC500AC-2I | 24V DC Controlled Hybrid Motor Starter

Phoenix Contact ELR W3-24DC500AC-2I hybrid motor starter. 24V DC control, 500V AC 3-phase load, 2.4A rating, reversing function, SIL 3/PL e safety.

Product Overview

The Phoenix Contact ELR W3-24DC500AC-2I​ is a hybrid motor starter​ from the CONTACTRON ELR series. It functions as a solid-state reversing contactor for controlling three-phase AC motors​ up to 500 V AC​ and 2.4 A. The device is controlled by a 24 V DC​ signal and integrates motor protection, an emergency stop function​ (compliant with SIL 3 / PL e), and a signal contact. It is designed for DIN rail mounting​ and features screw connections for both control and load circuits.

Technical Specifications (Electrical)

Parameter

Specification

Product Type​

Hybrid Motor Starter (Reversing Contactor)

Control Supply Voltage​

24 V DC​ (19.2 ... 30 V DC range)

Load Circuit Voltage​

500 V AC​ (42 ... 550 V AC range)

Rated Operating Current​

2.4 A​ (AC-51, AC-53a)

Load Current Range​

180 mA ... 2.4 A

Switching Frequency​

≤ 2 Hz

Safety Integrity​

SIL 3​ (IEC 61508), PL e​ (ISO 13849)

Overload Protection​

Class 10A (IEC 60947-4-2)

Auxiliary Contact​

1 CO (3 A / 230 V AC)

Technical Specifications (Mechanical & Environmental)

Parameter

Specification

Mounting​

35 mm DIN Rail​ (vertical)

Dimensions (W x H x D)​

22.5 x 107 x 114 mm​

Connection Type​

Screw Clamp​ (M3, 0.2 - 2.5 mm²)

Degree of Protection​

IP20​

Operating Temperature​

-25 °C ... +70 °C​

Storage Temperature​

-40 °C ... +80 °C

Housing Material​

UL 94 V-0

Standards​

IEC/EN 60947-4-2, ATEX option

Key Features

  • Reversing Function:​ Controls motor direction (forward/reverse) with integrated electrical interlock to prevent short circuits.

  • Integrated Safety:​ Built-in emergency stop functionality and motor protection meeting high safety standards (SIL 3).

  • Solid-State Reliability:​ No moving parts in the power circuit, resulting in long service life and silent operation.

  • Visual Diagnostics:​ LED indicators for status, operating voltage, and error/fault conditions.

Applications

  • Reversing motor control for conveyor belts and pumps

  • Machine tool motor starters

  • Safety-related control systems requiring SIL 3/PL e compliance
