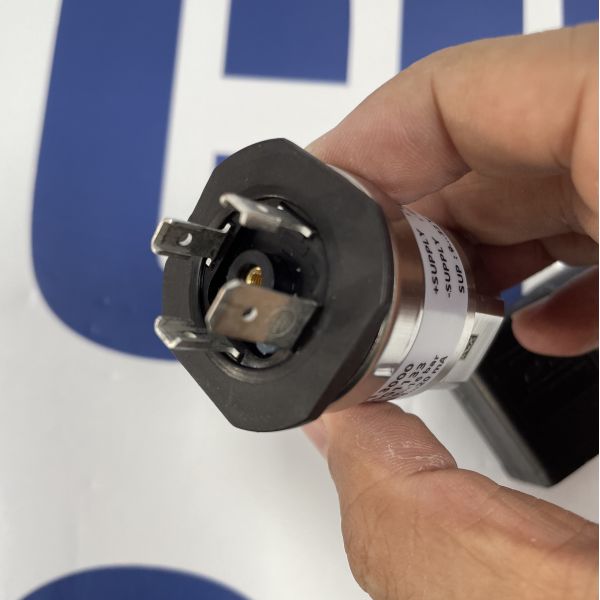

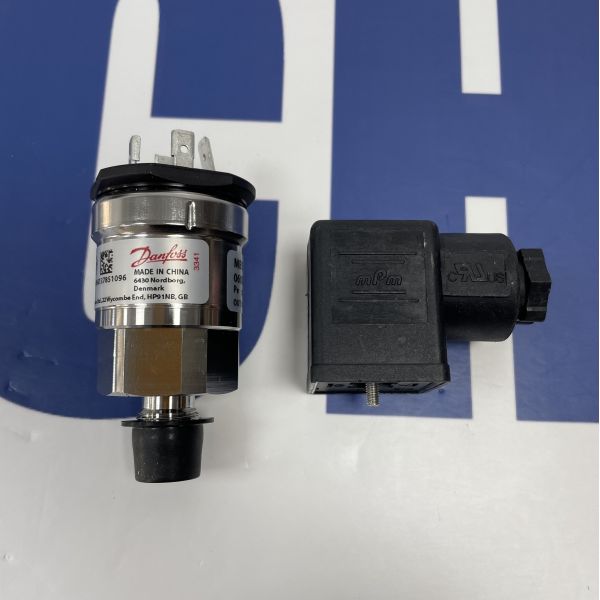

Danfoss MBS 3000 | Industrial Pressure Transmitter | 4-20mA, 0-600 bar
Danfoss MBS 3000 | Industrial Pressure Transmitter | 4-20mA, 0-600 bar
Danfoss MBS 3000 | Industrial Pressure Transmitter | 4-20mA, 0-600 bar
Danfoss MBS 3000 | Industrial Pressure Transmitter | 4-20mA, 0-600 bar
Specifications
Place of Origin :
DK
Payment Terms :
T/T,XT,ALIPAY
MOQ :
1
Electrical Rating :
G
Power Supply :
1
Certifications :
S
Brand Name :
Danfoss
Certification :
ATEX
Ambient Temperature :
-
Model Number :
MBS 3000
Supply Ability :
100pcs per month
Delivery Time :
Negotiable
Packaging Details :
carton
Price :
Negotiable
Description

Danfoss MBS 3000 | Industrial Pressure Transmitter | 4-20mA, 0-600 bar

Danfoss MBS 3000 series industrial pressure transmitters. Stainless steel AISI 316L, 0.5% FS accuracy, 4-20mA/0-10V outputs, IP65/IP67, for HVAC, hydraulics & harsh environments.

Product Overview

The Danfoss MBS 3000​ is a versatile family of industrial pressure transmitters​ designed for reliable measurement in harsh conditions. Built with AISI 316L stainless steel​ wetted parts, it offers high resistance to vibration, shock, and aggressive media. The series covers a wide range from 0–1 bar to 0–600 bar​ in gauge, absolute, and sealed gauge references, with standard analog outputs (4–20 mA, 0–10 V) for seamless PLC integration.

Technical Specifications (Electrical & Performance)

Parameter

Specification

Series / Family​

MBS 3000​ (General Purpose Pressure Transmitter)

Pressure Ranges​

0...1 bar​ up to 0...600 bar​ (Gauge, Absolute, Sealed Gauge)

Supply Voltage​

9...32 V DC​ (Reverse Polarity Protected)

Output Signals​

4–20 mA​ (2-wire), 0–10 V, 0–5 V, 1–5 V, 1–6 V, 1–10 V

Accuracy​

≤ ±0.5 % FS​ (Typical, BFSL)

Response Time​

≤ 4 ms​

Long-Term Stability​

< ±0.25 % FS / year

Technical Specifications (Mechanical & Environmental)

Parameter

Specification

Wetted Parts​

AISI 316L Stainless Steel​ (Fully Welded Design)

Pressure Connection​

G 1/4"​ (Standard), G 1/2", M20x1.5, 1/4" NPT

Electrical Connection​

Pg 9 / M12​ (4-pin) / 2m Cable​ (IP67/68)

Protection Rating​

IP65​ (Housing), IP67/IP68​ (Cable Versions)

Operating Temperature​

-40 °C ... +85 °C​ (Medium & Ambient)

Compensated Range​

0 °C ... 80 °C

EMC / EMI​

EN 61000-6-2, EN 61000-6-3

Key Features

  • Robust Industrial Design:​ The fully welded stainless steel sensor element provides excellent resistance to cavitation, water hammer, and pressure peaks, ensuring longevity in demanding applications like hydraulics and water treatment.

  • High Flexibility:​ Available in multiple pressure references (G, A), electrical connections (M12, cable, angular), and output signals, allowing precise matching to system requirements without over-specifying.

  • Enhanced Safety:​ Many variants carry ATEX Ex ec IIA T4 Gc​ certification for use in hazardous areas (Zone 2), making them suitable for oil & gas and chemical processes.

  • Easy Integration:​ Standard G 1/4"​ pressure ports and M12 connectors​ enable quick installation on manifolds, pumps, and valve blocks without adapters.

Applications

  • HVAC & Building Services:​ Chiller pressure monitoring, pump protection, and water system control.

  • Industrial Hydraulics:​ Pressure feedback in hydraulic power units, presses, and injection molding machines.

  • Water & Wastewater:​ Pump control, filter monitoring, and level measurement via pressure in tanks and wells.

  • Mobile Machinery:​ Compact and vibration-resistant design for construction and agricultural equipment.

Danfoss MBS 3000 | Industrial Pressure Transmitter | 4-20mA, 0-600 bar
