Description
Danfoss EV220B 40 | Pilot-Operated 2/2 Solenoid Valve, G1½", 24/110/230V AC/DC
Danfoss EV220B 40 (EV220B-40B0400) pilot-operated 2/2-way solenoid valve. DN40 (G1½"), 0.3-16 bar, brass body, NBR/EPDM/FKM seal options, for water, air, oil.

Product Overview

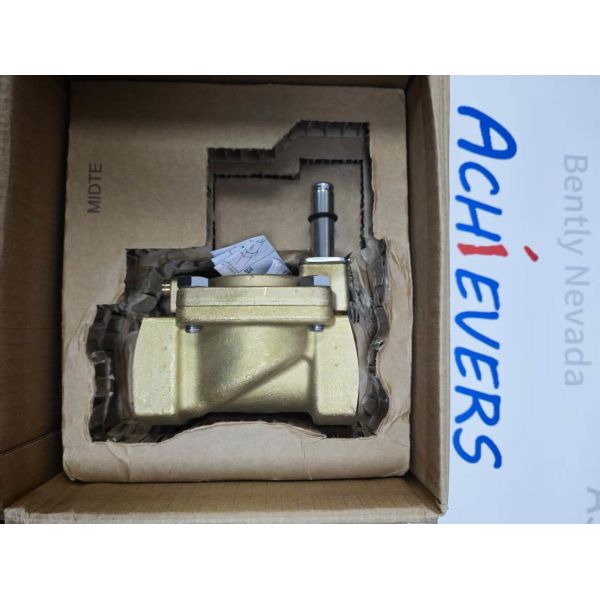

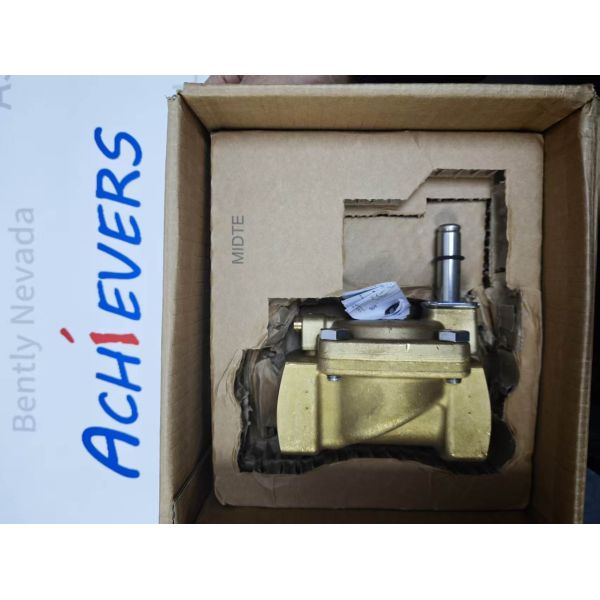

The Danfoss EV220B 40​ (typically ordered as EV220B-40B0400​ with coil specified separately) is a pilot-operated 2/2-way (normally closed) solenoid valve​ from the EV220B series, designed for automatic shut-off or flow control of neutral and slightly aggressive media. It features a DN40 (1½") BSP threaded connection, a brass body, and is available with NBR, EPDM, or FKM (Viton) seals​ depending on the medium. The valve requires a minimum pressure differential of 0.3 bar​ to shift open (pilot-assisted) and is suitable for water, compressed air, oils, and low-viscosity fluids in HVAC, irrigation, and industrial process lines.

Technical Specifications (Performance & Media)

Parameter
Specification
Series / Model​
EV220B 40​ (Type: EV220B-40B0400 base valve)
Function​
2/2-way, Pilot-Operated, Normally Closed (NC)​
Port Size (DN)​
DN 40​ — G 1½" BSP (Female Thread)​
Orifice / Kv Value​
Kv ≈ 30 m³/h​ (Check exact orifice ø — typically 40 mm)
Min. Operating Pressure (Δp)​
0.3 bar (30 kPa)​ — must have pressure differential to open
Max. Operating Pressure​
16 bar (PN 16)​ — some coil/seal combos may limit to 10 bar
Media Temperature Range​
-20 … +90 °C​ (NBR seals) / -20 … +140 °C​ (EPDM) / -20 … +130 °C​ (FKM)
Ambient Temperature (Coil)​
-10 … +50 °C (AC coils), -10 … +60 °C (DC coils)
Suitable Media​
Water, Air, Inert Gases, Light Oils, Glycol ≤ 30% (viscosity < 40 cSt)

Technical Specifications (Mechanical & Electrical)

Parameter
Specification
Body Material​
Brass (Dezincification-resistant alloy on later versions)​
Seal Material Options​
NBR (Nitrile)​ / EPDM​ / FKM (Viton®)​ — ordered via suffix
Internal Parts​
Stainless Steel (Moving Core, Spring, Pilot Orifice)
Coil Requirement​
Ordered Separately​ — BF or BW series (e.g., 018F6758 for 230V AC, 018F6701 for 24V DC)
Connection Type​
Female G 1½" BSP Thread​ (ISO 228/1)
Mounting Position​
Recommended vertical (coil up); horizontal acceptable
Protection (with Coil + Connector)​
IP65​ (with molded coil + DIN 43650 connector)
Approvals​
CE, UL, cUL, WRAS (NBR version for potable water), ACS

Key Features

  • Pilot-Operated — High Flow in Compact Body:​ Uses line pressure to assist opening, allowing large Kv (≈30 m³/h) with a small coil — energy-efficient vs. direct-lift equivalents.
  • Interchangeable Seals:​ NBR standard for water/air; EPDM for hot water/steam traces; FKM for oils/solvents — select by application.
  • Modular Coil System:​ Coil (voltage/wattage) ordered separately — one valve body serves multiple voltages (24V DC, 24V AC, 110V AC, 230V AC).
  • WRAS Approval (NBR Version):​ Suitable for potable water systems in the UK/EU (check local certification requirements).

Applications

  • HVAC & Building Services:​ Chilled/hot water zone control, boiler feed line shut-off, cooling tower bypass.
  • Irrigation & Agriculture:​ Main line solenoid shut-off for large-area sprinkler systems.
  • Industrial Process:​ Compressed air main isolation, coolant flow control, detergent dosing (with FKM seals).
  • Washdown & CIP:​ With EPDM seals — temperature-rated for clean-in-place rinse cycles (≤90–140°C depending on seal).
Note: The EV220B is pilot-operated and requires minimum 0.3 bar pressure differential​ — it will NOT open on zero differential (tank gravity drain with no backpressure). For zero-minimum-differential (direct lift) at DN40, see Danfoss EV210B​ or EV310B​ series (typically smaller DN). Coil and seal material must be specified at time of order — example complete part: EV220B-40B0400 (body) + 018F6758 (230V AC 8W BF coil) + DIN connector.
