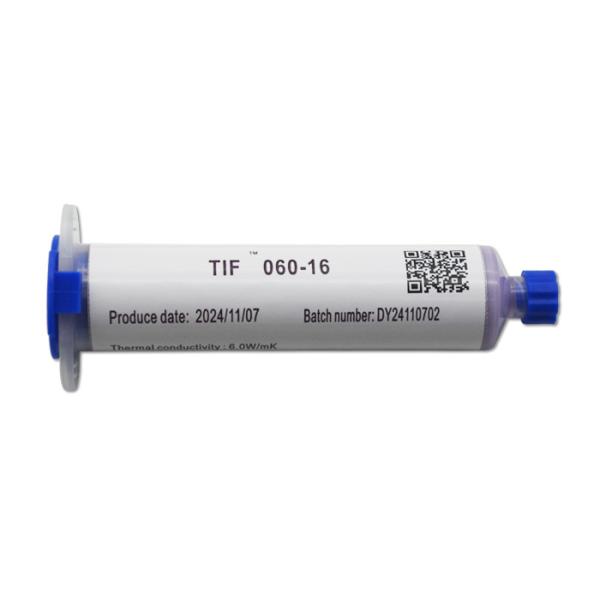

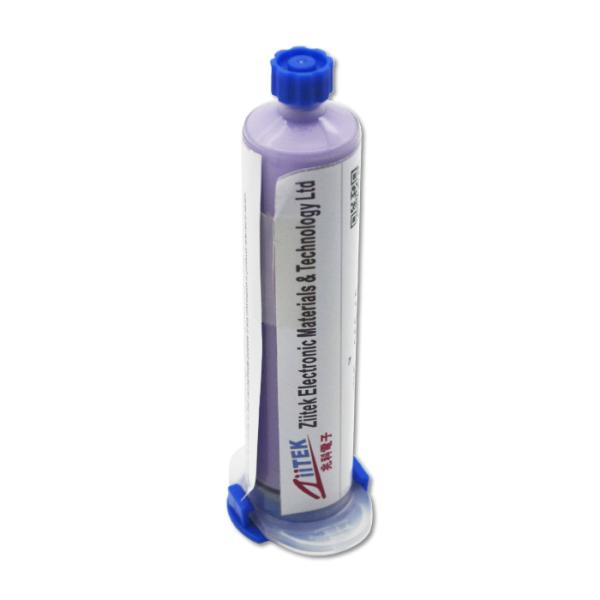

TIF060-16 Purple Silicone Thermal Gel For CPU
TIF060-16 Purple Silicone Thermal Gel For CPU
TIF060-16 Purple Silicone Thermal Gel For CPU
TIF060-16 Purple Silicone Thermal Gel For CPU
Specifications
Brand Name :
Ziitek
Model Number :
TIF060-16
Certification :
RoHS
Place of Origin :
Vietnam
MOQ :
1000tube
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Supply Ability :
1000000 tube/month
Delivery Time :
3-5 work days
Packaging Details :
300cc/tube
Products name :
TIF060-16 TIF060-16 Purple Silicone Thermal Gel For CPU
Materail :
Ceramic Filled Silicon Material
Color :
Purple
Application :
CPU Electronic Component Gap Filling
Specific Gravity :
3.4g/cm³
Continuous Use Temperature :
-45~200℃
Keywords :
Thermal conductive gel
Thermal conductivity :
6.0W/mK
Description

TIF060-16 Purple Silicone Thermal Gel For CPU

Prodcuts description

TIF®060-16 is a soft silicone gel-based gap filler pad, formulated with a special blend of fillers to provide both excellent thermal conductivity and superior softness. Compared to conventional thermal greases, TIF®060-16 has a higher viscosity, which effectively prevents filler separation from the silicone matrix and reduces filler migration, helping maintain consistent thermal performance. It is applied in a similar manner to thermal grease and is suitable for commercial dispensing or automated equipment. Typical applications include flip-chip microprocessors, PPGAs, micro BGA packages, BGA packages, DSP chips, circular silicon chips, LED lighting, and other high-power electronic components.

Feature


> Thermal conductivity: 6.0W/mK

> Soft, very low compression

> Low thermal inpedance

> Operate automaticly
> Proven long-term reliability

Application


> Mass storage devices
> Automotive electronics
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes

TIF®060-16 Typical Properties
Property Value Test method
Color Purple Visual
Construction & Composition Ceramic filled silicon material -
Flow Rate(g/min) 36 Ziitek Test Method (30 cc syringe/ 2.5 mm orifice/ 90 psi)
Density(g/cc) 3.40g/c ASTM D297
Thermal conductivity 6.0W/mK ASTM D5470
Thermal Impedance @10psi (℃.in²w) 0.071 ASTM D5470
Thermal Impedance @50psi (℃.in²w) 0.055 ASTM D5470
Recommended Operating Temp -45 ~200°C Ziitek Test Method
Dielectric Strength(V/mm) ≥4000 ASTM D149
Bond Line Thickness(mm) 0.2 Ziitek Test Mothod
Flame Rating V-0 UL 94
Shelf Life 12 months -

Product Specification:
30 cc/pcs, 98 pcs/box; 300 cc/pcs, 6 pcs/box.
Custom packaging available for automation use. Please contact us for confirming.
If you want to know our thermal products, please visit our website.

TIF060-16 Purple Silicone Thermal Gel For CPU

Company Profile

With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.

Q&A

Q: Are you trading company or manufacturer ?

A: We are manufacturer in Vietnam.

Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.

Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
