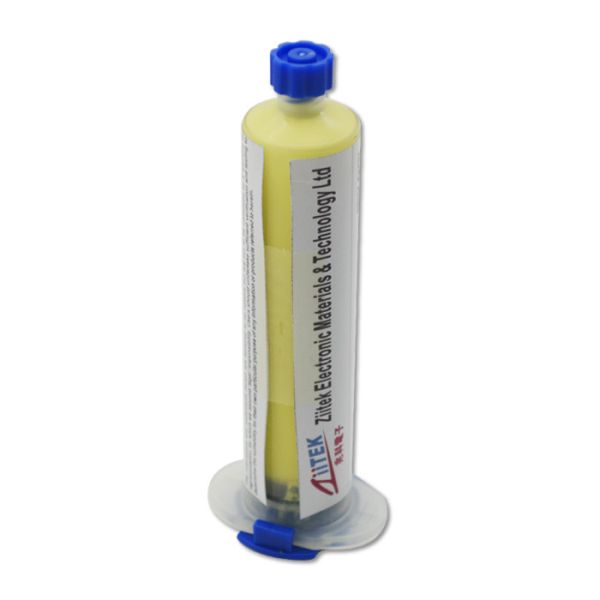

TIF020-19 Silicone Putty Thermal Gap Filler Thermal Conductive Gel
TIF020-19 Silicone Putty Thermal Gap Filler Thermal Conductive Gel
TIF020-19 Silicone Putty Thermal Gap Filler Thermal Conductive Gel
TIF020-19 Silicone Putty Thermal Gap Filler Thermal Conductive Gel
Specifications
Brand Name :
Ziitek
Model Number :
TIF020-19
Certification :
RoHS
Place of Origin :
Vietnam
MOQ :
1000tube
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Supply Ability :
1000000 tube/month
Delivery Time :
3-5 work days
Packaging Details :
300cc/tube
Products name :
TIF020-19 Silicone Putty Thermal Gap Filler Thermal Conductive Gel
Materail :
Ceramic Filled Silicon Material
Color :
Yellow
Specific Gravity :
2.6g/cm³
Thermal conductivity :
2.0W/mK
Continuous Use Temperature :
-45~200℃
Keywords :
Thermal conductive gel
Description

TIF020-19 Silicone Putty Thermal Gap Filler Thermal Conductive Gel

TIF020-19 is a soft silicone putty thermal gap filler,which blend with exclusive formula,that offer superior thermal performance, and compressibility. Due to TIF020-19 is made by high vicosity silicon oil ,that can prevent thermal formula seprate from it. Besides ,compared with traditionally thermal pad, it can control bonded shifiting issue much better.


TIF020-19 operation mold is simliar as grease ,such as silkprint and screen print or automatic injected facility. TIF020-19 can be applied on chip micro processor,PPGAs,Micro BGA package,BGA package,DSP chip,LED lighting and other high power electric component.

TIF020-19 Silicone Putty Thermal Gap Filler Thermal Conductive Gel

Feature
> Thermal conductivity: 2.0W/mK

> Soft, very low compression

> Low thermal inpedance

> Operate automaticly
> Proven long-term reliability

Application
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components
> IT infrastructure
> GPS navigation and other portable devices
> CD-Rom, DVD-Rom cooling

TIF®020-19 Typical Properties
Property Value Test method
Color Yellow Visual
Construction & Composition Ceramic filled silicon material -
Flow Rate(g/min) 90 Ziitek Test Method (30 cc syringe/ 2.5 mm orifice/ 90 psi)
Specific Gravity 2.6g/c ASTM D297
Thermal conductivity 2.0W/mK ISO 22007-2
Impedance @10psi (℃.in²w) 0.143 ASTM D5470
Impedance @50psi (℃.in²w) 0.114 ASTM D5470
Continuous Use Temperature -45 ~200°C ******
Dielectric Strength(V/mm) ≥4000 ISO 22007-2
Bond Line Thickness(mm) 0.1 Ziitek est Mothod
Flame Rating V-0 UL 94
Shelf Life 12 months -

Packing details

30 cc/pc, 98 pc/box;

300 cc/pc , 6 pc/box

We offer the custom packaged in syringes for automated despensing applications.

Please contact us for confirming.

TIF020-19 Silicone Putty Thermal Gap Filler Thermal Conductive Gel

Company Profile

With professional R&D capabilities and over 19 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.

Q&A

Q: Are you trading company or manufacturer ?

A: We are manufacturer in Vietnam.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
