TIF035-05 Thermal Conductive Gel Silicone Heat Transfer Gel For Heat Sink Dissipate Heat
TIF035-05 Thermal Conductive Gel Silicone Heat Transfer Gel For Heat Sink Dissipate Heat
TIF035-05 Thermal Conductive Gel Silicone Heat Transfer Gel For Heat Sink Dissipate Heat
TIF035-05 Thermal Conductive Gel Silicone Heat Transfer Gel For Heat Sink Dissipate Heat
Specifications
Brand Name :
Ziitek
Model Number :
TIF035-05
Certification :
RoHS
Place of Origin :
Vietnam
MOQ :
1000tube
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Supply Ability :
1000000 tube/month
Delivery Time :
3-5 work days
Packaging Details :
300cc/tube
Products name :
Thermal Conductive Gel Silicone Heat Transfer Gel For Heat Sink Dissipate Heat
Materail :
Ceramic Filled Silicon Material
Keywords :
Thermal conductive gel
Color :
Blue
Density :
3.25g/cm³
Thermal conductivity :
3.5W/mK
Continuous Use Temperature :
-45~200℃
Application :
Heat Sink Dissipate Heat
Description

Thermal Conductive Gel Silicone Heat Transfer Gel For Heat Sink Dissipate Heat

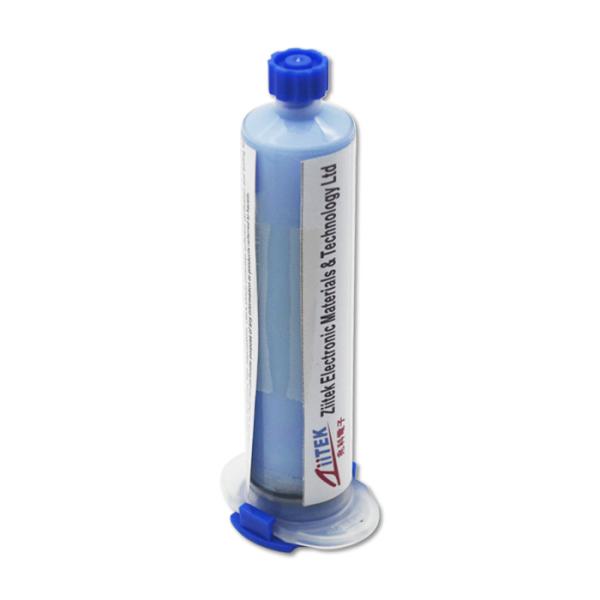

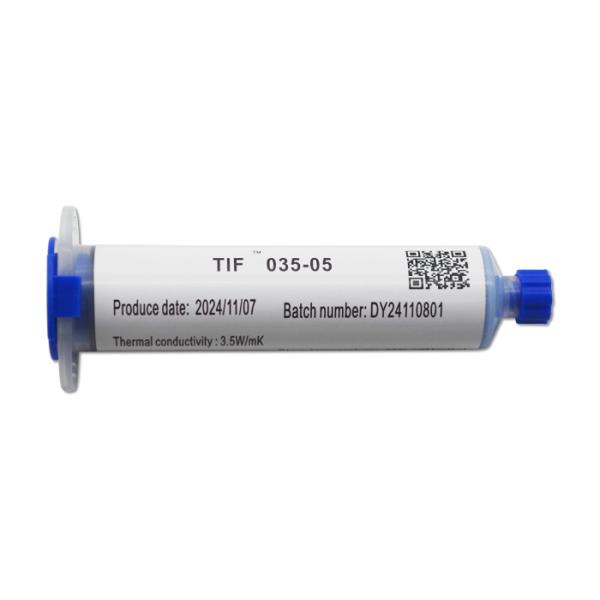

TIF®035-05 is a soft silicone gel-based gap filer pad, formulated with a special blend of filers to provide both excellent thermal conductivity and superior softness. Compared to conventional thermal greases, TIF®035-05 has a higher viscosity, which effectively prevents filler separation from the silicone matrix and reduces filler migration, helping maintain consistent thermal performance. It is applied in a similar manner to thermal grease and is suitable for commercial dispensing or automated equipment. Typical applications include flip-chip microprocessors, PPGAs, micro BGA packages, BGA packages, DSP chips, circular Isilicon chips, LED lighting, and other high-power electronic components.

Feature

>Thermal conductivity: 3.0 W/mK
>Soft, very low compression
>Low thermal impedance
>Operate automatically
>Proven long-term reliability

Application

>Heat-sink & frame
>LED backlight module,LED lighting
>High speed hardware driver
>Micro heat pipe
>Vihicel enginee controller
>Telecom industry
>Semiconductor automatic laboratory equipment

TIF®035-05​ Typical Properties
Property Value Test method
Color Blue Visual
Construction & Composition Ceramic filled silicon material -
Flow Rate(g/min) 30 Ziitek Test Method (30 cc syringe/ 2.5 mm orifice/ 90 psi)
Density(g/cc) 3.25g/c ASTM D297
Thermal conductivity 3.5W/mK ASTM D5470
Thermal Impedance @10psi (℃.in²w) 0.08 ASTM D5470
Thermal Impedance @50psi (℃.in²w) 0.075 ASTM D5470
Recommended Operating Temp -45 ~200°C Ziitek Test Method
Dielectric Strength(V/mm) ≥4000 ASTM D149
Bond Line Thickness(mm) 0.1 Ziitek Test Mothod
Flame Rating V-0 UL 94
Shelf Life 12 months -

Product Specification:

30 cc/pcs, 98 pcs/box; 300 cc/pcs, 6 pcs/box.
Custom packaging available for automation use. Please contact us for confirming.
If you want to know our thermal products, please visit our website.

TIF035-05 Thermal Conductive Gel Silicone Heat Transfer Gel For Heat Sink Dissipate Heat

Company Profile

With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.

Independent R&D team

Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us

4. We will reply you as soon as possible with Email or online

Q&A

Q: Are you trading company or manufacturer ?

A: We are manufacturer in Vietnam.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
