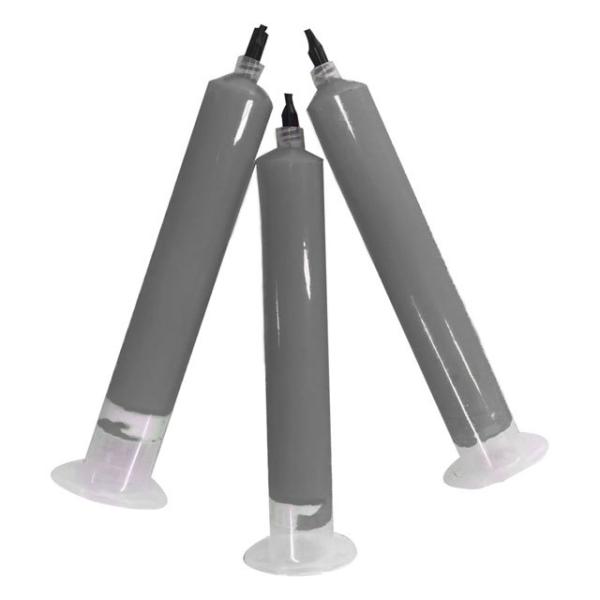

TIF045-11 High Thermal 4.5W Silicone Thermal Conductive Gel For Micro Heat Pipe
TIF045-11 High Thermal 4.5W Silicone Thermal Conductive Gel For Micro Heat Pipe
TIF045-11 High Thermal 4.5W Silicone Thermal Conductive Gel For Micro Heat Pipe
TIF045-11 High Thermal 4.5W Silicone Thermal Conductive Gel For Micro Heat Pipe
Specifications
Brand Name :
Ziitek
Model Number :
TIF045-01
Certification :
RoHS
Place of Origin :
Vietnam
MOQ :
1000tube
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Supply Ability :
1000000 tube/month
Delivery Time :
3-5 work days
Packaging Details :
300cc/tube
Products name :
TIF045-11 High Thermal 4.5W Silicone Thermal Conductive Gel For Micro Heat Pipe
Thermal conductivity :
4.5W/mK
Keywords :
Thermal gel
Application :
Micro Heat Pipe
Specific Gravity :
3.2g/cm³
Continuous Use Temperature :
-45~200℃
Materail :
Ceramic Filled Silicon Material
Color :
Gray
Shelf Life :
12 months
Description

TIF045-11 High Thermal 4.5W Silicone Thermal Conductive Gel For Micro Heat Pipe

Products description

TIF045-11 is a soft silicone gel-based gap filler pad,formulated with a special blend of fillers to provide both excellent thermal conductivity and superior softness. Compared to conventional thermal greases, TIF045-11 has a higher viscosity, which effectively prevents filer separation from the silicone matrix and reduces filler migration, helping maintain consistent thermal performance. It is applied in a similar manner to thermal grease and is suitable for commercial dispensing or automated equipment. Typical applications include flip-chip microprocessors, PPGAs, micro BGA packages, BGA packages, DSP chips, circular silicon chips, LED lighting. and other high-power electronic components.

Feature

>Thermal conductivity: 4.5 W/mK
>Soft, very low compression
>Low thermal impedance
>Operate automatically
>Proven long-term reliability

Application

>Heat-sink & frame
>LED backlight module, LED lighting
>High speed hardware driver
>Micro heat pipe
>Vihicel enginee controller
>Telecom industry
>Semiconductor automatic laboratory equipment

TIF®045-11 Typical Properties
Property Value Test method
Color Gray Visual
Construction & Composition Ceramic filled silicon material -
Flow Rate(g/min) 40 Ziitek Test Method (30 cc syringe/ 2.5 mm orifice/ 90 psi)
Density(g/cc) 3.20g/c ASTM D297
Thermal conductivity 4.5W/mK ASTM D5470
Thermal Impedance @10psi (℃.in²w) 0.077 ASTM D5470
Thermal Impedance @50psi (℃.in²w) 0.068 ASTM D5470
Recommended Operating Temp -45 ~200°C Ziitek Test Method
Dielectric Strength(V/mm) ≥4000 ASTM D149
Bond Line Thickness(mm) 0.2 Ziitek Test Mothod
Flame Rating V-0 UL 94
Shelf Life 12 months -

Product Specification

30 cc/pc, 98 pc/box; 300 cc/pc 6 pc/box

Custom packaging available for automation use. Please contact us for confirming.
If you want to know our thermal products, please visit our website.
