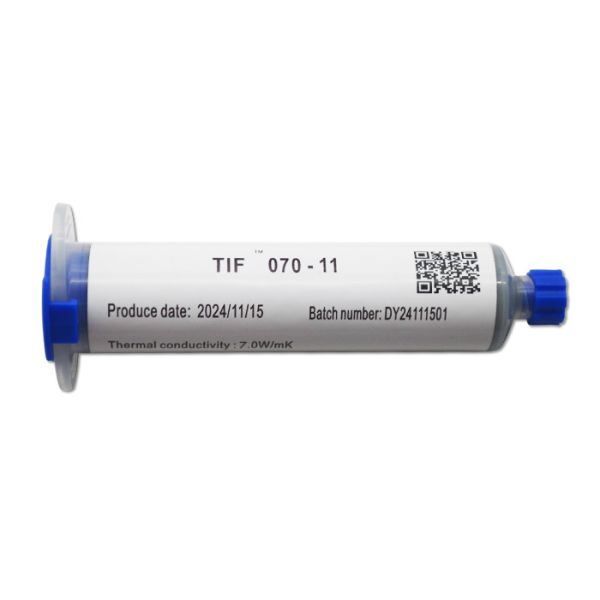

TIF070-11 7.0W/M-K Single-Component Insulation Silicone Conductive Thermal Gel For Telecom Industry
TIF070-11 7.0W/M-K Single-Component Insulation Silicone Conductive Thermal Gel For Telecom Industry
TIF070-11 7.0W/M-K Single-Component Insulation Silicone Conductive Thermal Gel For Telecom Industry
TIF070-11 7.0W/M-K Single-Component Insulation Silicone Conductive Thermal Gel For Telecom Industry
Specifications
Brand Name :
Ziitek
Model Number :
TIF070-11
Certification :
RoHS
Place of Origin :
Vietnam
MOQ :
1000tube
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Supply Ability :
1000000 tube/month
Delivery Time :
3-5 work days
Packaging Details :
300cc/PCS，6PCS/Box
Products name :
7.0W/M-K Single-Component Insulation Silicone Conductive Thermal Gel For Telecom Industry
Materail :
Ceramic Filled Silicon Material
Thermal conductivity :
7.0W/mK
Color :
Gray
Specific Gravity :
3.5g/cm³
Continuous Use Temperature :
-45~200℃
Keywords :
Thermal conductive gel
Application :
Heat Sink & frame
Description

TIF070-11 7.0W/M-K Single-Component Insulation Silicone Conductive Thermal Gel For Telecom Industry

TIF®070-11 is a soft silicone gel-based gap filler pad, formulated with a special blend of fillers to provide both excellent thermal conductivity and superior softness. Compared to conventional thermal greases, TIF®070-11 has a higher viscosity, which effectively prevents filler separation from the silicone matrix and reduces filler migration, helping maintain consistent thermal performance. It is applied in a similar manner to thermal grease and is suitable for commercial dispensing or automated equipment. Typical applications include flip-chip microprocessors, PPGAs, micro BGA packages, BGA packages, DSP chips, circular silicon chips, LED lighting, and other high-power electronic components.

Feature
> Thermal conductivity: 7.0W/mK

> Soft, very low compression

> Low thermal inpedance

> Operate automaticly
> Proven long-term reliability

Application
> Mass storage devices
> Automotive electronics
> CPU
> Heat-sink & frame
> LED backlight module,LEDlighting
> High speed hardware driver

> Micro heat pipe
> Vihicel enginee controler

> Telecom industry
> Semiconductor automaticlaboratory equipment.

TIF®070-11 Typical Properties
Property Value Test method
Color Gray Visual
Construction & Composition Ceramic filled silicon material -
Flow Rate(g/min) 30 Ziitek Test Method (30 cc syringe/ 2.5 mm orifice/ 90 psi)
Density(g/cc) 3.50g/c ASTM D297
Thermal conductivity 7.0W/mK ASTM D5470
Thermal Impedance @10psi (℃.in²w) 0.142 ASTM D5470
Thermal Impedance @50psi (℃.in²w) 0.12 ASTM D5470
Recommended Operating Temp -45 ~200°C Ziitek Test Method
Dielectric Strength(V/mm) ≥4000 ASTM D149
Bond Line Thickness(mm) 0.2 Ziitek Test Mothod
Flame Rating V-0 UL 94
Shelf Life 12 months -

Packing details

30 cc/pc, 98 pc/box;

300 cc/pc , 6 pc/box

We offer the custom packaged in syringes for automated despensing applications.

Please contact us for confirming.

TIF070-11 7.0W/M-K Single-Component Insulation Silicone Conductive Thermal Gel For Telecom Industry

Company Profile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.

Q&A

Q: Are you trading company or manufacturer ?

A: We are manufacturer in Vietnam.

Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .

Q: How much are the pads?

A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.
