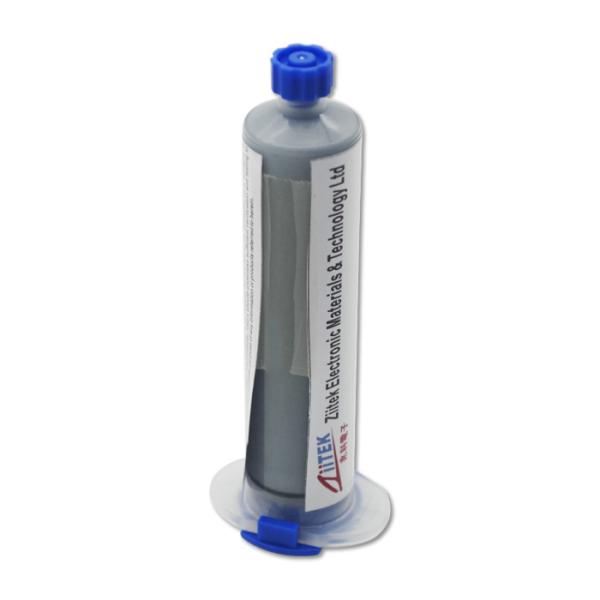

TIF090-11 High Thermal Conductive 9.0W Thermal Condauctive Gel For Heat Sink
TIF090-11 High Thermal Conductive 9.0W Thermal Condauctive Gel For Heat Sink
TIF090-11 High Thermal Conductive 9.0W Thermal Condauctive Gel For Heat Sink
TIF090-11 High Thermal Conductive 9.0W Thermal Condauctive Gel For Heat Sink
Specifications
Brand Name :
Ziitek
Model Number :
TIF090-11
Certification :
RoHS
Place of Origin :
Vietnam
MOQ :
1000tube
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Supply Ability :
1000000 tube/month
Delivery Time :
3-5 work days
Packaging Details :
300cc/tube
Products name :
TIF090-11 High Thermal Conductive 9.0W Thermal Condauctive Gel For Heat Sink
Materail :
Ceramic Filled Silicon Material
Color :
Gray
Application :
Electronic Component Gap Filling
Specific Gravity :
3.45g/cc
Thermal conductivity :
9.0W/mK
Continuous Use Temperature :
-45~200℃
Keywords :
Thermal conductive gel
Description

TIF090-11 High Thermal Conductive 9.0W Thermal Condauctive Gel For Heat Sink

TIF®090-11 is a soft silicone gel-based gap filler pad, formulated with a special blend of fillers to provide both excellent thermal conductivity and superior softness. Compared to conventional thermal greases, TIF®090-11 has a higher viscosity, which effectively prevents filler separation from the silicone matrix and reduces filler migration, helping maintain consistent thermal performance. It is applied in a similar manner to thermal grease and is suitable for commercial dispensing or automated equipment. Typical applications include flip-chip microprocessors, PPGAs, micro BGA packages, BGA |packages, DSP chips, circular silicon chips, LED lighting, and other high-power electronic components.

Feature


> Thermal conductivity: 9.0W/mK

> Soft, very low compression

> Low thermal inpedance

> Operate automaticly
> Proven long-term reliability

Application


> Heat-sink & frame
> LED backlight module,LED lighting

> High speed hardware driver
> Micro heat pipe
> Vihicel enginee controler

> Telecom industry
> Semiconductor automatic laboratory equipment

TIF®090-11 Typical Property
Property Value Test method
Color Gray Visual
Construction & Composition Ceramic filled silicon material *****
Flow Rate(g/min) 20

Ziitek Test Methbod

(30cc syringe/ 2.5mm or rifice/90 psi)
Density(g/cm³) 3.45 ASTM D792
Thermal conductivity(W/mK) 9.0 ASTM D5470
Thermal resistance @10Psi(℃-in²/W) 0.089 ASTM D5470
Thermal resistance @50Psi(℃-in²/W) 0.055 ASTM D5470
Recommended Operating temp -45~200℃ *****
Breakdown Voltage(V/mm) ≥4000 ASTM D149
Bond line Thickness (mm) 0.4 Ziitek Test Method
Shelf life 12 months ****
Flame Rating V-0 UL 94

TIF090-11 High Thermal Conductive 9.0W Thermal Condauctive Gel For Heat Sink

Packing details

30 cc/pc, 98 pc/box;

300 cc/pc , 6 pc/box

We offer the custom packaged in syringes for automated despensing applications.

Please contact us for confirming.

Company Profile

Ziitek company is a high-tech enterprise dedicated to the R&D, manufacture and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective one-step thermal management solutions. Our facility includes advanced production equipment, full test equipment, and fully automatic coating production lines capable of manufacturing high performance thermal products including:

Thermal gap pad

Thermal graphite sheet/film

Thermal double-sided tape

Thermal insulation pad

Thermal grease

Phase change material

Thermal gel

All products are compliant with UL94 V-0, SGS and ROHS standards.

Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL

Q&A

Q: Are you trading company or manufacturer ?

A: We are manufacturer in Vietnam.

Q:How can we get detailed price list?

A:Please offer us detailed information of the product such as Size(length,width,thickness),color,specific packaging requirements and purchasing quantity.

Q: What kind of packaging you offer?

A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
