Single Shaft Automatic Cutting Machine 5000W Servo Tape Cutting Machine 1600mm Width
Single Shaft Automatic Cutting Machine 5000W Servo Tape Cutting Machine 1600mm Width
Specifications
Model Number :
ZRT-1601-G1
Maximum cutting diameter :
320mm
Power supply :
380V(Customizable 220V) 50/60HZ/13KW
MOQ :
1 set
Packaging Details :
Wooden Case
Delivery Time :
15-30 working days
Price :
Negotiable
Machine size :
L3400mm*W1600mm*H1400mm
Net weight :
1.5 T
Place of Origin :
CHINA
Shearing blade diameter :
400mm
Payment Terms :
T/T
Brand Name :
ZHIROBO
Cutting width :
0.5-1600mm
Certification :
VERIFICATION OF CONFORMITY
Description
Single-Shaft Automatic Cutting Machine with 5000W Servo Control, 1600mm Cutting Width, and Dual-Screen Control

The ZRT-1601-G1 Single-Shaft Automatic Cutting Machine is designed for precision cutting of various materials including gold fingers, electronic films, PE, TPU, PET, kraft paper, paper tape, bopp, tape, and acrylic tape.

Equipment Advantages
  • Heikawa Motion Control System with 12 different cutting modes for various product widths, featuring three different feed speeds
  • 5000W servo-controlled main shaft and 3300W servo-controlled circular cutter with immediate stop function to prevent cutter damage
  • NSK 3210 lead screw and 30 guide rails for horizontal movement with 1500W servo control, ensuring positional accuracy within ±0.02mm over 1000mm
  • Upper silver 3210 screw and 30 guide rails for feed mechanism with 1500W servo control, ensuring strength and precision
  • Upper silver 1610 screw rod with 400W servo control for swing angle adjustment (+9.5° to -9.5° range)
  • 60W water pump cooling system with precise ball valve for silent operation
  • QBQ treated knife holder and lateral movement components for enhanced hardness, wear resistance, corrosion resistance, and deformation resistance
  • Dual-screen interface: 15-inch main display and 7-inch auxiliary screen for clear, simple operation
  • Comprehensive machine lighting system for electrical box, machine box, and startup operation
  • Dry-wet separation knife box design with sponge absorption in wet area and wool felt cleaning in dry area to minimize silicone oil residue
  • Diversion pipe drainage system to prevent silicone oil spillage during operation
Main Technical Parameters
Name/Model ZRT-1601-G1
Paper Core Customized according to customer requirements (38/50/76, freely replaceable)
Cutting Width 0.5-1600mm
Maximum Cutting Diameter 320mm
Maximum Shearing Blade Diameter 400mm
Dual-Screen Control 15-inch + 7-inch
Power Supply 380V (Customizable 220V) 50/60HZ/13KW
Air Pressure 5KG
Machine Size L3400mm × W1600mm × H1400mm
Net Weight 1.5 T
Configuration Parameters
Model SCT-1601-G1
Touch Screen 15-inch HCFA
Auxiliary Touch Screen 7-inch HCFA
Rack Wall Panel 28mm
Motion Controller HCFA
Spindle Servo Motor 5000W HCFA
Spindle Servo Driver 5000W HCFA
Circular Knife Servo Motor 3000W HCFA
Circular Knife Drive 3000W HCFA
Lateral Servo Motor 1500W HCFA
Lateral Servo Driver 1500W HCFA
Feed Servo Motor 1500W HCFA
Feed Servo Drive 1500W HCFA
Angle Positioning Servo 400W HCFA
Angle Positioning Servo Drive 400W HCFA
Water Pump 60W
Planetary Reducer Smetre
Air Switch Chint
Switching Power Supply Mingwei
Photoelectric Sensor BOJKE
Proximity Switch Yangming
AC Contactor Schneider
Relay IDEA
Button Switch Schneider
Three-Color Warning Light TAYB
Illumination LED
Solenoid Valve Asicko
Air Cylinder AIRTAC
Linear Rail HIWIN
Magnet Switch AIRTAC
Spindle 3 Inches Taiwan
Bearing NSK
Fuselage Imported paint finish
Circular Knife MAX 400mm
Work-box 1 set
Dial Gauge 1 set
Tool Post 1 PCS

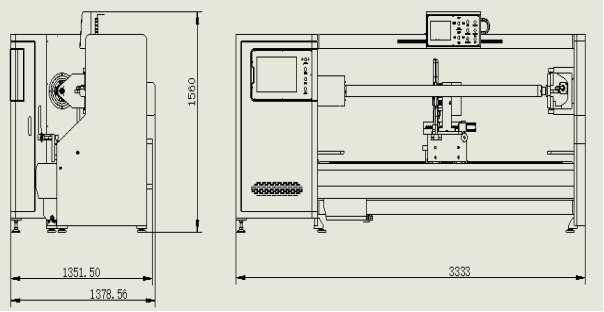

Equipment Layout
