4 Axis Automatic Slitting Machine Safety Guarded Automated Cutting Machine 380V 50Hz
4 Axis Automatic Slitting Machine Safety Guarded Automated Cutting Machine 380V 50Hz
Specifications
Place of Origin :
CHINA
Working Way :
Electric
Brand Name :
ZHIROBO
Certification :
VERIFICATION OF CONFORMITY
MOQ :
1 set
Payment Terms :
T/T
Cutting Width :
0.5-1300mm
Price :
Negotiable
Max Cutting Diameter :
150mm
Delivery Time :
15-30 working days
Power Supply :
380V(customizable 220V) 50/60HZ/8.8KW
Slitting Material :
Plastic Film, Paper
Model Number :
ZRT-1300-G4
Tension Control :
Automatic PLC control
Description
Automatic Slitting Machine with 4-Axis Auto Cutting and Emergency Stop Safety Guards for Precision Slitting
Product Overview

The Automatic 4-shaft cutting machine ZRT-1300-G4 provides advanced slitting solutions with integrated safety mechanisms and user-friendly operation. Designed for high-efficiency production of narrow-width adhesive tapes including electrical tape, washi tape, masking tape, double-sided adhesive tape, and other adhesive materials.

Key Features
  • VECON PLC control system supporting 12 working modes for cutting products of different widths
  • Four spindles perform slitting simultaneously to maximize production efficiency
  • Independent adjustment capability for each circular cutter
  • Main spindle driven by 5500W Shihlin frequency converter
  • Circular cutter driven by 3700W Shihlin frequency converter with automatic safety halt
  • HIWIN ball screw and linear guide cross travel mechanism with ±0.02mm positioning tolerance
  • Stable feeding force and high cutting precision with 1000W servo motor
  • Adjustable swing angle range: -9.5° to +9.5°
  • QBQ surface treatment for enhanced hardness, wear resistance, and corrosion resistance
  • 10-inch main touch screen for intuitive operation
  • Stainless steel diversion pipeline drainage system prevents silicone oil splashing
Technical Specifications
Model ZRT-1300-G4
Paper Core 25/38/50/76=4 strips
Customizable per customer requirements
Cutting Width Range 0.5-1300mm
Max. Cutting Material Diameter 150mm (Max material thickness 45mm)
Max. Circular Cutter Diameter 180mm
HMI Touch Screen 10-inch
Power Supply 380V (customizable 220V) 50/60HZ/8.8KW
Air Pressure 5KG
Machine Dimensions L2700 × W1100 × H1500 mm
Net Weight 2T
Configuration Details
Model ZRT-1300-G4
Main Touch Screen 10-inch
Frame Wall Plate Thickness 28 mm
PLC Controller VECON
Main Spindle Motor Three-phase asynchronous motor/KETEMAI brand
Main Spindle Drive 5500W Shihlin Frequency Inverter
Circular Cutter Motor Three-phase asynchronous motor/MODOLI brand
Circular Cutter Drive 3700W Shihlin Frequency Inverter
Cross Travel Servo Motor Shihlin Servo Motor
Cross Travel Servo Driver Shihlin Servo Driver
Cutter Feed Servo Motor Shihlin Servo Motor
Cutter Feed Servo Driver Shihlin Servo Driver
Swing Angle Stepper Motor Domestic brand
High-Speed Steel Cutter SANSHI brand
Accessory Specifications
Air Circuit Breaker CHINT
Switching Power Supply TEND (Taiwan)
Photoelectric Sensor Domestic brand
Proximity Switch Domestic brand
AC Contactor CHINT
Relay OMRON
Push Button Switch Domestic brand
Cutter Feed Ball Screw HIWIN
Cross Travel Ball Screw HIWIN
Swing Angle Ball Screw HIWIN
Cutter Feed Linear Guide HIWIN
Cross Travel Linear Guide HIWIN
Solenoid Valve Domestic brand
Air Cylinder Domestic brand
Linear Guide Rail HIWIN
Magnetic Switch Domestic brand
Main Spindle (4 pcs) Custom-made
Bearing NSK
Machine Frame Imported baking paint finish
Circular Cutters 4 pcs (selected according to processing materials)
Tool Kit 1 set
Dial Indicator 1 set
Cutter Alignment Rod 1 pc
PE Tubing 4 pcs
Product Gallery
4 Axis Automatic Slitting Machine Safety Guarded Automated Cutting Machine 380V 50Hz 4 Axis Automatic Slitting Machine Safety Guarded Automated Cutting Machine 380V 50Hz 4 Axis Automatic Slitting Machine Safety Guarded Automated Cutting Machine 380V 50Hz

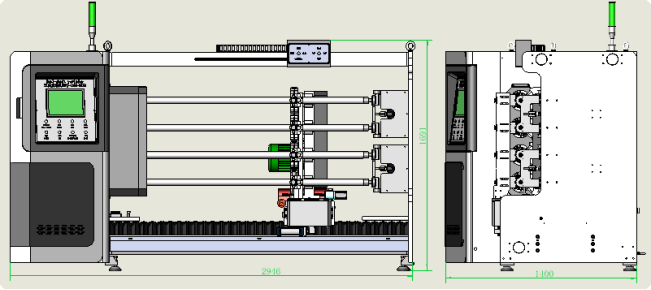

Equipment Layout:
4 Axis Automatic Slitting Machine Safety Guarded Automated Cutting Machine 380V 50Hz
