6 Spindle Plastic Slitting Machine Alternate Working Tape Slitter Dual Touch Screen
6 Spindle Plastic Slitting Machine Alternate Working Tape Slitter Dual Touch Screen
Specifications
Model Number :
ZRT-1300-G6
Price :
Negotiable
Maximum cutting diameter :
180mm
Place of Origin :
CHINA
Packaging Details :
Wooden Case
Delivery Time :
15-30 working days
Air Pressure :
5KG
Payment Terms :
T/T
Machine size :
L3200mm*W2000mm*H2000mm
MOQ :
1 set
Weight :
3.5T
Certification :
VERIFICATION OF CONFORMITY
Cutting width :
0.5-1300mm
Brand Name :
ZHIROBO
Machine Type :
Slitting Machine
Description
6 Spindle Alternate Working Film Cutting Machine Double Touch Screen Control Slitter
Product Overview

This advanced six-axis automatic cutting machine is designed for precision slitting of various materials including electrician's tape, electronic film, grid tape, PE, TPU, PET, kraft paper, paper tape, BOPP, adhesive tape, acrylic, double-sided tape, and masking tape.

Main Technical Parameters
ParameterSpecification
Name/ModelZRT-1300-G6
Paper CoreCustomized (25/32/38/50/76=6 strips)
Cutting Width0.5-1300mm
Maximum Cutting Diameter180mm (varies with material thickness)
Maximum Shearing Blade Diameter200mm
Dual-screen Control15 inches + 7 inches
Power Supply380V (Customizable 220V) 50/60HZ/15KW
Air Pressure5KG
Machine SizeL3200mm × W2000mm × H2000mm
Net Weight3.5T
Configuration Parameters
ComponentSpecification
ModelZRT-1300-G6
Main Touch Screen15 HCFA
Auxiliary Touch Screen7 inches HCFA
Rack Wall PanelThickness: 40mm
Motion ControllerHCFA
Spindle Servo Motor5000W HCFA
Spindle Servo Driver5000W HCFA
Circular Knife Servo Motor3000W HCFA
Circular Knife Drive3000W HCFA
Lateral Servo Motor1500W HCFA
Lateral Servo Driver1500W HCFA
Feed Servo Motor1500W HCFA
Feed Servo Drive1500W HCFA
Angle Positioning Servo400W HCFA
Angle Positioning Servo Drive400W HCFA
Rolling Servo1000W HCFA
Rolling Servo Driver1000W HCFA
Water Pump60W
Planetary ReducerSmetre
SlicerJU JIU
Air SwitchChint
Switching Power SupplyMingwei
Photoelectric SensorBOJKE
Proximity SwitchYangming
AC ContactorSchneider
RelayIDEA
Button SwitchSchneider
Three-color Warning LightTAYB
IlluminationLED
Feed ScrewHIWIN 3210
Horizontal Moving Screw RodHIWIN 3210
Adjustable Angle Screw RodHIWIN 1510
Cutting-in Guide RailHIWIN30
Lateral Guide RailHIWIN30
Operation Box Guide RailHIWIN15
Solenoid ValveAsicko
Air CylinderAIRTAC
Linear RailHIWIN
Magnet SwitchAIRTAC
Spindle 3 inches (6 pieces)DC53
BearingNSK
FuselageImported paint finish
Round Knife3 pieces (size determined by material) - maximum 200mm
Work-box1 set
Dial Gauge1 set
The Tool Post1 PCS
PE Pipe6 items
Key Equipment Advantages
  • HECO motion control system provides 12 cutting modes for various product widths, and three feed speeds are selectable for production
  • Main shaft adopts 5000W servo control while circular cutter uses 3300W servo drive, integrated with immediate stop safety feature
  • NSK 3210 lead screw and 30 guide rails are deployed for horizontal travel, with positioning tolerance controlled within ±0.02mm
  • Upper silver 3210 screw matched with 30 guide rails is adopted on feed mechanism to guarantee rigidity and machining precision
  • Swing angle adjustment powered by 400W servo motor, adjustable range: +9.5° ~ -9.5°
  • Silent operation is realized via 60W water pump cooling system equipped with accurate ball valve
  • QBQ surface treatment improves the hardness, wear resistance and anti-corrosion performance of components
  • Dual-screen operation configuration: 15-inch main display plus 7-inch auxiliary screen
  • The whole machine is equipped with a complete lighting system
  • Adopts stainless steel dry-wet separated knife box design
  • Stainless steel drainage system prevents silicone oil overflow in working process
  • 1000W servo motor drives the reversal structure to complete zero-error flipping movement
  • Three-axis segmentation can operate at the same time to raise working efficiency
  • Comes with pre-assembled tool rest, suitable for products with main shaft core below 25mm

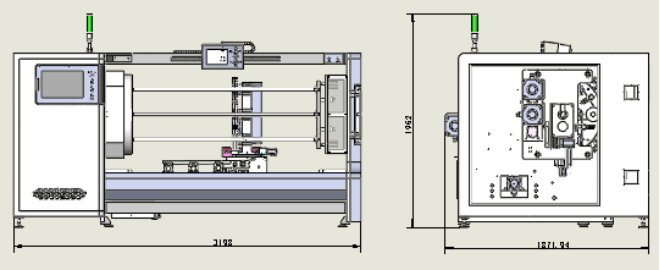

Equipment Layout
6 Spindle Plastic Slitting Machine Alternate Working Tape Slitter Dual Touch Screen 6 Spindle Plastic Slitting Machine Alternate Working Tape Slitter Dual Touch Screen
