Inline Connectable Automatic Slitting Machine Dust Adhesive Roll Horizontal Slitting Machine Adjustable Feed
Inline Connectable Automatic Slitting Machine Dust Adhesive Roll Horizontal Slitting Machine Adjustable Feed
Specifications
Model Number :
ZRS-D1300
Min. Slitting Width :
0.5-1300mm
Packaging Details :
Wooden Case
Place of Origin :
CHINA
HMI Operation :
10 inch
Power Supply :
380V(220V customizable), 50/60HZ/5KW
Machine Size :
4000*1550*1600
Certification :
VERIFICATION OF CONFORMITY
Delivery Time :
15-30 working days
Max. Slitting Diameter :
80MM
MOQ :
1 set
Price :
Negotiable
Brand Name :
ZHIROBO
Payment Terms :
T/T
Type :
Slitting Machine
Description
Inline Connectable Dust Adhesive Roll Adjustable Feeding Height Horizontal Slitter
Basic Application
Mainly used for slitting materials such as dust-proof adhesive rolls, dust-removal films, tear-free dust removal paper rolls, PCB dust removal paper, lint removal paper rolls, PP dust removal rolls and PE dust removal rolls.
Main Technical Parameters
Parameter Specification
Model ZRS-D1300
Paper Core Customizable (interchangeable) 38/50/76 mm
Min. Slitting Width 0.5-1300mm
Max. Slitting Diameter 80MM
Max. Diameter of Slitting Blade 160mm
HMI Operation 10 inch
Power Supply 380V(220V customizable), 50/60HZ/5KW
Air Pressure 5KG
Machine Size 4000*1550*1600
Net Weight 1.2T
Configuration Parameters
Component Specification
Model ZRS-D1300
Main Touch Screen 10 inch HCFA
Discharge Conveyor 200w
Rack Wall Plate 80*80 square tube + 20mm steel plate
Motion Controller HCFA
Main Spindle Three-Phase Asynchronous Motor 1500W HCFA
Main Spindle Inverter 5000W HCFA
Circular Blade Servo Motor 750W HCFA
Circular Blade Driver 750W HCFA
Cross Travel Servo Motor 750W HCFA
Cross Travel Driver 750W HCFA
Blade Feed Servo Motor 750W HCFA
Blade Feed Driver 750W HCFA
Pusher Servo Motor 400W HCFA
Pusher Driver 400W HCFA
Ejector Servo Motor 750W HCFA
Ejector Driver 750W HCFA
Waste Inclined Conveyor 120W
Planetary Reducer Smetre
Air Switch Chint
Switching Power Supply Mingwei
Photoelectric Sensor BOJKE
Proximity Switch Yangming
AC Contactor Schneider
Relay IDEA
Push Button Switch Schneider
Three-Color Alarm Lamp 台邦TAYB
Lighting Waterproof LED
Blade Feed Linear Guide HIWIN 25
Blade Feed Ball Screw HIWIN 2005
Cross Travel Linear Guide HIWIN 25
Cross Travel Ball Screw HIWIN 2020
Pusher Ball Screw HIWIN 1610
Ejector Linear Guide HIWIN 25
Ejector Ball Screw HIWIN 2010
Solenoid Valve Asicko
Cylinder AIRTAC
Linear Guide Rail HIWIN
Magnetic Switch AIRTAC
Main Spindle Chuck 3-inch DC53
Bearing NSK
Machine Body Imported baking paint
Circular Blade Customizable per material, max. 160mm
Toolbox 1 set
Product Characteristics
  • Control System: Fitted with HCFA motion control system, which delivers precise parameter control and fast running speed.
  • Drive System: The main spindle is powered by a 1500W three-phase asynchronous motor. A 750W servo motor equipped with planetary reducer provides power for the circular blade.
  • Cross Travel: Adopts HIWIN 2020 ball screw paired with 25 linear guides and driven by a 750W servo motor. The positioning tolerance reaches ±0.02mm within 1000mm travel range.
  • Blade Feed: HIWIN 2005 ball screw and 25 linear guides work with a 750W servo motor to guarantee reliable feeding force and outstanding precision.
  • Waste Pusher: Driven by a 400W servo motor, the HIWIN 1610 ball screw ensures highly accurate feeding positions for waste pushing.
  • Material Ejector: Consists of HIWIN 2005 ball screw and 25 linear guides controlled by a 750W servo motor to avoid scratching or damaging materials.
  • Surface Treatment: Blade holder and cross travel components receive QBQ surface treatment to boost hardness, wear resistance, corrosion resistance and minimize deformation.
  • Operation Interface: Equipped with a 10-inch main touch screen, supporting straightforward and user-friendly operation.
  • Lighting System: Built-in integrated lighting includes lights for electrical cabinet door opening, machine cabinet door opening and regular operation lighting.
  • Blade System: The maximum diameter of the circular blade is 160mm, protected by a stainless steel blade housing.
  • Feeding System: The feeding end supports manual height adjustment to fit various finished roll diameters; feeding movement is driven by air cylinder.
  • Waste Discharge: Supports automatic front and rear waste discharge. Waste materials are transported along the inclined conveyor for packing.
  • Product Discharge: Finished goods are output automatically in neat order and can be directly linked to packaging machines.
  • Chuck System: High-speed rotary expanding chuck features stable clamping performance. It will not harm paper cores and avoids slipping during slitting so as to prevent blade chipping.
  • Integration Capability: It can be installed behind automatic rewinding machines for inline connection. It realizes automatic loading, slitting, waste removal and ordered finished product output, cutting labor expenditure and matching automated production lines.

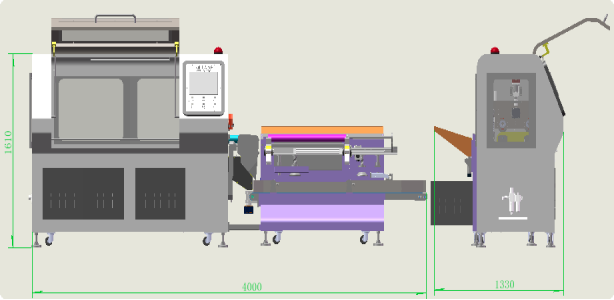

Equipment Layout
