1.5 kW Stainless Steel Labeling Machine Automatic Linear Labeling Machine For Safe Operator Protection
1.5 kW Stainless Steel Labeling Machine Automatic Linear Labeling Machine For Safe Operator Protection
Specifications
Place of Origin :
CHINA
Labeling Location :
According to customer samples
Material :
Stainless steel
Brand Name :
ZHIROBO
MOQ :
1 set
Hight Label Object :
30-280mm
Label Type :
Bottle mouth label
Model Number :
ZRT-170B
Name :
Stainless Steel Labeling Machine
Certification :
VERIFICATION OF CONFORMITY
Diameter Of Object :
20-120mm
Total Power :
1.5 kW
Delivery Time :
15-30 working days
Material Size :
20-100mm H 40-200mm
Price :
Negotiable
Payment Terms :
T/T
Description
Automatic Labeling Machine with Stainless Steel Material and 50-130MM Packable Diameter Range for Safe Operator Protection
Linear Sleeve Labeling Machine Specification Sheet ZRT-170B
Basic Use
This machine is primarily designed for shrink film and paper card packaging of various adhesive tape rolls. It supports sleeve wrapping and heat shrink packaging for both single and multiple cylindrical tape items.
Equipment Advantages
  • Specially developed for sleeve wrapping and heat shrink packaging of cylindrical adhesive tape products
  • When used with a constant-temperature PVC shrink tunnel, achieves perfect, consistent shrink packaging effects
  • Versatile in application, cost-effective and simple to operate, supporting PVC film as the main packaging material
  • Significantly lowers overall packaging costs compared with manual wrapping
  • Finished products feature a tidy, professional appearance with tight, secure packaging that prevents loosening
  • Effectively protects product quality and makes items ideal for long-distance logistics and transport
1.5 kW Stainless Steel Labeling Machine Automatic Linear Labeling Machine For Safe Operator Protection

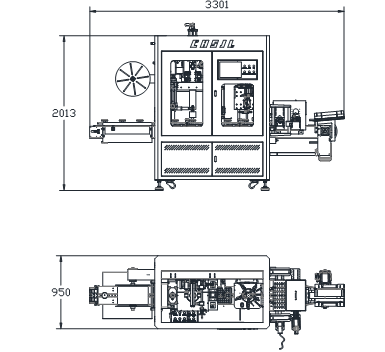

Equipment Layout
1.5 kW Stainless Steel Labeling Machine Automatic Linear Labeling Machine For Safe Operator Protection
Main Technical Parameters
Parameter Specification
Power Supply AC380/AC220 50～60HZ
Total Power 12KW
Hot Air Gun Power 8.8KW (4 pcs)
Packable Diameter Range 50-130MM
Packaging Speed 50PCS
Conveyor Height 780+50MM (Adjustable)
Working Air Pressure 5～7kgf/cm²
Overall Machine Dimension (L*W*H) 3500*900*2000MM
Net Machine Weight 1500kg
Configuration Parameters
Component Specification
Model ZRT-170B
Touch Screen MCGS
Film Feed Servo HCFA
Film Feeder HCFA
Film Cutting Servo HCFA
Film Cutting Drive HCFA
Absorption Servo HCFA
Suction Drive HCFA
Reducer SMT
PLC Controller HCFA
Air Switch CHINT
AC Contactor Schneider
Switching Mode Power Supply MINGWEI
Electric Machinery MAILI
Photoelectric Switch BOJKE
Solid-state Relay YANGMING
Relay IDEC
Temperature Controller Taie
Frequency Converter Cost
Button Switch Schneider
Cylinder Star
Filter STNC
Solenoid Valve STNC
Vacuum Solenoid Valve ASiCKO
Magnetic Switch AirTAC
Vacuum Generator ASiCKO
Bearing NSK
Frame Imported powder spraying
