Intelligent Touch Screen Automatic Labeling Machine 200V - 240V Automatic Labeling Equipment
Intelligent Touch Screen Automatic Labeling Machine 200V - 240V Automatic Labeling Equipment
Specifications
Model Number :
ZRW-113
Control System :
PLC Touch Screen
Packaging Details :
Wooden Case
Place of Origin :
CHINA
Label Roll Max Diameter :
300 mm
Machinery Test Report :
Provided
Price :
Negotiable
Payment Terms :
T/T
Label Width Range :
10-150 mm
Applicable Label Roll OD :
≤300mm
MOQ :
1 set
Precison :
±1mm
Certification :
VERIFICATION OF CONFORMITY
Label Type :
Self Adhesive
Machine size :
2000(L)*1100(W)*1500(H)mm
Applicable Label Core ID :
76mm
Weight :
150kg
Brand Name :
ZHIROBO
Name :
Automatic Labeling Machine
Delivery Time :
15-30 working days
Description
Intelligent Touch Screen , ±1mm Accuracy Fully Automatic Top Flat Surface Labeling Machine
Main technical parameters
Name/Model ZRW-113
L*W*H Scope of application 400(L)*200(W)*200(H)(Customized as per sample)
Applicable label scope L(10～350)mm,W(10-150)mm
Labeling Accuracy ±1mm(Excluding tolerance from product and label itself)
Packing speed 0-80 pcs/min(Subject to product and label dimensions)
Applicable Label Core ID 76mm
Applicable Label Roll OD ≤300mm
Power supply AC200-240V,50-60HZ 200W
Air supply pressure 5KG
Machine size 2000(L)*1100(W)*1500(H)mm
Weight 150kg
Configuration parameters:
Model ZRW-113
(Programmable Logic Controller) PLC
Label Sensor SICK
Product Sensor PLC
Label Belt Clamping Motor RUIDA, Inverter-driven
Label Head Traction Motor LEADSHINE
HMI (Human-Machine Interface) WECON
Conveyor Motor RUIDA, Inverter-driven
Machine Frame Stainless Steel, Aluminum Alloy

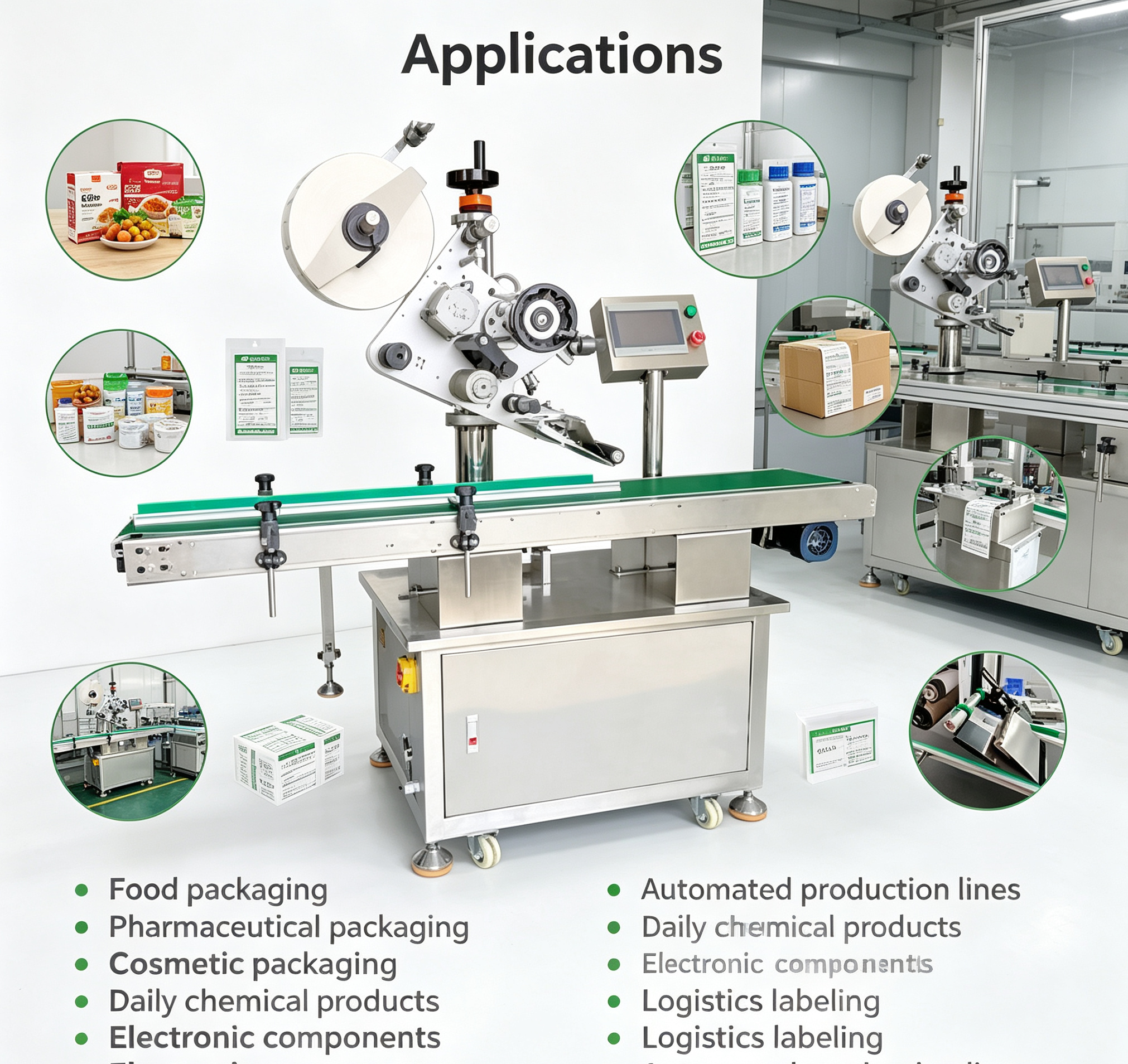

Basic Use

The automatic plane labeling machine is suitable for labeling or self-adhesive films on the upper plane of various articles, such as books, folders, boxes, cartons, etc. Changing the labeling mechanism can be suitable for labeling uneven surfaces, which is widely used for planar labeling of large products and labeling of planar objects with large specifications.

Equipment Advantages
  • Intelligent touch screen, imported PLC and artificial intelligence realize human-computer interaction
  • The labeling mechanism adopts a brush or sponge to make the label smoother and ensure the stability of labeling.
  • The adjusting seat is equipped according to the characteristics of the sample appearance to ensure that it can be adjusted to a suitable labeling angle.
  • Imported German Sike electric eye can accurately detect the label position.

Intelligent Touch Screen Automatic Labeling Machine 200V - 240V Automatic Labeling Equipment

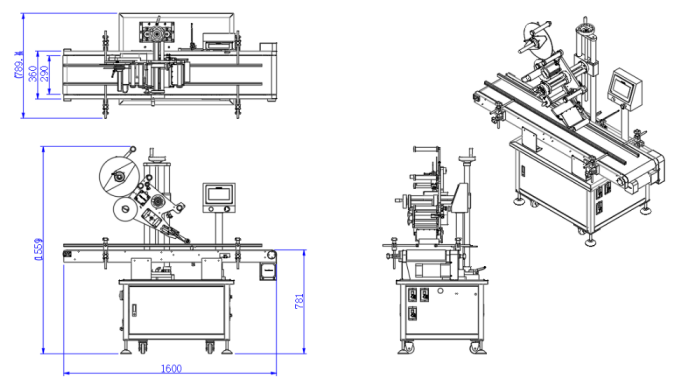

Equipment Layout

Intelligent Touch Screen Automatic Labeling Machine 200V - 240V Automatic Labeling Equipment

Intelligent Touch Screen Automatic Labeling Machine 200V - 240V Automatic Labeling Equipment
