OEM Flat Surface Labeling Machine High Effiency Flat Bottle Labelling Machine Multi Angle Adjustable
OEM Flat Surface Labeling Machine High Effiency Flat Bottle Labelling Machine Multi Angle Adjustable
Specifications
Model Number :
ZRW-113
Applicable Dimensions :
10-22mm
Price :
Negotiable
Packaging Details :
Wooden Case
Payment Terms :
T/T
Structure :
Reasonable Structure
Grade :
Automatic
Suit Bottle Size :
Can be customized
Delivery Time :
15-30 working days
Advantage :
High Effiency
Place of Origin :
CHINA
Service :
OEM Service
Certification :
VERIFICATION OF CONFORMITY
Brand Name :
ZHIROBO
Name :
Flat Surface Labeling Machine
MOQ :
1 set
Description

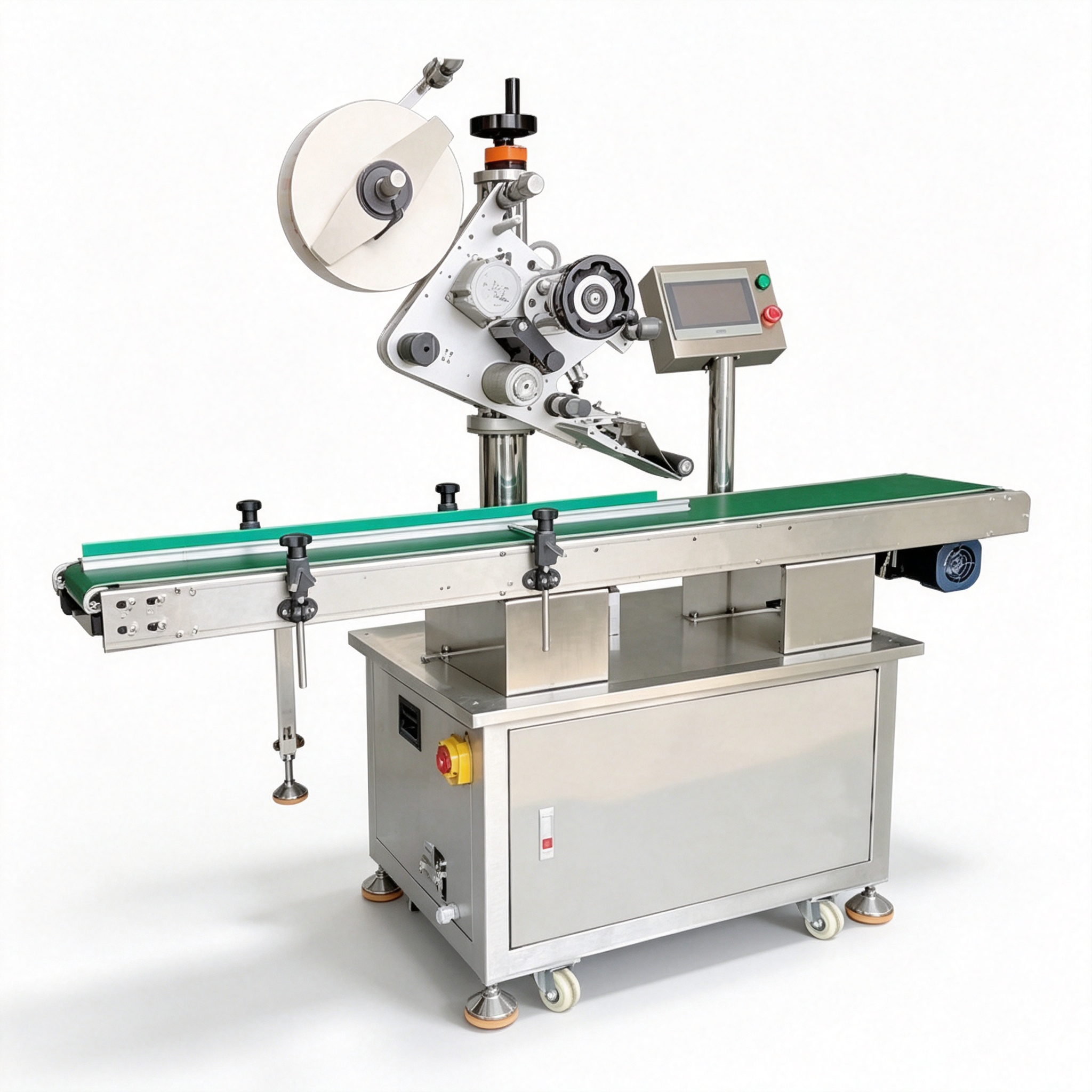

Multi-Angle Adjustable Label Head Fully Automatic Top Flat Surface Labeling Machine
Technical Specifications
Parameter Value
Model ZRW-113
Product Application Range 400(L) * 200(W) * 200(H) mm (customizable based on samples)
Label Specifications Length: 10–350 mm
Width: 10–150 mm
Labeling Accuracy ±1 mm (excluding product and label tolerances)
Packaging Speed 0–80 pcs/min (depending on product and label size)
Label Core ID 76 mm
Max Label Roll OD ≤300 mm
Power Supply AC 200–240 V, 50–60 Hz, 200 W
Air Pressure 0.5 MPa (5 kg/cm²)
Machine Dimensions 2000(L) * 1100(W) * 1500(H) mm
Net Weight 150 kg
Standard Configuration
Component Description
Model ZRW-113
PLC Programmable Logic Controller
Label Sensor SICK
Product Sensor PLC-controlled
Label Belt Motor RUIDA with inverter control
Label Traction Motor LEADSHINE
HMI Touchscreen WECON
Conveyor Motor RUIDA with inverter control
Frame Stainless steel & high-grade aluminum alloy
Product Application

This automatic flat labeling machine is designed for applying self-adhesive labels on the top surface of various products, including boxes, cartons, books, folders, and other flat items.

With a simple modification to the labeling head, it can also handle uneven surfaces, making it ideal for large-format products and oversized flat workpieces.

Key Advantages
  • User-friendly intelligent touch screen, supported by high-performance PLC and intelligent control system for stable operation.
  • Equipped with brush or sponge pressing assembly to ensure smooth, wrinkle-free labeling and consistent adhesion.
  • Adjustable mounting bracket design allows flexible setting of optimal labeling angles for different product shapes.
  • High-precision imported sensing system ensures accurate label detection and stable positioning.
Equipment Layout

OEM Flat Surface Labeling Machine High Effiency Flat Bottle Labelling Machine Multi Angle Adjustable

OEM Flat Surface Labeling Machine High Effiency Flat Bottle Labelling Machine Multi Angle Adjustable
