Dual Shaft Automatic Rewinding Machine 5.5kW Servo Control Tape Rewinder Machine 18KW
Dual Shaft Automatic Rewinding Machine 5.5kW Servo Control Tape Rewinder Machine 18KW
Specifications
Model Number :
ZRF-1300-D250
Rewinding diameter :
250mm
Power supply :
380V 50/60HZ/18KW
Machine size :
2800*2500*1600mm
Place of Origin :
CHINA
Rewind width :
1300mm
Brand Name :
ZHIROBO
Model :
ZRF-1300-D250
Production speed :
Line Speed 200m/min 4-5pcs/min(15m)
Description
Dual Shaft Rewinding Machine ZRF-1300-D250
Dual Shaft Rewinding Machine ZRFJ-1300-D250

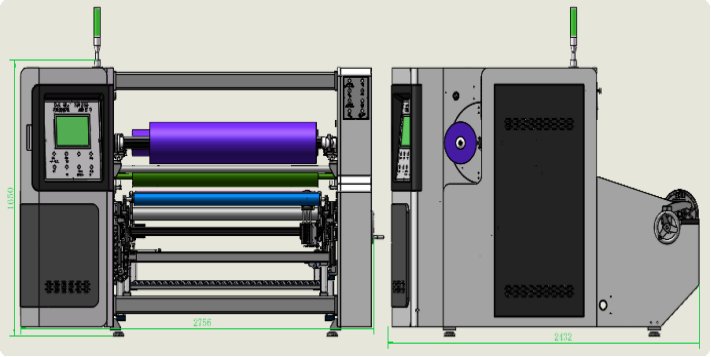

Equipment Layout:
Dual Shaft Automatic Rewinding Machine 5.5kW Servo Control Tape Rewinder Machine 18KW
Basic Application
Primarily used for adhesive rewinding of automotive foam, foam double-sided tape, BOPP tape, masking tape, double-sided tape, and other similar materials.
Equipment Advantages
Equipped with Hechuan motion control system for automatic taper tension control, generating different tension based on material thickness and winding diameter during rewinding
Active traction with 5.5kW servo control ensures rewinding length accuracy within 5mm-10mm, suitable for high/low tension unwinding with continuous, long-term stable operation
Automatically shifting electronic pressure roller adjusts according to set material thickness, thickness variation, and length changes, maintaining proper gap between pressure roller and winding shaft for flatter finished rolls with consistent tension
Automatic tension winding & unwinding with stable tension and smooth start-stop; servo motor torque winding ensures stable, precise tension for neat rolls with flat end faces
Glue roller surface features nano-coating; all back-up rollers are mirror finished to prevent material scratching; all pressure rollers are silicone rubber construction
Curved spread roller effectively flattens various materials, enabling efficient high-speed rewinding
Dual-shaft winding with roll flipping function; manual cutting and tape splicing; tail pressing roller automatically flattens materials to improve productivity
Material suction worktable with automatic suction during manual cutting, facilitating material joining and tape splicing
10-inch touch screen for simple, intuitive operation
Working width customizable according to materials; available models: 1100, 1300, 1600, etc.
Main Technical Parameters
Model ZRF-1300-D250
Paper Core Customized as customer requirements (Interchangeable) 25/38/50/76
Unwinding Master Roll Max. Diameter 800mm
Rewinding Diameter 250mm
Rewind Width 1300mm
Production Speed Line Speed 200m/min, 4-5pcs/min (15m) Subject to rewinding length
Power Supply 380V 50/60HZ/18KW
Machine Size 2800×2500×1600mm
Net Weight 1.2T
Configuration Parameters
Model ZRF-1300-D250
Touch Screen 10-inch MCGS
Frame Wall Plate 25mm
Motion Controller HCFA
Active Traction Servo Motor 5.5kw HCFA
Active Traction Servo Driver 5.5kw HCFA
Winding Pressure Roller Servo Motor 1.5kw HCFA
Winding Pressure Roller Driver 1.5kw HCFA
Winding Servo Motor 4.4kw HCFA
Winding Servo Driver 4.4kw HCFA
Roll Flipping Servo Motor 1kw HCFA
Roll Flipping Servo Driver 1kw HCFA
Tail Winding Servo Motor 1kw HCFA
Tail Winding Servo Driver 1kw HCFA
Key-type Unwinding Air Shaft 3inch
Plate-type Winding Air Shaft 3inches
Motor MaiLi
Planetary Reducer Smetre
Magnetic Powder Brake WREZUN
Air Circuit Breaker Chint
Switching Power Supply Mingwei
Photoelectric Sensor BOJKE
Proximity Switch Yangming
AC Contactor Schneider
Relay IDEA
Push Button Switch Schneider
3-color Warning Light TAYB
Solenoid Valve ASICKO
Air Cylinder AIRTAC
Linear Guide Rail HIWIN
Magnetic Switch AIRTAC
3-inch Key-type Unwinding Air Shaft Taiwan
Bearing NSK
Dual Traction Main Shaft Nano-coating Anti-sticking Treatment
Winding Pressure Roller Φ180mm Silicone Pressure Roller
Transition Roller Hard Anodizing, Brown Finish
Tail Pressure Roller Φ80mm Silicone Pressure Roller
Traction Pressure Roller Φ80mm Silicone Pressure Roller
Machine Body Spray Coating & Baking Finish
