Customized Automatic Rewinding Machine Servo Motor Control Masking Film Laminating Machine
Customized Automatic Rewinding Machine Servo Motor Control Masking Film Laminating Machine
Specifications
Model Number :
ZRT-350A
MOQ :
1 set
Paper core :
Customized according to customer requirements
Power supply :
1P220V 50/60HZ/2KW
Packaging Details :
Wooden Case
Payment Terms :
T/T
Rewinding diameter :
<100mm
Supply Ability :
10 sets per month
Rewind width :
W(50-300)mm
Production speed :
4-7pcs/MIN (subject to rewinding process)
Place of Origin :
CHINA
Unwinding master roll :
600mm(MAX)
Delivery Time :
15-30 working days
Certification :
VERIFICATION OF CONFORMITY
Price :
Negotiable
Brand Name :
ZHIROBO
Name :
Automatic Rewinding Machine
Description
Fully Automatic Masking Film Laminating and Rewinding Machine ZRT-350A with Servo Motor Control, Automatic Threading, and Tungsten Steel Round Knife
Basic Use

Primarily used for rewinding and laminating devices and film rolls for masking films.

Main Technical Parameters
Parameter Specification
Model ZRT-350A
Paper Core Customized according to customer requirements
Unwinding Master Roll 600mm (MAX)
Rewinding Diameter <100mm
Rewind Width W(50-300)mm
Production Speed 4-7pcs/MIN (subject to rewinding process)
Power Supply 1P220V 50/60HZ/2KW
Air Pressure 5KG/CM²
Machine Size 2100*1400*1450
Net Weight 450KG
Configuration Parameters
Component Specification
Model SZT-350A
Touch Screen 10-inch MCGS H,I
Motion Controller HCFA
Servo Motor HCFA
Axis Changer Servo Drive HCFA
Servo Motor HCFA
Pulling Servo Drive HCFA
Winding Servo Motor HCFA
Winding Servo Drive HCFA
Pipe Threading Servo Motor HCFA
Pipe Threading Servo Driver HCFA
Drop Tube Servo Motor HCFA
Drop Tube Servo Drive HCFA
Stepper Motor REITER
Stepper Motor Driver REITER
Tension Controller IMPQC
Motor SANLY
Reducer Hasi Mai
Edge Corrector BIANFU
Magnetic Powder Clutch WREZUN
Air Switch CHINT
Switching Power Supply MINGWEI
Stepper Motor Power Supply MINGWEI
Edge Correction Power Supply MINGWEI
Linear Guide RICG
Photoelectric Sensor BOJKE
Material Detection Sensor BOJKE
Proximity Switch Yangming
Contactor Schneider
Relay IDEA
Button Switch Kndele
Tri-color Warning Light TʌYB
Solenoid Valve asicko
Cylinder STAR
Rodless Cylinder STAR
Linear Slide HIWIN
Magnetic Switch AIRTAC
Bearing NSK, HRB
Drive Spindle Anti-stick Nano Coating
Nip Roll Silicone lagging (non-adhesive)
Scalpel 40MM tungsten steel round knife
Transition Roller Anti-skid belt surface treatment (to prevent material running)
Product Characteristics
  • HCFA motion control card system with servo motors for material pulling, torque winding, shaft replacement, tube threading, and paper feeding tube - ensuring stable and efficient operation
  • Smooth winding with stable start/stop and controlled edge correction
  • Automatic threading, cutting, finishing, and discharging capabilities
  • Automatic tension unwinding with stable tension and smooth fit for smooth volume start/stop
  • Servo motor material pulling with accurate length calculation
  • Servo motor torque winding for stable and precise winding tension, exquisite winding, and flat end surface
  • Unwinding using inflatable shaft for convenient and fast loading/unloading
  • Two tape feeding shafts capable of producing two layers of tape
  • Tungsten steel round knife for durable and neat material cutting
  • Comprehensive alarms for no film, no tape, no material, no paper tube conditions with automatic shutdown
  • One-key start for easy operation

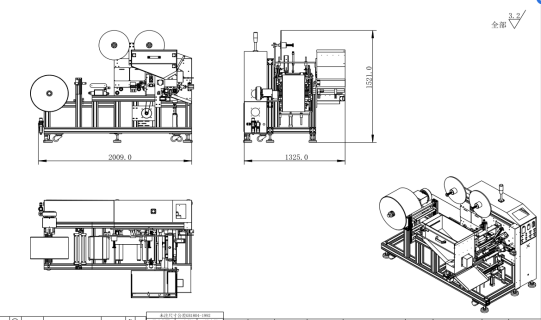

Equipment Layout

Customized Automatic Rewinding Machine Servo Motor Control Masking Film Laminating Machine

Customized Automatic Rewinding Machine Servo Motor Control Masking Film Laminating Machine
