150m/min Automatic Rewinding Machine Glueless Paper Roll Rewinder With Core ZRF-600DY
150m/min Automatic Rewinding Machine Glueless Paper Roll Rewinder With Core ZRF-600DY
Specifications
Model Number :
ZRF-600DY
Unroll paper core :
3inch
Delivery Time :
15-30 working days
Power Supply :
380V 50HZ
MOQ :
1 set
Packaging Details :
Wooden Case
Maximum Diameter of Roll :
80mm
Payment Terms :
T/T
Mechanical Speed :
0-150m/min
Place of Origin :
CHINA
Maximum roll diameter :
80mm
Certification :
VERIFICATION OF CONFORMITY
Price :
Negotiable
Brand Name :
ZHIROBO
Name :
Automatic Rewinding Machine
Supply Ability :
10 sets per month
Description
Fully Automatic Glueless Rewinding Machine with Core ZRF-600DY

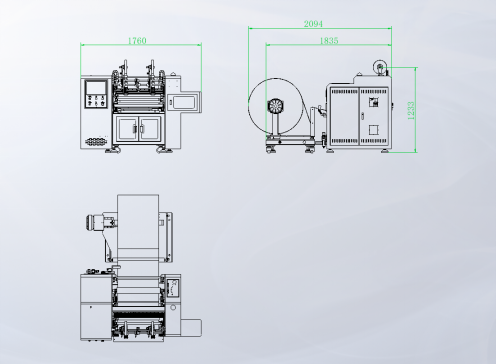

Equipment Layout
150m/min Automatic Rewinding Machine Glueless Paper Roll Rewinder With Core ZRF-600DY
Product Overview
Model ZRF-600DY
Type Fully Automatic Glueless Rewinding Machine with Core
Application Suitable for various glueless materials such as: advertising paper, kraft paper, wallpaper, etc.
Technical Specifications
Effective Discharge Width: 300-600mm
Maximum Discharge Diameter: 800mm
Unroll Paper Core: 3 inch
Inner Diameter of Reel: 26mm (can change)
Maximum Diameter of Roll: 80mm
Mechanical Speed: 0-150m/min
Power Supply: 380V 50HZ
Air Source: 5KG (customer self-provided)
System Configurations
Discharge Configuration
Component Specification Quantity Brand
Discharge Seat Extended spooling of 3 inches 1 set
Brake Control System Automatic control of cone taper for unwinding tension 1 set
Correction System CPC automatic deviation correction 1 set EURDOW
Examination Paper Configuration
Component Specification Quantity Brand
Collect the Scroll 26mm air expansion shaft (replaceable) 1 set
Reel Motor 1KW servo motor 1 set HCFA
Traction Motor 1.8KW servo motor 1 set HCFA
Traction Reducer Straight gear planetary reducer 1 set SMITECH
Rolling Tension System Motion controller linear control 1 set HCEA
Rolling Shutter Mechanism 1KW servo winding machine 1 set
Final Labeling Configuration
Component Specification Quantity Brand
Sealing Label Servo control labeling length (adhesive tape) 2 sets
Labeling Motor 750W servo motor 1 set HCFA
Labeling Reducer Straight gear planetary reducer 1 set
Cutting Knife Mechanism Tungsten steel round knife rotary cutting (with blade washing function) 1 set
Cutting Blade Motor 30W DC brushless motor 1 set MAIOLI
Electrical Control Department Configuration
Component Specification Quantity Brand
Control System Motion control system (One-click start, easy to change specifications) 1 set HCFA
Operation Panel Set production parameters and tension control parameters 1 set 10-inch MCGS HMI
Control Box Embedded control box with push-button panel 1 set
Other Configurations
Guide Roller: Surface hard coating
Documentation & Accessories
  • Chinese and English instructions - Two copies each in electronic format and paper format (2 sets)
  • Operation Video (1 set)
  • Electrical wiring diagram - Two copies each in electronic format and paper format (2 sets)
  • Gas and Liquid Principle Diagram - Two copies each in electronic format and paper format (2 sets)
  • List of vulnerable parts and spare parts - Two copies each in electronic format and paper format (2 sets)
  • Common tools (1 set)
