Glue Free Rewinding Machine Fully Automatic Aluminium Foil Rewinding Machine 15KW
Glue Free Rewinding Machine Fully Automatic Aluminium Foil Rewinding Machine 15KW
Specifications
Model Number :
ZRF-1300W
MOQ :
1 set
Paper core :
76 (Customizable & freely replaceable components)
Rewinding diameter :
100-160mm
Payment Terms :
T/T
Supply Ability :
10 sets per month
Power supply :
380V 50/60HZ/15KW
Packaging Details :
Wooden Case
Price :
Negotiable
Rewind width :
W(800-1300)mm
Production speed :
200m/min 4-5pcs/min(15m)
Place of Origin :
CHINA
Unwinding master roll :
800mm(MAX)
Delivery Time :
15-30 working days
Brand Name :
ZHIROBO
Name :
Automatic Rewinding Machine
Certification :
VERIFICATION OF CONFORMITY
Description
Fully Automatic Glue-Free Rewinding Machine ZRF-1300W
Primary Applications

Mainly used for glue-free rewinding of materials such as aluminum foil tape, copper foil tape, automotive paint protection film, advertising paper, color-changing film, and kraft paper.

Product Features
  • PC-based motion control system with 11 servo motors for enhanced stability and efficiency
  • High-precision indexer drive with 4-axis automatic switching for non-stop production
  • Automatic labeling at winding and finishing sections for flat joints
  • Automatic smoothing rollers prevent material wrinkles during sealing
  • Self-developed zero-friction zero-contact rewinding structure
  • Servo-driven automatic shifting pressure roller maintains consistent gap
  • Hydraulic brake automatic loading prevents master roll paper core deformation
  • Automatic alarm and shutdown for material absence to reduce waste
  • Built-in automatic deviation correction for consistent product quality
  • Material receiving platform for easy threading and improved efficiency
  • Servo modules for adjustable label pulling/releasing with high accuracy
  • Mobile discharge table stores 20-40 finished rolls
  • Fully automated process from paper core loading to discharging
  • Automatic tension control for stable operation and flat lamination
  • Digital linear tension increase for smooth winding force transition
  • Servo motor-driven feeding with accurate length calculation
  • Shaftless hydraulic brake unwinding for easy loading/unloading
  • Rotary cutting with tungsten steel circular knife and automatic cleaning
  • Comprehensive alarm system for material breakage and paper core shortage
  • HCFA motion control system with one-click start and easy specification changes
  • Enables unmanned production with minimal operator requirements
Technical Specifications
Parameter Specification
Model ZRF-1300
Paper Core 76mm (Customizable & freely replaceable components)
Unwinding Master Roll 800mm (MAX)
Rewinding Diameter 100-160mm
Rewind Width W(800-1300)mm
Production Speed 200m/min, 4-5pcs/min (15m) subject to rewinding length
Power Supply 380V 50/60HZ/15KW
Air Pressure 5KG
Machine Size 5239×5222×2082mm
Net Weight 3500KG
Configuration Details
Component Specification
Model SWF-1300
Touch Screen 14-inch MCGS HMI
Rack Wall Board 36mm
Motion Controller HCFA
Active Traction Servo System HCFA Motor & Driver
Reversing Servo System HCFA Motor & Driver
Adhesive Application System HCFA Motor & Driver
Label Pulling System HCFA Motor & Driver
Labeling Servo System HCFA Motor & Driver
Discharge Servo System HCFA Motor & Driver
Winding Press Roll System HCFA Motor & Driver
Traction Servo System HCFA Motor & Driver
Cutter Servo System HCFA Motor & Driver
Winding Servo System HCFA Motor & Driver
Pipe Threading System HCFA Motor & Driver
Finishing Servo System HCFA Motor & Driver
Four-axis Flip Divider JUJIU
Motor MaiLi
Cutter Motor MaiLi
Reducer SMETRE
Magnetic Powder Brake WREZUN
Air Switch CHINT
Switching Power Supply Mingwei China
Linear Guide KENIC
Deviation Correction System Youdao
Photoelectric Sensor BOJKE
Material Detection Sensor BOJKE
Proximity Switch Yangming
Contactor Schneider
Relay IDEA
Button Switch Schneider
Tri-color Warning Light TAYB
Solenoid Valve ASICKO
Cylinder AIRTAC
Linear Slide HIWIN
Magnetic Switch AIRTAC
Unwinding & Waste Collection 3 inch gas expansion shaft (TAIWAN CHINA)
Bearing NSK
Traction Shaft Nano coating for anti-sticking
Compression Roll Package of silica gel
Transition Roller Hard Anodizing
Scalpel 110MM tungsten steel round knife

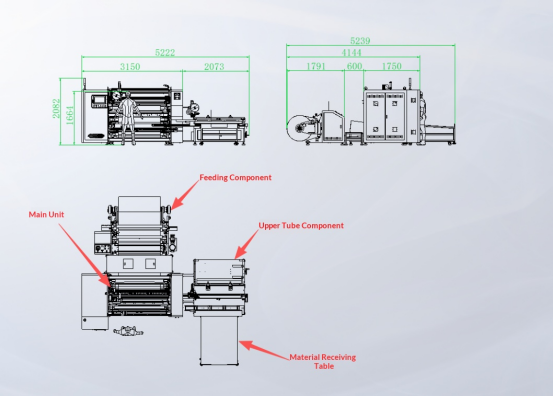

Equipment Overview
