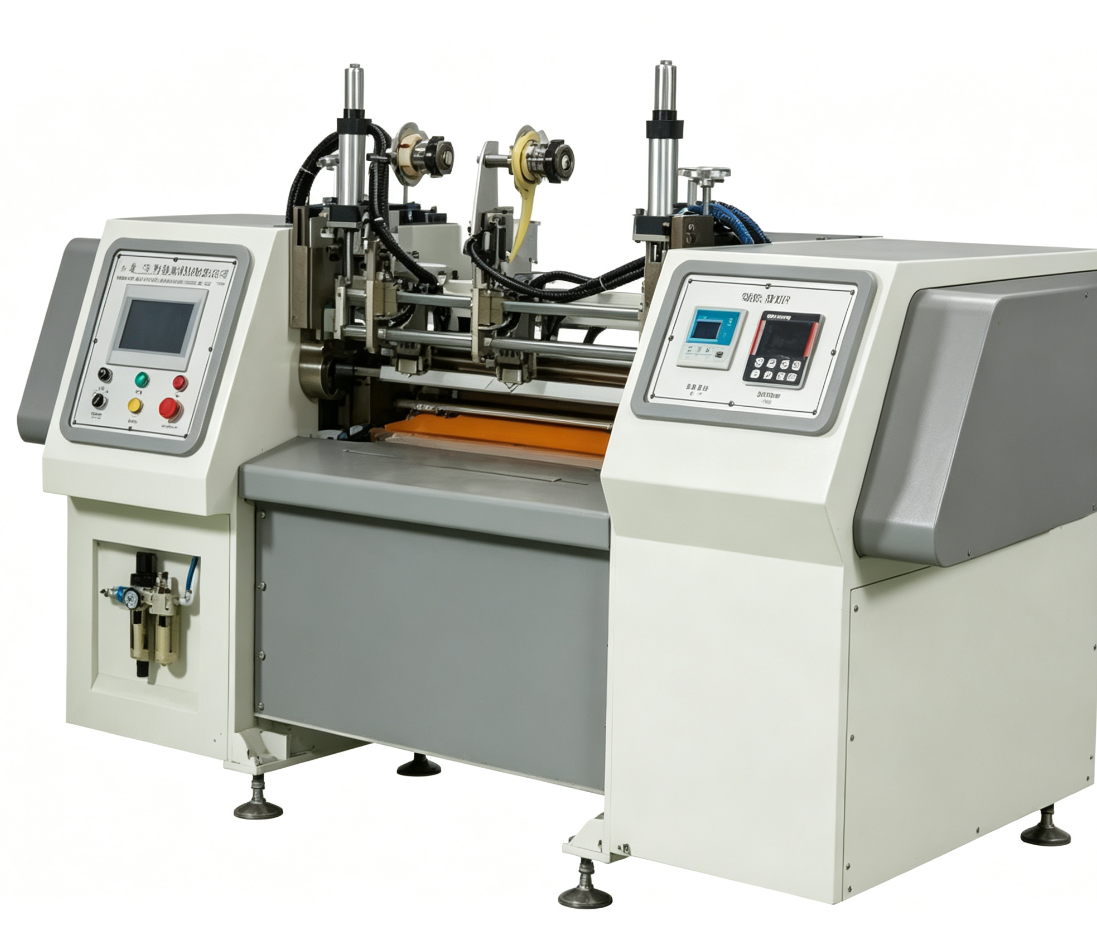

Precise Control Automatic Rewinding Machine 220V Glue Free Rewinding Machine
Precise Control Automatic Rewinding Machine 220V Glue Free Rewinding Machine
Specifications
Packaging Details :
Wooden Case
Model Number :
ZRF-D600
Rewinding Diameter :
20-150mm
Supply Ability :
10 sets per month
Weight :
800KG
Payment Terms :
T/T
Delivery Time :
15-30 working days
Color :
OEM
Certification :
VERIFICATION OF CONFORMITY
Place of Origin :
CHINA
Rewind Width :
W(0-600)mm
Price :
Negotiable
Brand Name :
ZHIROBO
Name :
Automatic Rewinding Machine
MOQ :
1 set
Unwinding Master Roll :
500mm Max. Unwind Roll Diameter 500mm
Description
Fullyautomatic Rewinding Machine ZRF-D600
Basic Use

Designed for adhesive-free rewinding applications, this machine is ideal for processing kraft paper, wallpaper, automotive films, and other flexible roll materials. It delivers high-precision rewinding with excellent roll quality while reducing material waste and production costs.

Key Features
  • Equipped with the Hokawa motion control system and advanced servo technology for precise winding control and synchronized material feeding.
  • Automatic core loading system improves production efficiency while reducing manual operation and labor requirements.
  • Intelligent tension control for both unwinding and rewinding ensures smooth acceleration and deceleration, maintaining consistent web tension throughout the entire process.
  • Servo-driven torque winding provides accurate tension adjustment, resulting in compact, even rolls with smooth and flat roll edges.
  • Supports coreless rewinding with automatic tail-end tape sealing, eliminating the need for adhesive bonding during the rewinding process.
  • Integrated Hokkaido control system enables fully automatic, continuous coreless rewinding without glue, improving production consistency and operational efficiency.
  • Optimized automatic working sequence includes material clamping, cutting, tail label application, roll contraction, automatic unloading, and preparation for the next rewinding cycle, ensuring uninterrupted and highly efficient production.
Advantages
  • Glue-free and coreless rewinding technology
  • Stable tension control for premium roll quality
  • High automation with minimal operator intervention
  • Faster production cycle and improved productivity
  • Suitable for a wide range of paper, film, and flexible packaging materials
Main Technical Parameters
Model ZRF-D600
Paper Core Collecting the answers
Unwinding Master Roll 500mm Max. Unwind Roll Diameter 500mm
Rewinding Diameter 20-150mm
Rewind Width W(0-600)mm
Production Speed Mechanical Line Speed 120m/min
Power Supply 220V 50/60HZ 4KW
Air Pressure 5KG
Machine Size 2100*1500*1400mm
Net Weight 800KG
Configuration Parameters
Model ZRF-D600
Touch Screen 7-inch MCGS HMI
Rack Wall Panel 36mm
Movement Controller HCFA
Active Traction Servo Motor HCFA
Active Traction Servo Driver HCFA
Receiving Roll Servo Motor HCFA
Rolling Shutter Servo Driver HCFA
Solenoid Valve ASICKO
Cylinder AIRTAC
Linear Slide HIWIN
Magnetic Switch AIRTAC
Unroll 3-inch Air Expansion Shaft Taiwan, China
Bearing NSK
Traction Shaft Precision grinding roller
Compression Roller Silicone package
Transitional Roller European standard aluminum guide wheels

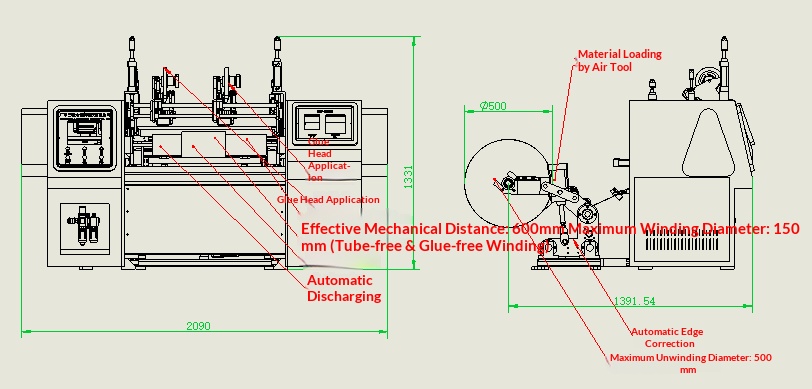

Plan Sketch

Precise Control Automatic Rewinding Machine 220V Glue Free Rewinding Machine

Precise Control Automatic Rewinding Machine 220V Glue Free Rewinding Machine
