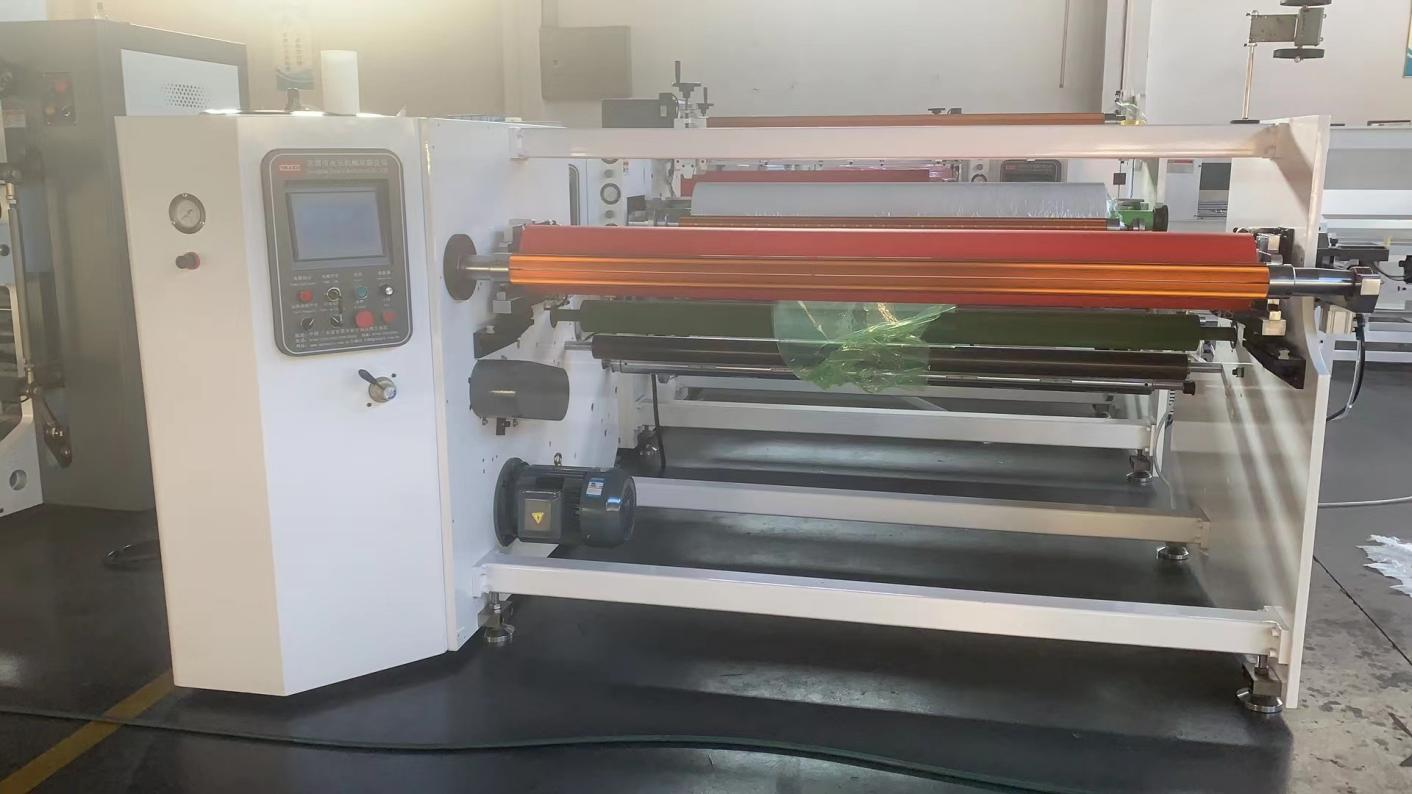

Single shaft rewinding machine ZRJ-1601B with 1600mm rewind width, 150m/min linear speed, and automatic taper tension control
Single shaft rewinding machine ZRJ-1601B with 1600mm rewind width, 150m/min linear speed, and automatic taper tension control
Specifications
Model Number :
ZRJ-1601B
Model :
ZRJ-1601B
Machine size :
4330*5400*1800mm
Weight :
1.2T
Certification :
VERIFICATION OF CONFORMITY
MOQ :
1 set
Powersupply :
380V, 50Hz, 3-phase
Function :
Rewinding rolls of material
Payment Terms :
T/T
air pressure :
5kgf/cm²
Place of Origin :
CHINA
Price :
Negotiable
Packaging Details :
Wooden Case
Brand Name :
ZHIROBO
Type :
Wrapping Machine
Rewinding diameter :
350mm
Rewind width :
Automatic 1600mmcontrol system
Delivery Time :
15-30 working days
Production speed :
Max. linear speed 150m/min; 4-5 rolls/min (for 15m length, subject to rewind length)
Description
Basic Use

This machine is specially designed for rewinding adhesive materials including Kapton (polyimide) tape, electronic protective film, PE film, TPU film, PET film, kraft paper, washi tape, BOPP tape and acrylic adhesive tape.

Equipment Advantages
  • Adopts HCFA motion control system with automatic taper tension function, which automatically adjusts tension according to material thickness and winding diameter during rewinding.
  • Servo-driven rewinding; dual servo control for main traction and auxiliary traction; servo-controlled rewinding press roller.
  • Dual servo-driven automatic shifting electronic press wheel, which automatically follows changes in material thickness and roll length, maintains consistent gap between press roller and rewind shaft, to ensure flat and neat finished rolls.
  • Automatic tension control for unwind and rewind, stable tension and smooth start/stop; servo motor torque rewinding delivers precise and stable tension, delivering high-quality rewinding with neat roll edges.
  • All rollers contacting adhesive surface are treated with plasma nano-coating for excellent anti-stick performance.
  • Equipped with double bowed (banana) spreading rollers, suitable for rewinding Kapton tape, green polyester tape and other sensitive materials.
  • Unwind station is fitted with silencing rollers, which reduces noise when rewinding high-noise materials, especially effective for BOPP tape rewinding.
  • 10-inch HMI touch screen for simple and intuitive operation.
Main Technical Parameters
Model ZRJ-1601B
paper core Customizable per customer requirements, interchangeable; available sizes: 38/50/76mm
Unwinding master roll Max. Unwind Master Roll Diameter 800mm
Rewinding diameter 350mm
Rewind width 1600mm
Production speed Max. linear speed 150m/min; 4-5 rolls/min (for 15m length, subject to rewind length)
power supply 380V 50/60HZ/18KW
air pressure 5kgf/cm²
Machine size 4330*5400*1800mm
Weight 1.2T
Configuration Parameters
Model ZRJ-1601B
HMI Touch Screen 10-inch MCGS (Kunlun Tongtai)
Frame Wall Plate 30mm
Motion Controller hcfa
Main Traction Servo Motor hcfa
Main Traction Servo Driver hcfa
Auxiliary Traction Servo Motor hcfa
Auxiliary Traction Servo Driver hcfa
Rewind Press Roller Servo Motor hcfa
Rewind Press Roller Servo Driver hcfa
Rewind Servo Motor hcfa
Rewind Servo Driver hcfa
Core Loading Servo Motor hcfa
Core Loading Servo Driver hcfa
Unwind Shaft 3-inch key type air expanding shaft
Rewind Shaft 3-inch leaf type air expanding shaft
Motor MaiLi
Planetary Gear Reducer Smetre
Magnetic Particle Brake WREZUN
Air Circuit Breaker chint
Switching Power Supply Mingwei
Photoelectric Sensor BOJKE
Proximity Switch Yangming
AC Contactor Schneider
Relay IDEA
Push Button Switch Schneider
Three-Color Signal Tower Light TʌYB

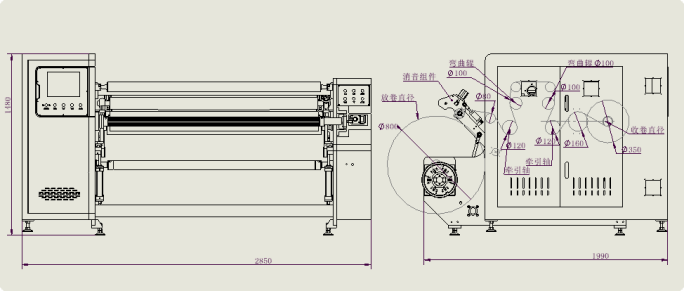

Equipment Layout
