Masking Film Rewinding Machine Semi Automatic Roll Rewinding Machine Double Head For Shoe Material
Masking Film Rewinding Machine Semi Automatic Roll Rewinding Machine Double Head For Shoe Material
Specifications
Place of Origin :
CHINA
Delivery Time :
15-30 working days
Tensioncontrol :
Automatic tension control system
Payment Terms :
T/T
Net Weight :
451KG
Color :
RAL7035/OEM
Size :
1460*1560*1200
Brand Name :
ZHIROBO
Certification :
VERIFICATION OF CONFORMITY
power supply :
4P220V 50/60HZ/3KW
MOQ :
1 set
Price :
Negotiable
Model Number :
ZRTB-2S
Function :
Automatically rewinds materials such as paper, film, foil, and fabric
Description
Semi-automatic double head shoe material masking film rewinding machine ZRTB-2S
Basic Use

This machine is specially designed for the winding and laminating of shoe material rolls and various flexible films. It combines precise servo control with intelligent tension management to deliver stable performance, high production efficiency, and superior roll quality, making it an ideal solution for footwear material processing.​

Key Features

  • Advanced servo motor torque winding technology ensures accurate tension control and produces neat, compact, and uniform rolls.​
  • Intelligent automatic tension control maintains stable web tension throughout the winding process, providing excellent edge alignment, wrinkle-free lamination, and smooth start/stop operation.​
  • Servo-driven material feeding system offers high positioning accuracy and precise length measurement, ensuring consistent production results.​
  • Equipped with a manual pneumatic expanding shaft for the unwinding unit, allowing quick and convenient roll loading and unloading while reducing downtime.​
  • Built-in monitoring system provides automatic alarms for film shortage, tape shortage, and material depletion, helping minimize production interruptions.​
  • One-touch operation with a user-friendly control interface enables quick setup and simple daily operation, reducing operator training time.​
  • Suitable for a wide range of shoe upper materials, laminating films, synthetic leather, fabrics, and other flexible web materials.​

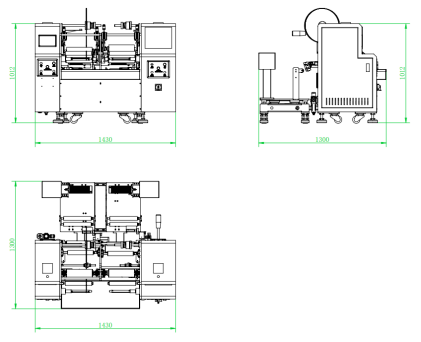

Equipment LayoutMasking Film Rewinding Machine Semi Automatic Roll Rewinding Machine Double Head For Shoe Material


Advantages

  • High-precision servo control​
  • Stable tension for premium laminating quality​
  • Accurate length control and material handling​
  • Easy operation with intelligent alarm functions​
  • Reliable performance for continuous industrial production
Main Technical Parameters
Model ZRTB-2S
paper core Customized according to customer requirements
Unwinding master roll ≤600mm
Rewinding diameter <150mm
Rewind width Φ(50-200)mm
Production speed 4-7pcs/MIN (Subject to rewinding length)
power supply 4P220V 50/60HZ/3KW
air pressure 0.5MPa
Machine size 1460*1560*1200
Net Weight 451KG
Configuration parameters
model ZRTB-2S
touch screen Mcgstpc
Edge corrector ARISE
Magnetic powder clutch YOSEEN
air switch chint
switching power supply Mingwei
Edge correction power supply Mingwei
photoelectric sensor OMRON
Material detection sensor DCF
contactor Schneider
relay Schneider
Button switch Kndele
Tri-color warning light TʌYB
Solenoid valve China STNC
Cylinder CNTUOPU
Rodless cylinder CNTUOPU
Linear slide HIWIN
Magnetic switch AIRTAC
bearing NSK,HRB
drive spindle Embossed Teflon surface anti-stick treatment
nip roll Silicone lagging (non-adhesive)
scalpel 40MM tungsten steel round knife
transition roller Anti-skid belt surface treatment (to prevent material running)
