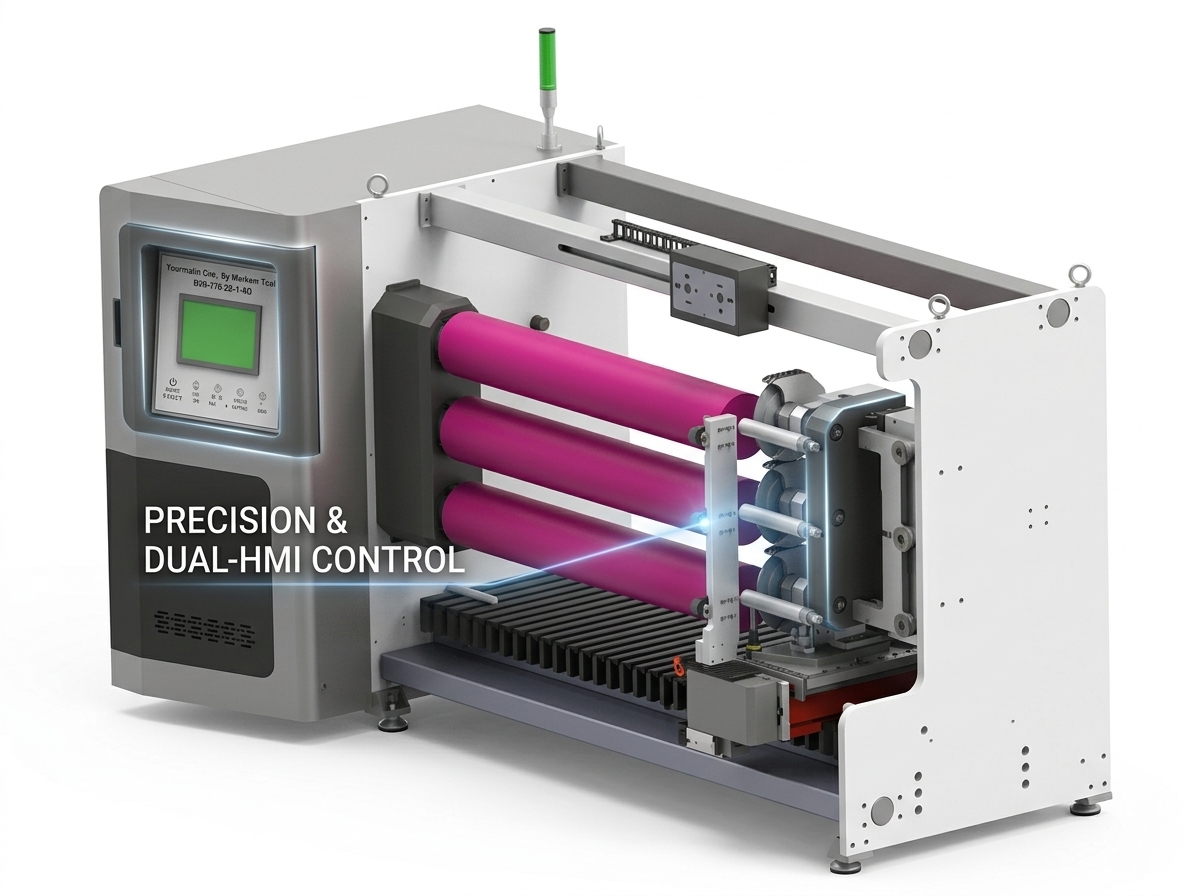

ZRT-1300-G3 High Precision Servo Slitting Machine with 1500W Cross Travel 0.02mm Accuracy
ZRT-1300-G3 High Precision Servo Slitting Machine with 1500W Cross Travel 0.02mm Accuracy
Specifications
Air Pressure :
5KG
Model Number :
ZRT-1300-G3
Place of Origin :
China
Delivery Time :
30-45 working days
Positioning Accuracy :
±0.02mm within 1000mm
Payment Terms :
T/T
Power Supply :
380V 50/60Hz 13KW
Cutting Width :
0.5-1300mm
Brand Name :
ZRT
MOQ :
1 Set
Supply Ability :
30 Sets per Month
Swing Angle Servo :
400W + SFS 1610 (±9.5°)
Net Weight :
1.5T
Packaging Details :
Export-grade wooden case with shock-proof foam
Cross Travel Servo :
1500W + SFS 3210 + HG30
Price :
USD 15000-30000 / Set
Cutter Feed Servo :
1500W + SFS 3210 + HG30
Certification :
ISO 9001:2015
Model :
ZRT-1300-G3
Description

ZRT-1300-G3 High Precision Servo Slitting Machine

ZRT-1300-G3 is an automatic 3-shaft cutting machine built for high-precision slitting. Its core strength is the servo positioning system delivering ±0.02mm accuracy within 1000mm travel for electronic film, PE, TPU, PET and BOPP materials.

Key Features

  • 0.02mm Positioning Accuracy — cross-travel achieves ±0.02mm tolerance within 1000mm travel for precision slitting.
  • 1500W Servo Cross Travel — driven by SFS 3210 ball screw and HG30 linear guideway.
  • 1500W Servo Knife Feed — SFS 3210 ball screw and HG30 guideway ensure high feeding rigidity and cutting precision.
  • 400W Servo Swing Angle — SFS 1610 ball screw with adjustable swing angle range of +9.5° to -9.5°.
  • HC Motion Control System — reliable motion control for stable and accurate operation.

Technical Parameters

ModelZRT-1300-G3
Positioning Accuracy±0.02mm within 1000mm
Cross Travel Servo1500W + SFS 3210 + HG30
Cutter Feed Servo1500W + SFS 3210 + HG30
Swing Angle Servo400W + SFS 1610 (±9.5°)
Cutting Width (Min-Max)0.5-1300mm
Power Supply380V 50/60Hz 13KW
Air Pressure5KG
Machine SizeL3150 x W1700 x H1400mm
Net Weight1.5T

Equipped with dual-HMI control (15-inch and 7-inch touch screens) and a 5.5kW spindle motor plus 3kW circular knife motor.
