Specifications
Brand Name :
ZBDynamiX
Model Number :
ZHA-R83-101-DNN-CO-I
Place of Origin :
CHINA
MOQ :
2
Price :
To be negotiate
Payment Terms :
L/C,T/T,D/P
Supply Ability :
1000+ units
Delivery Time :
15 work days
Packaging Details :
Standard export package
Description
Key Attributes

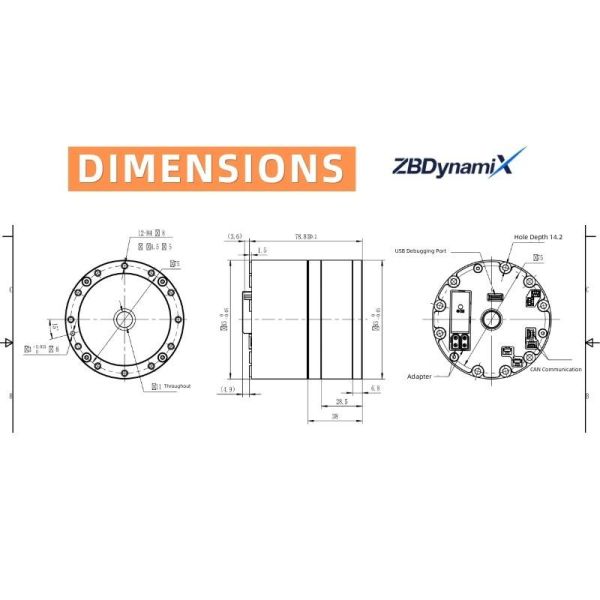

Dimensions R83*78.8mm
Mass 1.26kg
Reduction Ratio 101:1
Output Speed (RPM) 30RPM
Nominal Torque 53Nm
Peak Torque 120Nm
Backlash 30 arcsec
Nominal Voltage 48V
Nominal Power 288W
Motor Nominal Speed (RPM) 3000
Nominal Current 6A
Peak Current 15.9A
Encoder Specs Dual Encoder, 19bit
Communication Protocol(Optional) EtherCAT/CANOpen/CANFD
Control Loop Frequency Current: 20KHz, Vel: 10KHz
Application in Robotics Shoulder/Elbow/Knee/Waist
