ZBDynamiX ZHA-R102-161-DBN-I Compact Harmonic Joint Actuator | 350 Nm Peak Torque, 161:1 Ratio, Ø102×88 mm
ZBDynamiX ZHA-R102-161-DBN-I Compact Harmonic Joint Actuator | 350 Nm Peak Torque, 161:1 Ratio, Ø102×88 mm
ZBDynamiX ZHA-R102-161-DBN-I Compact Harmonic Joint Actuator | 350 Nm Peak Torque, 161:1 Ratio, Ø102×88 mm
ZBDynamiX ZHA-R102-161-DBN-I Compact Harmonic Joint Actuator | 350 Nm Peak Torque, 161:1 Ratio, Ø102×88 mm
ZBDynamiX ZHA-R102-161-DBN-I Compact Harmonic Joint Actuator | 350 Nm Peak Torque, 161:1 Ratio, Ø102×88 mm
ZBDynamiX ZHA-R102-161-DBN-I Compact Harmonic Joint Actuator | 350 Nm Peak Torque, 161:1 Ratio, Ø102×88 mm
ZBDynamiX ZHA-R102-161-DBN-I Compact Harmonic Joint Actuator | 350 Nm Peak Torque, 161:1 Ratio, Ø102×88 mm
ZBDynamiX ZHA-R102-161-DBN-I Compact Harmonic Joint Actuator | 350 Nm Peak Torque, 161:1 Ratio, Ø102×88 mm
ZBDynamiX ZHA-R102-161-DBN-I Compact Harmonic Joint Actuator | 350 Nm Peak Torque, 161:1 Ratio, Ø102×88 mm
ZBDynamiX ZHA-R102-161-DBN-I Compact Harmonic Joint Actuator | 350 Nm Peak Torque, 161:1 Ratio, Ø102×88 mm
ZBDynamiX ZHA-R102-161-DBN-I Compact Harmonic Joint Actuator | 350 Nm Peak Torque, 161:1 Ratio, Ø102×88 mm
ZBDynamiX ZHA-R102-161-DBN-I Compact Harmonic Joint Actuator | 350 Nm Peak Torque, 161:1 Ratio, Ø102×88 mm
ZBDynamiX ZHA-R102-161-DBN-I Compact Harmonic Joint Actuator | 350 Nm Peak Torque, 161:1 Ratio, Ø102×88 mm
ZBDynamiX ZHA-R102-161-DBN-I Compact Harmonic Joint Actuator | 350 Nm Peak Torque, 161:1 Ratio, Ø102×88 mm
Specifications
Delivery Time :
15 work days
Model Number :
ZHA-R102-161-DBN-I
Price :
To be negotiate
Packaging Details :
Standard export package
Supply Ability :
1000+ units
Payment Terms :
Paypal，T/T
Place of Origin :
CHINA
Brand Name :
ZBDynamiX
MOQ :
2
Description

Key Attributes

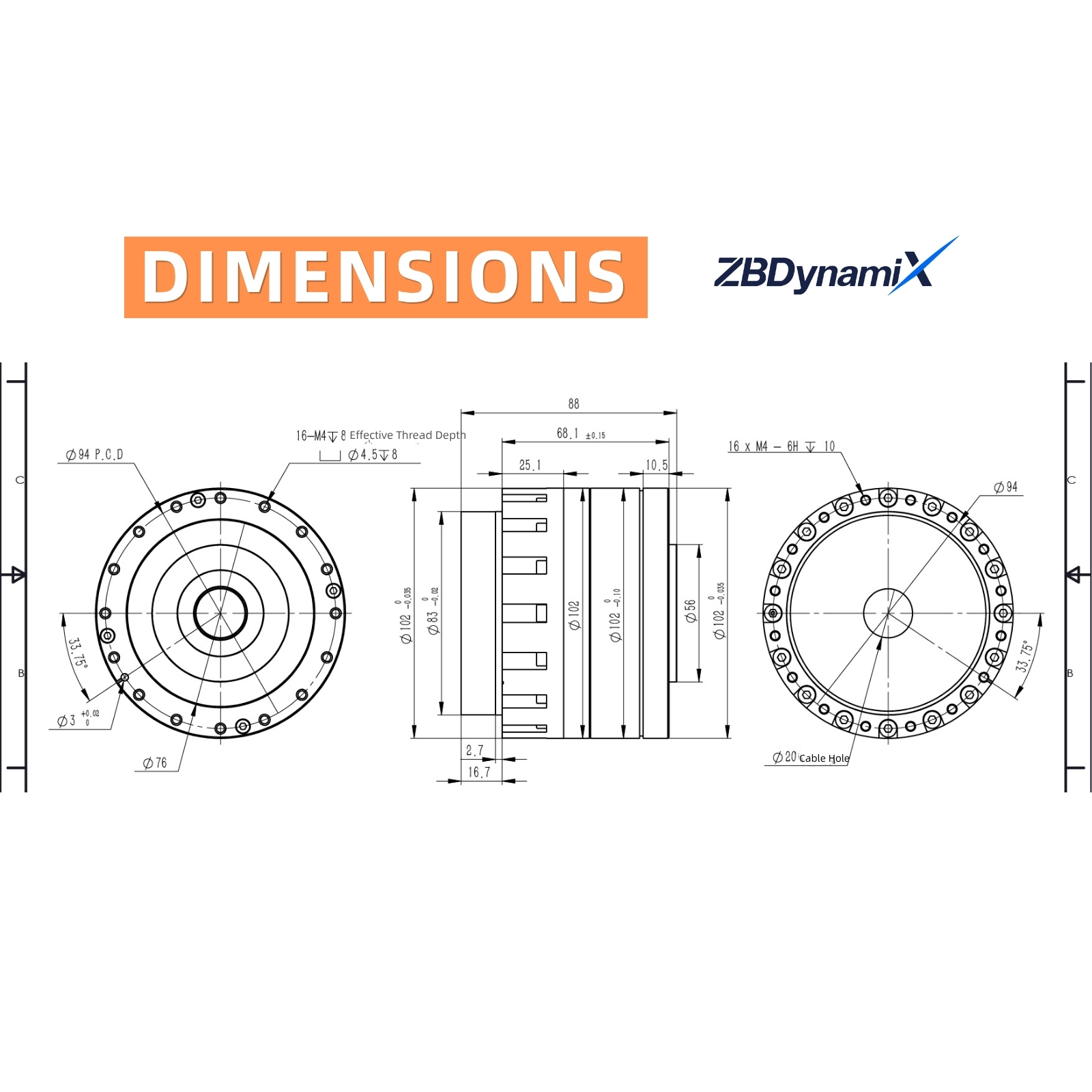

Dimensions R102*88mm
Mass 2.5kg
Reduction Ratio 161:1
Output Speed (RPM) 18RPM
Nominal Torque 147Nm
Peak Torque 350Nm
Backlash 30 arcsec
Nominal Voltage 48V
Nominal Power 446.4W
Motor Nominal Speed (RPM) 1800
Nominal Current 9.3A
Peak Current 33.8A
Encoder Specs Dual Encoder, 19bit
Communication Protocol(Optional) EtherCAT/CANOpen/CANFD
Control Loop Frequency (Current/Velocity) Current: 20KHz, Vel: 10KHz
Brake Static Torque 1.7Nm
Brake Release Time ≤100ms
Brake Engagement Time ≤50ms
Application in Robotics Waist/Hip
