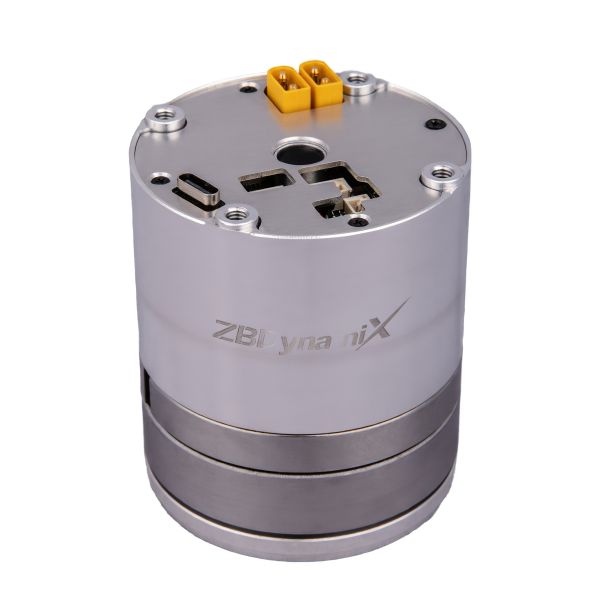

ZBDynamiX ZHA-R58-101-DNN-CO-I Integrated Harmonic Joint Actuator | 45 Nm Peak Torque, 101:1 Ratio, OD58 mm
ZBDynamiX ZHA-R58-101-DNN-CO-I Integrated Harmonic Joint Actuator | 45 Nm Peak Torque, 101:1 Ratio, OD58 mm
ZBDynamiX ZHA-R58-101-DNN-CO-I Integrated Harmonic Joint Actuator | 45 Nm Peak Torque, 101:1 Ratio, OD58 mm
ZBDynamiX ZHA-R58-101-DNN-CO-I Integrated Harmonic Joint Actuator | 45 Nm Peak Torque, 101:1 Ratio, OD58 mm
ZBDynamiX ZHA-R58-101-DNN-CO-I Integrated Harmonic Joint Actuator | 45 Nm Peak Torque, 101:1 Ratio, OD58 mm
ZBDynamiX ZHA-R58-101-DNN-CO-I Integrated Harmonic Joint Actuator | 45 Nm Peak Torque, 101:1 Ratio, OD58 mm
ZBDynamiX ZHA-R58-101-DNN-CO-I Integrated Harmonic Joint Actuator | 45 Nm Peak Torque, 101:1 Ratio, OD58 mm
ZBDynamiX ZHA-R58-101-DNN-CO-I Integrated Harmonic Joint Actuator | 45 Nm Peak Torque, 101:1 Ratio, OD58 mm
ZBDynamiX ZHA-R58-101-DNN-CO-I Integrated Harmonic Joint Actuator | 45 Nm Peak Torque, 101:1 Ratio, OD58 mm
ZBDynamiX ZHA-R58-101-DNN-CO-I Integrated Harmonic Joint Actuator | 45 Nm Peak Torque, 101:1 Ratio, OD58 mm
ZBDynamiX ZHA-R58-101-DNN-CO-I Integrated Harmonic Joint Actuator | 45 Nm Peak Torque, 101:1 Ratio, OD58 mm
ZBDynamiX ZHA-R58-101-DNN-CO-I Integrated Harmonic Joint Actuator | 45 Nm Peak Torque, 101:1 Ratio, OD58 mm
ZBDynamiX ZHA-R58-101-DNN-CO-I Integrated Harmonic Joint Actuator | 45 Nm Peak Torque, 101:1 Ratio, OD58 mm
ZBDynamiX ZHA-R58-101-DNN-CO-I Integrated Harmonic Joint Actuator | 45 Nm Peak Torque, 101:1 Ratio, OD58 mm
ZBDynamiX ZHA-R58-101-DNN-CO-I Integrated Harmonic Joint Actuator | 45 Nm Peak Torque, 101:1 Ratio, OD58 mm
ZBDynamiX ZHA-R58-101-DNN-CO-I Integrated Harmonic Joint Actuator | 45 Nm Peak Torque, 101:1 Ratio, OD58 mm
ZBDynamiX ZHA-R58-101-DNN-CO-I Integrated Harmonic Joint Actuator | 45 Nm Peak Torque, 101:1 Ratio, OD58 mm
ZBDynamiX ZHA-R58-101-DNN-CO-I Integrated Harmonic Joint Actuator | 45 Nm Peak Torque, 101:1 Ratio, OD58 mm
ZBDynamiX ZHA-R58-101-DNN-CO-I Integrated Harmonic Joint Actuator | 45 Nm Peak Torque, 101:1 Ratio, OD58 mm
ZBDynamiX ZHA-R58-101-DNN-CO-I Integrated Harmonic Joint Actuator | 45 Nm Peak Torque, 101:1 Ratio, OD58 mm
ZBDynamiX ZHA-R58-101-DNN-CO-I Integrated Harmonic Joint Actuator | 45 Nm Peak Torque, 101:1 Ratio, OD58 mm
ZBDynamiX ZHA-R58-101-DNN-CO-I Integrated Harmonic Joint Actuator | 45 Nm Peak Torque, 101:1 Ratio, OD58 mm
ZBDynamiX ZHA-R58-101-DNN-CO-I Integrated Harmonic Joint Actuator | 45 Nm Peak Torque, 101:1 Ratio, OD58 mm
ZBDynamiX ZHA-R58-101-DNN-CO-I Integrated Harmonic Joint Actuator | 45 Nm Peak Torque, 101:1 Ratio, OD58 mm
ZBDynamiX ZHA-R58-101-DNN-CO-I Integrated Harmonic Joint Actuator | 45 Nm Peak Torque, 101:1 Ratio, OD58 mm
ZBDynamiX ZHA-R58-101-DNN-CO-I Integrated Harmonic Joint Actuator | 45 Nm Peak Torque, 101:1 Ratio, OD58 mm
ZBDynamiX ZHA-R58-101-DNN-CO-I Integrated Harmonic Joint Actuator | 45 Nm Peak Torque, 101:1 Ratio, OD58 mm
ZBDynamiX ZHA-R58-101-DNN-CO-I Integrated Harmonic Joint Actuator | 45 Nm Peak Torque, 101:1 Ratio, OD58 mm
ZBDynamiX ZHA-R58-101-DNN-CO-I Integrated Harmonic Joint Actuator | 45 Nm Peak Torque, 101:1 Ratio, OD58 mm
ZBDynamiX ZHA-R58-101-DNN-CO-I Integrated Harmonic Joint Actuator | 45 Nm Peak Torque, 101:1 Ratio, OD58 mm
ZBDynamiX ZHA-R58-101-DNN-CO-I Integrated Harmonic Joint Actuator | 45 Nm Peak Torque, 101:1 Ratio, OD58 mm
ZBDynamiX ZHA-R58-101-DNN-CO-I Integrated Harmonic Joint Actuator | 45 Nm Peak Torque, 101:1 Ratio, OD58 mm
ZBDynamiX ZHA-R58-101-DNN-CO-I Integrated Harmonic Joint Actuator | 45 Nm Peak Torque, 101:1 Ratio, OD58 mm
ZBDynamiX ZHA-R58-101-DNN-CO-I Integrated Harmonic Joint Actuator | 45 Nm Peak Torque, 101:1 Ratio, OD58 mm
ZBDynamiX ZHA-R58-101-DNN-CO-I Integrated Harmonic Joint Actuator | 45 Nm Peak Torque, 101:1 Ratio, OD58 mm
ZBDynamiX ZHA-R58-101-DNN-CO-I Integrated Harmonic Joint Actuator | 45 Nm Peak Torque, 101:1 Ratio, OD58 mm
ZBDynamiX ZHA-R58-101-DNN-CO-I Integrated Harmonic Joint Actuator | 45 Nm Peak Torque, 101:1 Ratio, OD58 mm
ZBDynamiX ZHA-R58-101-DNN-CO-I Integrated Harmonic Joint Actuator | 45 Nm Peak Torque, 101:1 Ratio, OD58 mm
ZBDynamiX ZHA-R58-101-DNN-CO-I Integrated Harmonic Joint Actuator | 45 Nm Peak Torque, 101:1 Ratio, OD58 mm
ZBDynamiX ZHA-R58-101-DNN-CO-I Integrated Harmonic Joint Actuator | 45 Nm Peak Torque, 101:1 Ratio, OD58 mm
ZBDynamiX ZHA-R58-101-DNN-CO-I Integrated Harmonic Joint Actuator | 45 Nm Peak Torque, 101:1 Ratio, OD58 mm
ZBDynamiX ZHA-R58-101-DNN-CO-I Integrated Harmonic Joint Actuator | 45 Nm Peak Torque, 101:1 Ratio, OD58 mm
Specifications
Brand Name :
ZBDynamiX
Model Number :
ZHA-R58-101-DNN-CO-I
Place of Origin :
CHINA
MOQ :
2
Price :
To be negotiate
Payment Terms :
Paypal，T/T
Supply Ability :
1000+ units
Delivery Time :
30 work days
Packaging Details :
Standard export package
Description

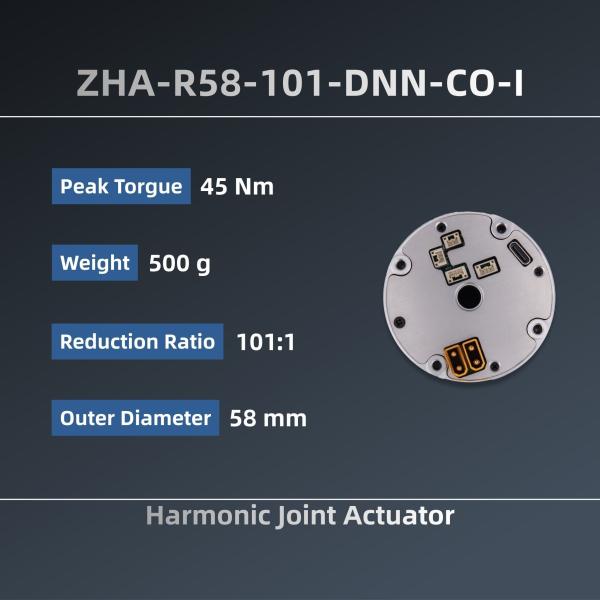

Key Attributes

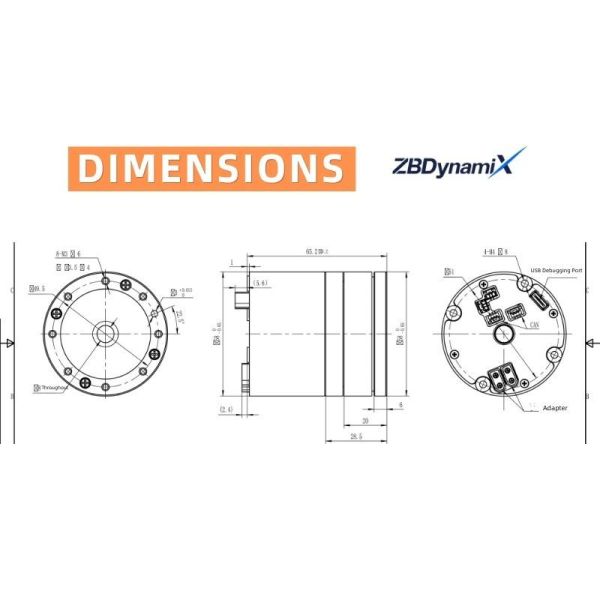

Dimensions R58*65.2mm
Mass 0.55kg
Reduction Ratio 101:1
Output Speed (RPM) 30RPM
Nominal Torque 20Nm
Peak Torque 45Nm
Backlash 30 arcsec
Nominal Voltage 48V
Nominal Power 168W
Motor Nominal Speed (RPM) 2500
Nominal Current 3.5A
Peak Current 10.8A
Encoder Specs Dual Encoder, 19bit
Communication Protocol(Optional) EtherCAT/CANOpen/CANFD
Control Loop Frequency (Current/Velocity) Current: 20KHz, Vel: 10KHz

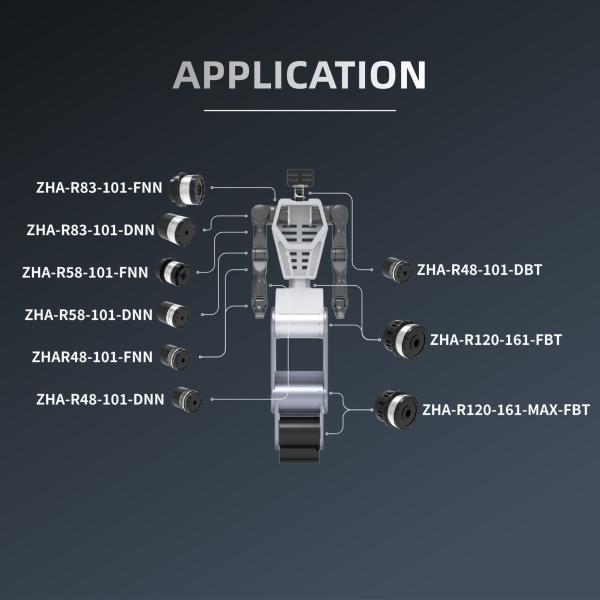

Application in Robotics Head/Wrist
