ZBDynamiX ZHA-Lite-R68-101-DNN-I Lightweight Harmonic Joint Actuator | 82 Nm Peak Torque, 101:1 Ratio, OD68 mm
ZBDynamiX ZHA-Lite-R68-101-DNN-I Lightweight Harmonic Joint Actuator | 82 Nm Peak Torque, 101:1 Ratio, OD68 mm
ZBDynamiX ZHA-Lite-R68-101-DNN-I Lightweight Harmonic Joint Actuator | 82 Nm Peak Torque, 101:1 Ratio, OD68 mm
ZBDynamiX ZHA-Lite-R68-101-DNN-I Lightweight Harmonic Joint Actuator | 82 Nm Peak Torque, 101:1 Ratio, OD68 mm
ZBDynamiX ZHA-Lite-R68-101-DNN-I Lightweight Harmonic Joint Actuator | 82 Nm Peak Torque, 101:1 Ratio, OD68 mm
ZBDynamiX ZHA-Lite-R68-101-DNN-I Lightweight Harmonic Joint Actuator | 82 Nm Peak Torque, 101:1 Ratio, OD68 mm
ZBDynamiX ZHA-Lite-R68-101-DNN-I Lightweight Harmonic Joint Actuator | 82 Nm Peak Torque, 101:1 Ratio, OD68 mm
ZBDynamiX ZHA-Lite-R68-101-DNN-I Lightweight Harmonic Joint Actuator | 82 Nm Peak Torque, 101:1 Ratio, OD68 mm
ZBDynamiX ZHA-Lite-R68-101-DNN-I Lightweight Harmonic Joint Actuator | 82 Nm Peak Torque, 101:1 Ratio, OD68 mm
ZBDynamiX ZHA-Lite-R68-101-DNN-I Lightweight Harmonic Joint Actuator | 82 Nm Peak Torque, 101:1 Ratio, OD68 mm
ZBDynamiX ZHA-Lite-R68-101-DNN-I Lightweight Harmonic Joint Actuator | 82 Nm Peak Torque, 101:1 Ratio, OD68 mm
ZBDynamiX ZHA-Lite-R68-101-DNN-I Lightweight Harmonic Joint Actuator | 82 Nm Peak Torque, 101:1 Ratio, OD68 mm
ZBDynamiX ZHA-Lite-R68-101-DNN-I Lightweight Harmonic Joint Actuator | 82 Nm Peak Torque, 101:1 Ratio, OD68 mm
ZBDynamiX ZHA-Lite-R68-101-DNN-I Lightweight Harmonic Joint Actuator | 82 Nm Peak Torque, 101:1 Ratio, OD68 mm
Specifications
Delivery Time :
15 work days
Model Number :
ZHA-Lite-R68-101-DNN-I
Price :
To be negotiate
Packaging Details :
Standard export package
Supply Ability :
1000+ units
Payment Terms :
Paypal，T/T
Place of Origin :
CHINA
Brand Name :
ZBDynamiX
MOQ :
2
Description

Key Attributes

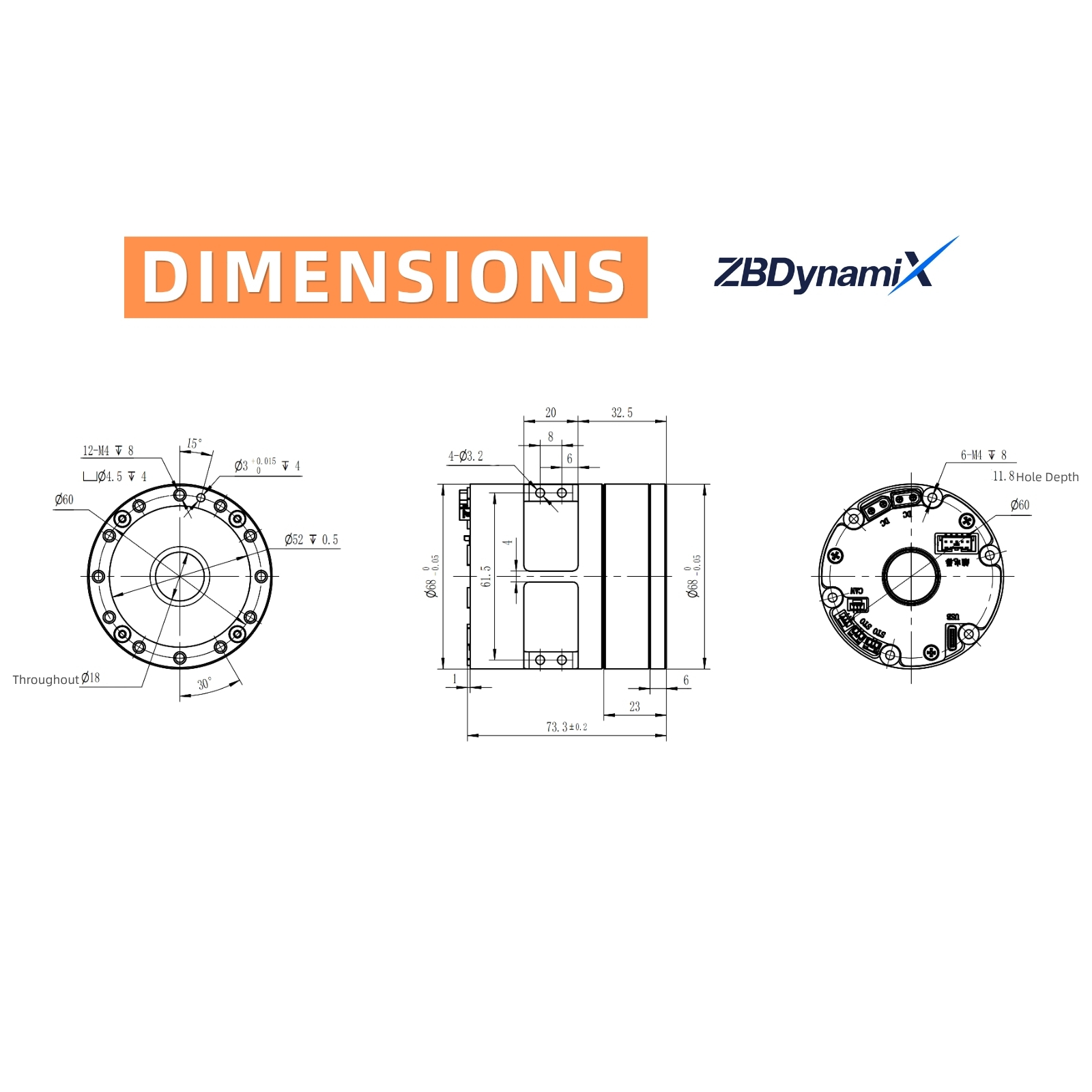

Dimensions R68*73.3±0.2mm
Mass 0.74kg
Reduction Ratio 101:1
Output Speed (RPM) 30RPM
Nominal Torque 33Nm
Peak Torque 82Nm
Backlash <30 arcsec
Nominal Voltage 48V
Nominal Power 260.16W
Nominal Current 5.42A
Peak Current 16.3A
Encoder Specs Dual Encoder, 21bit
Communication Protocol(Optional) CAN
Application in Robotics Shoulder/Elbow/Knee/Waist
