Specifications
Brand Name :
ZBDynamiX
Model Number :
ZHA-R48-101-DNN-CO-I
Place of Origin :
CHINA
MOQ :
2
Price :
To be negotiate
Payment Terms :
L/C,T/T,D/P
Supply Ability :
1000+ units
Delivery Time :
15 work days
Packaging Details :
Standard export package
Description

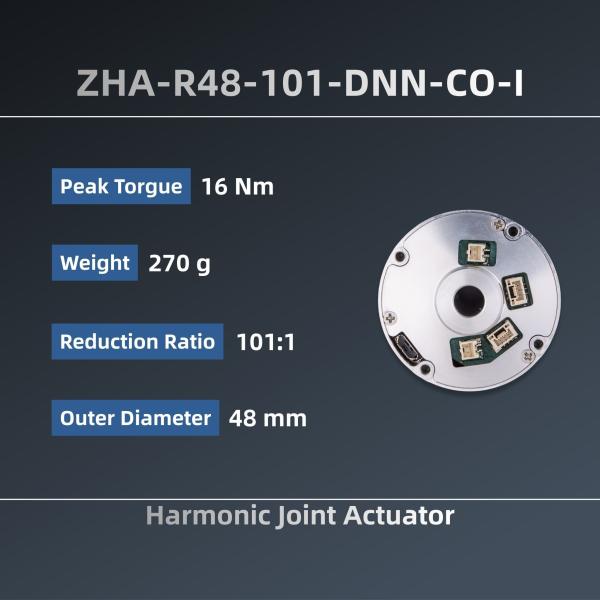

Key Attributes

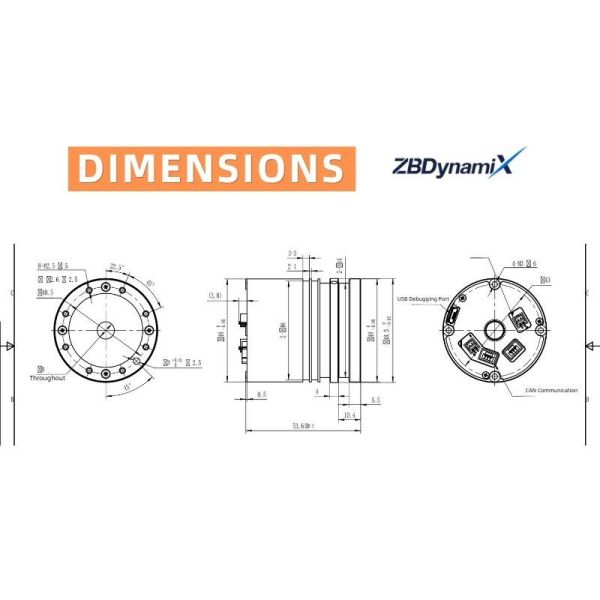

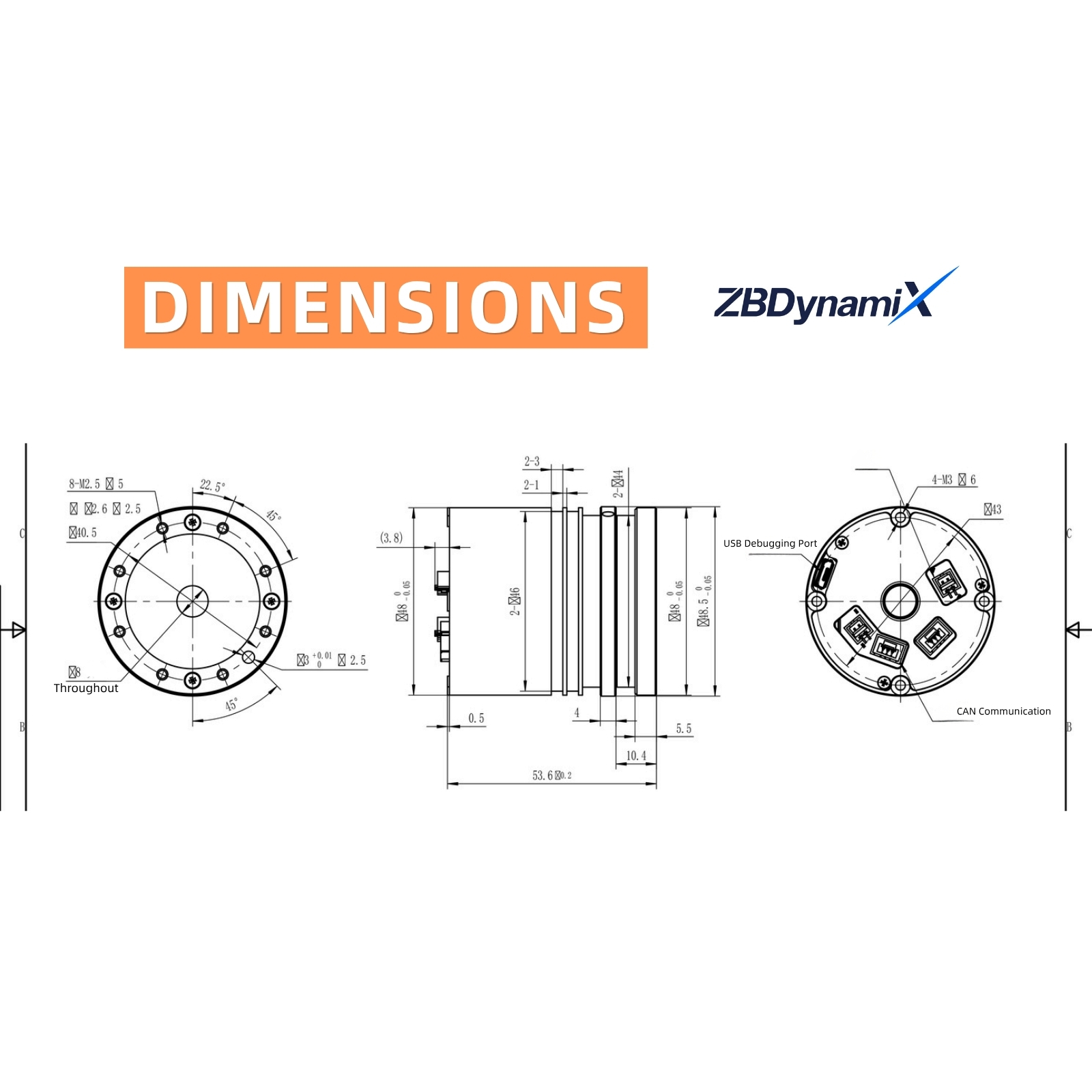

Dimensions R48*53.6mm
Mass 0.27kg
Reduction Ratio 101:1
Output Speed (RPM) 30RPM
Nominal Torque 6.5Nm
Peak Torque 16Nm
Backlash 30 arcsec
Nominal Voltage 48V
Nominal Power 62.4W
Motor Nominal Speed (RPM) 2500
Nominal Current 1.3A
Peak Current 3.2A
Encoder Specs Dual Encoder, 19bit
Communication Protocol(Optional) EtherCAT/CANOpen/CANFD
Control Loop Frequency Current: 20KHz, Vel: 10KHz
Application in Robotics Head/Wrist
