Specifications
Model Number :
HD-390C
Brand Name :
imhoo
Place of Origin :
Jiangsu, China
MOQ :
1 piece
Price :
$8.20-11.60 / piece
Measuring Current Range :
0.1-250mA
Measuring Voltage Range :
0.25-1000v
Dimensions :
160*105*40mm
Measuring Capacitance Range :
/
Measuring Inductance Range :
/
Measuring Resistance Range :
0.1Ω-20MΩ
Operating Temperature :
0-40℃
color :
red,blue
transistor test :
yes
continuity buzzer test :
yes
decibel test :
yes
Description
MF47 Internal Magnetic Pointer Type Multimeter

Professional mechanical analog multimeter with high precision and fire protection features for accurate electrical measurements.

MF47 Internal Magnetic Pointer Multimeter Mechanical High Precision Fire Protection MF47 Internal Magnetic Pointer Multimeter Mechanical High Precision Fire Protection MF47 Internal Magnetic Pointer Multimeter Mechanical High Precision Fire Protection MF47 Internal Magnetic Pointer Multimeter Mechanical High Precision Fire Protection
Key Features & Specifications
MF47 Internal Magnetic Pointer Multimeter Mechanical High Precision Fire Protection

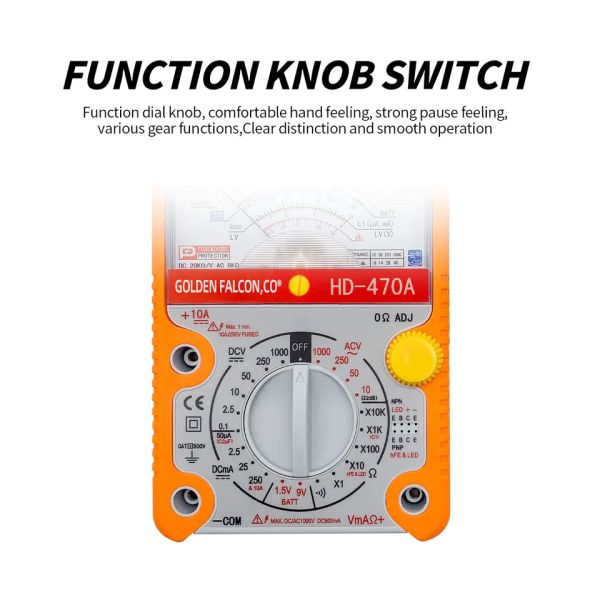

  • 22 test ranges across 8 working functions
  • Heavy ABS plastic housing with compact protective holster
  • Adjustable back tilt stand with hook-up design
  • High input impedance: 10KΩ/V DCV and 4.5 KΩ/V ACV
  • Advanced overload protection with fast-acting 0.5A/250V fuse
  • DC voltage range (±3.0% F.S.): 0.25/2.5/10/50/250/1000V
  • AC voltage range (±4.0% F.S.): 10/50/250/1000V
  • DC current range (±3.0% F.S.): 0.1/2.5/25/250mA, 10A (±4.0% F.S.) without 10A fuse
  • Resistance range (0.1Ω~20MΩ, ±3.0% of Arc.): x1, x10, x100, x1K, x10K
  • Dry battery check: 1.5V, 9V
  • Continuity buzzer testing
  • Transistor hFE check via front jack
  • Decibel test: -20~+62dB with external 0.047uF/400V polyester capacitor
  • Dimensions: 160×105×40mm, Weight: 320g approx.
  • Power supply: 6F22 9V dry battery (1pc) and AA size 1.5V battery (1pc)
Packaging Information
Packing Type White Box
Carton Size 53×38×32cm
Standard Packing per Carton 32pcs
Net Weight 18kg
Gross Weight 19kg
