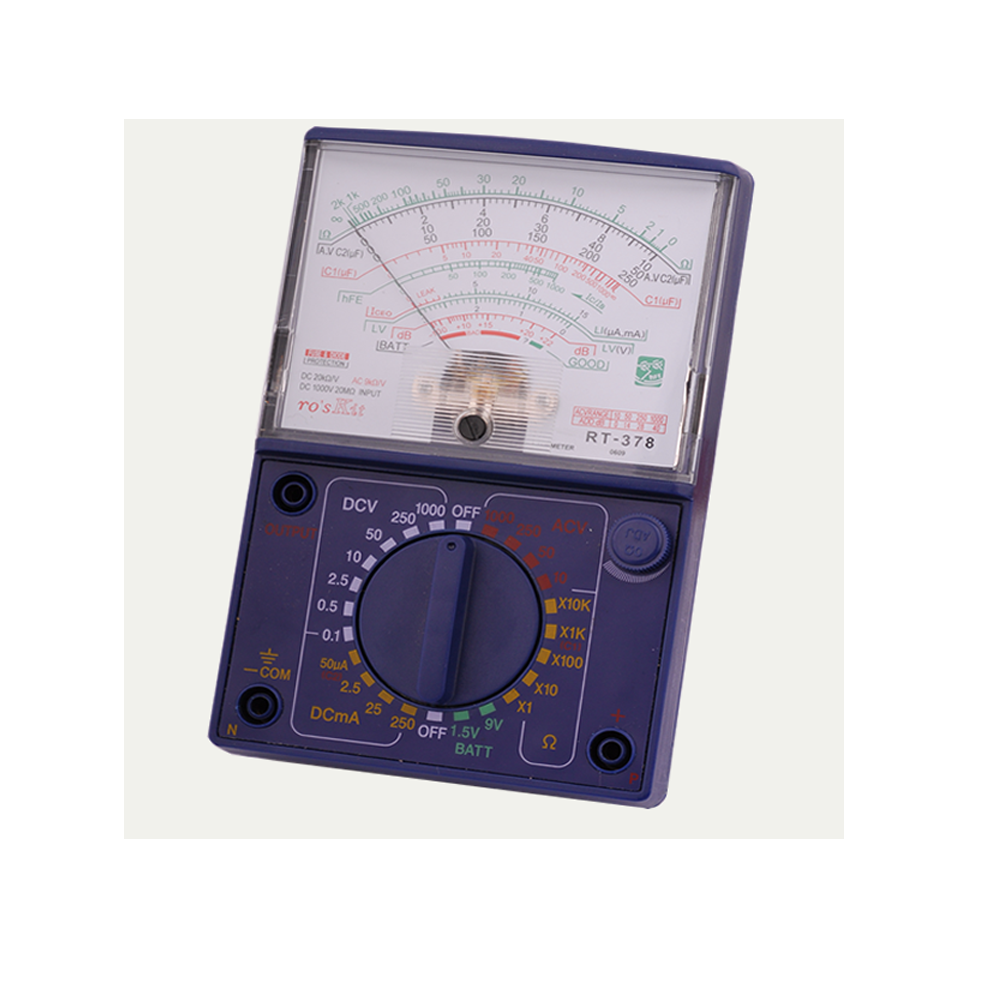

Professional Analog Multimeter 10V 50V 250V 1000V AC Voltage Range
Professional Analog Multimeter 10V 50V 250V 1000V AC Voltage Range
Professional Analog Multimeter 10V 50V 250V 1000V AC Voltage Range
Professional Analog Multimeter 10V 50V 250V 1000V AC Voltage Range
Professional Analog Multimeter 10V 50V 250V 1000V AC Voltage Range
Professional Analog Multimeter 10V 50V 250V 1000V AC Voltage Range
Specifications
Model Number :
378
Brand Name :
Imhoo
Place of Origin :
Jiangsu, China
MOQ :
1 piece
Price :
$6.93-8.50 / piece
Measuring Current Range :
0~250mA
Measuring Voltage Range :
0~1000V
Dimensions :
150*97*35mm
Measuring Capacitance Range :
null
Measuring Inductance Range :
null
Measuring Resistance Range :
0~10K
Operating Temperature :
0-40℃
color :
blue/black
Description
Professional Analog Multimeter
Advanced Testing Capabilities
  • Diode & Fuse Protection
    Leakage Current & Diode Test
    Transistor & LED Test
    Continuity Test With Buzzer
Technical Specifications
Item Specification Accuracy
High Input Impedance DC 20KΩ/V. AC 9KΩ/V -
AC Voltage Range 10/50/250/1000V ±4.0% F.S.
DC Voltage Range 0.1/0.5/2.5/10/50/250/1000V ±3.0% F.S.
DC Current Range 50u/2.5/25/250mA ±3.0% F.S.
Resistance Range X1. X10. X100. X1K.X10k ±4.0% of Arc.
Decibels Test 0~ +22dB -
hFE 0-1000 (with six special sockets provided on front scale) -
Battery Test 1.5V/9V -
Power Supply AA size 1.5V 2pcs/9V 1pcs -
Dimensions 150*97*35mm -
Weight 280g approx -
