Specifications
Model Number :
HD-390C
Brand Name :
imhoo
Place of Origin :
Jiangsu, China
MOQ :
1 piece
Price :
$8.20-11.60 / piece
Measuring Current Range :
0.1-250mA
Measuring Voltage Range :
0.25-1000v
Dimensions :
160*105*40mm
Measuring Capacitance Range :
/
Measuring Inductance Range :
/
Measuring Resistance Range :
0.1Ω-20MΩ
Operating Temperature :
0-40℃
color :
red,blue
transistor test :
yes
continuity buzzer test :
yes
decibel test :
yes
Description
Mf47 Pointer Multimeter Measurement of DC Voltmeter Ammeter Ohmmeter Analog by Capacitance of Multimeter
Mf47 Multitester Pointer Measurement Of DC Voltmeter Ammeter Ohmmeter Analog Mf47 Multitester Pointer Measurement Of DC Voltmeter Ammeter Ohmmeter Analog Mf47 Multitester Pointer Measurement Of DC Voltmeter Ammeter Ohmmeter Analog Mf47 Multitester Pointer Measurement Of DC Voltmeter Ammeter Ohmmeter Analog
Product Overview

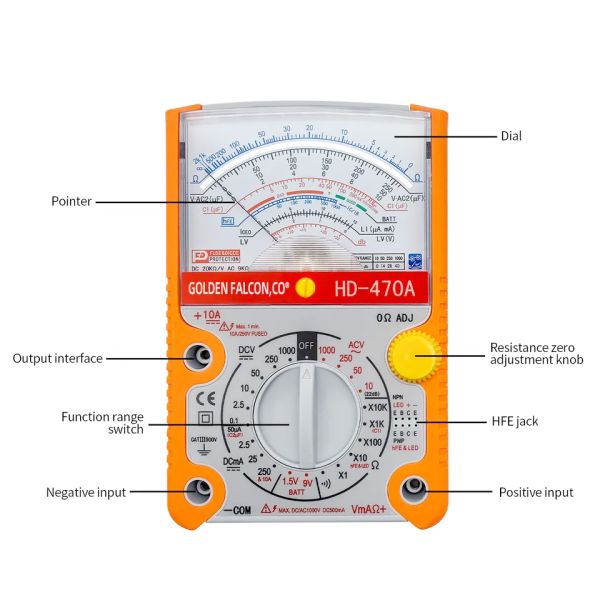

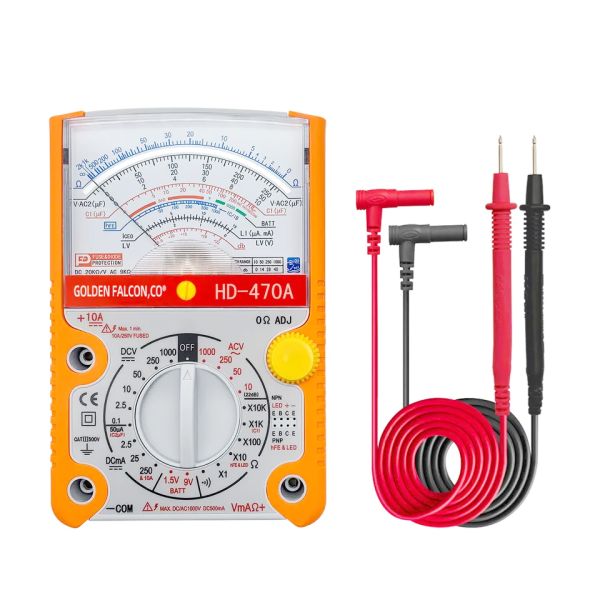

Professional MF47 analog pointer multimeter designed for accurate electrical measurements including DC voltage, current, resistance, and capacitance. Ideal for industrial, laboratory, and field service applications.

Mf47 Multitester Pointer Measurement Of DC Voltmeter Ammeter Ohmmeter Analog
Key Features
  • 22 test ranges with 8 working functions
  • Heavy-duty ABS plastic housing with protective holster
  • Adjustable back tilt stand with hook-up design
  • High input impedance: 10KΩ/V DCV and 4.5KΩ/V ACV
  • Advanced overload protection with fast-acting 0.5A/250V fuse
  • Continuity testing with audible buzzer
  • Direct transistor hFE check via front panel jack
  • Decibel measurement capability (-20 to +62dB)
Measurement Specifications
  • DC Voltage (±3.0% F.S.): 0.25V, 2.5V, 10V, 50V, 250V, 1000V
  • AC Voltage (±4.0% F.S.): 10V, 50V, 250V, 1000V
  • DC Current (±3.0% F.S.): 0.1mA, 2.5mA, 25mA, 250mA, 10A (±4.0% F.S.) without 10A fuse
  • Resistance (0.1Ω~20MΩ, ±3.0% of Arc): x1, x10, x100, x1K, x10K
  • Battery Check: 1.5V, 9V dry batteries
Physical Specifications
  • Dimensions: 160×105×40mm
  • Weight: Approximately 320g
  • Power Supply: 6F22 9V dry battery (1pc) and AA size 1.5V battery (1pc)
Packaging Information
Packing Type White Box
Carton Size 53×38×32cm
Standard Packing per Carton 32 pieces
Net Weight 18kg
Gross Weight 19kg
Mf47 Multitester Pointer Measurement Of DC Voltmeter Ammeter Ohmmeter Analog
