0.05-250mA 10A Measuring Current Range Analog Multimeter 0.1-500V
0.05-250mA 10A Measuring Current Range Analog Multimeter 0.1-500V
0.05-250mA 10A Measuring Current Range Analog Multimeter 0.1-500V
0.05-250mA 10A Measuring Current Range Analog Multimeter 0.1-500V
0.05-250mA 10A Measuring Current Range Analog Multimeter 0.1-500V
0.05-250mA 10A Measuring Current Range Analog Multimeter 0.1-500V
0.05-250mA 10A Measuring Current Range Analog Multimeter 0.1-500V
0.05-250mA 10A Measuring Current Range Analog Multimeter 0.1-500V
0.05-250mA 10A Measuring Current Range Analog Multimeter 0.1-500V
0.05-250mA 10A Measuring Current Range Analog Multimeter 0.1-500V
Specifications
Model Number :
HD-396
Brand Name :
imhoo
Place of Origin :
Jiangsu, China
MOQ :
1 piece
Price :
$29-35 / piece
Measuring Current Range :
0.05-250mA,10A
Measuring Voltage Range :
0.1-500v
Dimensions :
160*105*40mm
Measuring Capacitance Range :
null
Measuring Inductance Range :
null
Measuring Resistance Range :
null
Operating Temperature :
0-40℃
color :
red
transistor test :
yes
continuity buzzer test :
yes
decibel test :
yes
style :
fashion
packing :
box
working function :
11 kinds
various test range :
yes
Description
Low Price Analog Multimeter Made in China
High-quality analog multimeter manufactured in China with comprehensive testing capabilities and robust protection features.
Key Features
  • High-quality taut-band movement with perfect linearity
  • 25 test ranges across 11 working functions
  • Comprehensive overload protection with high-voltage fuses (0.5A/500V & 10A/500V)
  • Compact protective holster included
  • Wide testing scope for current, voltage, and resistance measurements
  • Auto power-off after 15 minutes with restore function
  • Adjustable back tilt stand with hook-up design
  • Continuity test with audible buzzer
  • Leakage current and diode testing capabilities
  • Transistor testing via test leads
  • Over-voltage protection: CAT III 500V, CAT II 1000V
Technical Specifications
Measurement Type Range Accuracy
True RMS AC Voltage 0.1/0.5/2.5/10/50/250/500V ±4.0% F.S.
True RMS AC Current 0.05/0.25/2.5/25/250mA, 10A ±4.0% F.S.
DC Voltage 0.1/0.5/2.5/10/50/250/500V ±3.0% F.S.
DC Current 0.05/0.25/2.5/25/250mA, 10A ±3.0% F.S.
Resistance X1, X10, X100, X1K, X10K, X100K ±3.0% of Arc
Frequency Test 0.25K/2.5K/25K Hz -
Decibels Test -20~+62dB via test leads -
Physical Specifications
Dimensions: 160 × 105 × 40mm
Weight: Approximately 470g
Power Supply: 6F22 9V (1pc), AA size 1.5V (2pcs)
Input Impedance: 20KΩ at all ACV & DCV ranges

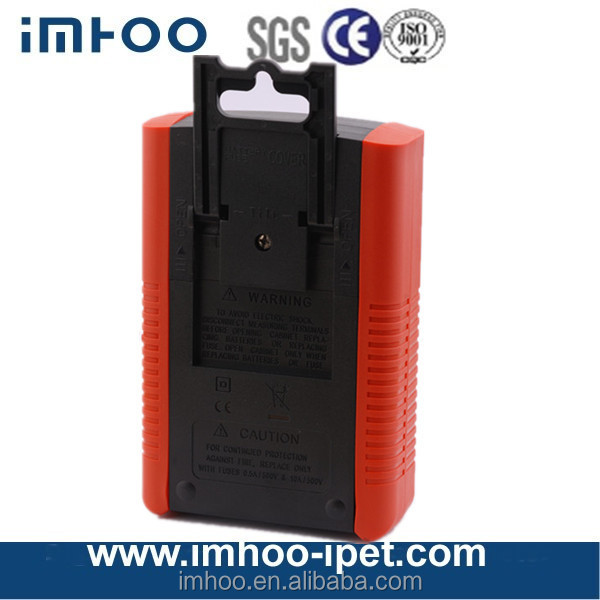

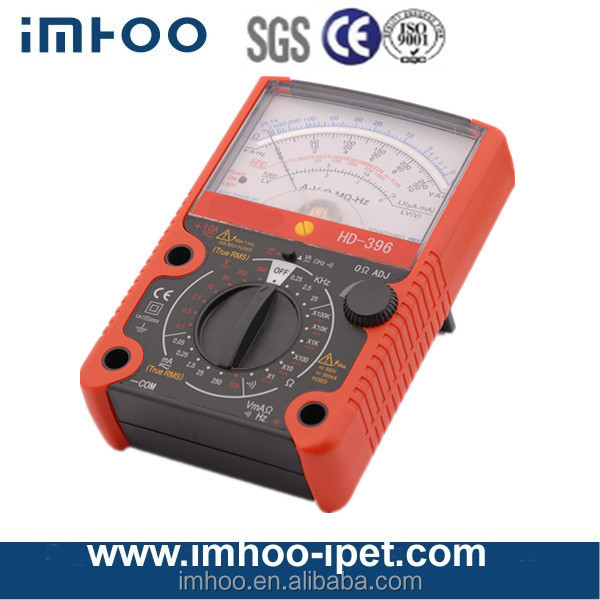

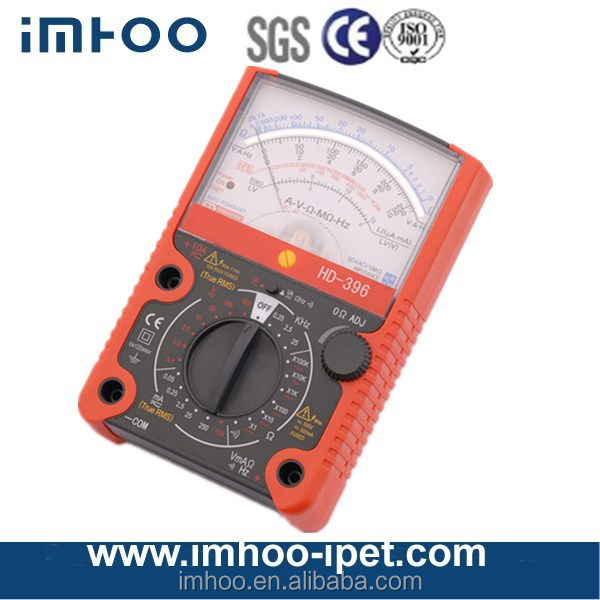

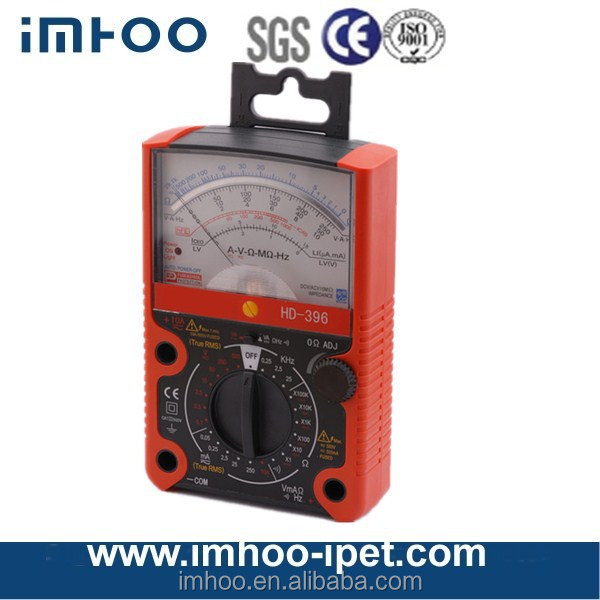

Product Images
0.05-250mA 10A Measuring Current Range Analog Multimeter 0.1-500V 0.05-250mA 10A Measuring Current Range Analog Multimeter 0.1-500V 0.05-250mA 10A Measuring Current Range Analog Multimeter 0.1-500V 0.05-250mA 10A Measuring Current Range Analog Multimeter 0.1-500V

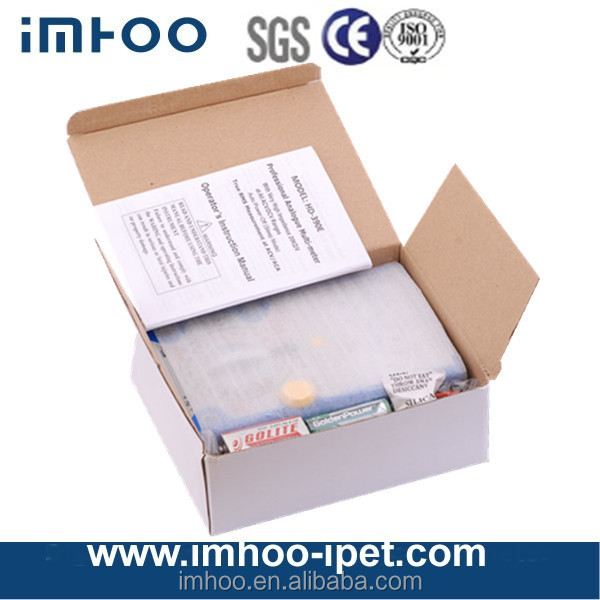

Packaging Information
Packing Type White Box
Carton Size 53 × 38 × 32cm
Standard Packing per Carton 32pcs
Net Weight 18kg
Gross Weight 19kg
0.05-250mA 10A Measuring Current Range Analog Multimeter 0.1-500V
Our Services
  • High quality products at competitive prices
  • Reliable delivery commitments - we deliver on time as promised
  • Quality assurance - we replenish any quality issues after customer receipt
  • OEM services available
  • Custom product research and development based on customer requirements
