200mV 0-450V Measuring Range Digital Panel Voltmeter PM438 LCD Meter
200mV 0-450V Measuring Range Digital Panel Voltmeter PM438 LCD Meter
200mV 0-450V Measuring Range Digital Panel Voltmeter PM438 LCD Meter
200mV 0-450V Measuring Range Digital Panel Voltmeter PM438 LCD Meter
Specifications
Model Number :
PM438
Brand Name :
ymiho
Place of Origin :
Wuxi, China
MOQ :
100
Price :
$1.50-2.50 / piece
Accuracy Class :
1.0, ±1%
Measuring Range :
200mV, DC 0-450V
Dimensions :
67 * 41 * 17mm, 67 * 41 * 17mm
Display Type :
Digital Only
Operating Temperature :
0-50℃, 0-50℃
color :
black
Standand Carton Size :
57 x 35 x 24cm
Standard Packing :
250pcs/CTN
N.W. :
8.5kg
G.W. :
9.5kg
HS Code :
8504902000
Packaging Details :
carton packaging
Delivery Time :
15 work days
Description

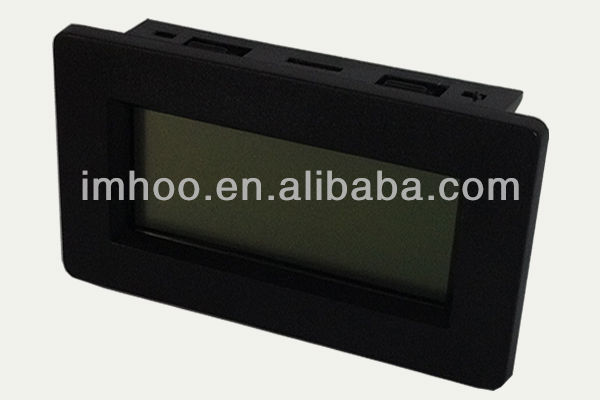

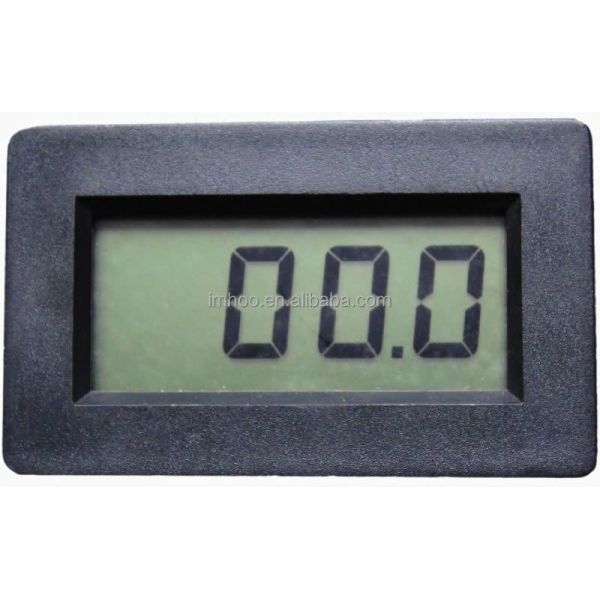

Digital Panel Voltmeter PM438 LCD Meter
The PM438 Digital Panel Voltmeter is a semi-finished professional monitoring instrument designed for current or voltage measurement in machinery and equipment applications.
Key Features
  • Professional current and voltage monitoring instrument
  • Semi-finished panel meter design
  • Ancillary product for machinery and equipment
Technical Specifications
Specification Details
Display 3 1/2 digits LCD with Max. Reading of 1999
Polarity Automatic, positive implied, negative polarity indication
Measurement Rate 2 times per sec. nominal
PM438 (Voltage Tester) DCV 0 ~ 450V (default: 200mV)
PM438A (Voltage Tester) ACV 0 ~ 400V (default: 400V)
PM438B (Current Tester) DCA 0 ~ 5A (default: 2A)
Power Supply 8-12V (Customizable according to customer requirements)
Accuracy ±(1%+3)
Resolution 0.1 mV or 0.1A
Display Size 48 × 21 mm LCD
Product Size 67 × 41 × 17mm
Installation Dimension 55 × 39 Square hole
Weight Approximately 23g
Product Images
200mV 0-450V Measuring Range Digital Panel Voltmeter PM438 LCD Meter
200mV 0-450V Measuring Range Digital Panel Voltmeter PM438 LCD Meter
200mV 0-450V Measuring Range Digital Panel Voltmeter PM438 LCD Meter
200mV 0-450V Measuring Range Digital Panel Voltmeter PM438 LCD Meter
Our Services
  • High Quality, Better Price - Competitive pricing without compromising quality
  • Integrity & Reliability - Committed to on-time delivery as promised to customers
  • Quality Assurance - We replenish any quality issues with the correct quantity upon customer verification
  • OEM Services - Custom manufacturing options available
  • Custom Development - Research and develop new products according to customer requirements
Frequently Asked Questions
Q: Are you a factory or trading company?
A: We are a factory
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Wuxi City, Jiangsu Province, China, about 1 hour train from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us!
Q: How can I get some samples?
A: We are honored to offer you samples.
Q: How does your factory do regarding quality control?
A: Quality is priority. IMHOO people always attach great importance to quality controlling from the very beginning to the very end.
