79 X 42 X 20mm LED Voltmeter PM436 Digital Voltmeter 5V Digital Only Display Type
79 X 42 X 20mm LED Voltmeter PM436 Digital Voltmeter 5V Digital Only Display Type
79 X 42 X 20mm LED Voltmeter PM436 Digital Voltmeter 5V Digital Only Display Type
79 X 42 X 20mm LED Voltmeter PM436 Digital Voltmeter 5V Digital Only Display Type
79 X 42 X 20mm LED Voltmeter PM436 Digital Voltmeter 5V Digital Only Display Type
79 X 42 X 20mm LED Voltmeter PM436 Digital Voltmeter 5V Digital Only Display Type
Specifications
Model Number :
PM436
Brand Name :
ymiho
Place of Origin :
Wuxi, China
MOQ :
100
Price :
$4.30-5.30 / piece
Accuracy Class :
1.0%
Measuring Range :
0-450V
Dimensions :
79 * 42 * 20mm
Display Type :
Digital Only
Operating Temperature :
0-50℃
color :
black
HS Code :
8504902000
Meter type :
voltmeter/ammeter/Thermometer...
Power suply :
5V
Resolution :
0.1 mV or 0.1A
MAX Display :
1999 counts
Product size :
79 * 42 * 20mm
Display size :
46 * 20 mm LED
Installation dimension :
76 * 39 Square hole
Product Weight :
About 25g
Packaging Details :
carton packaging
Delivery Time :
15 work days
Description

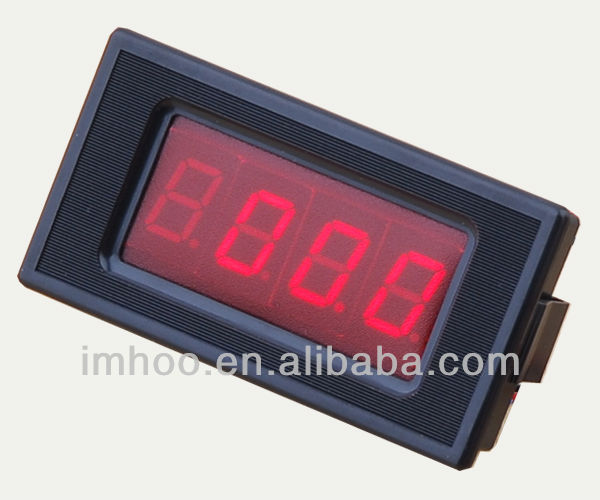

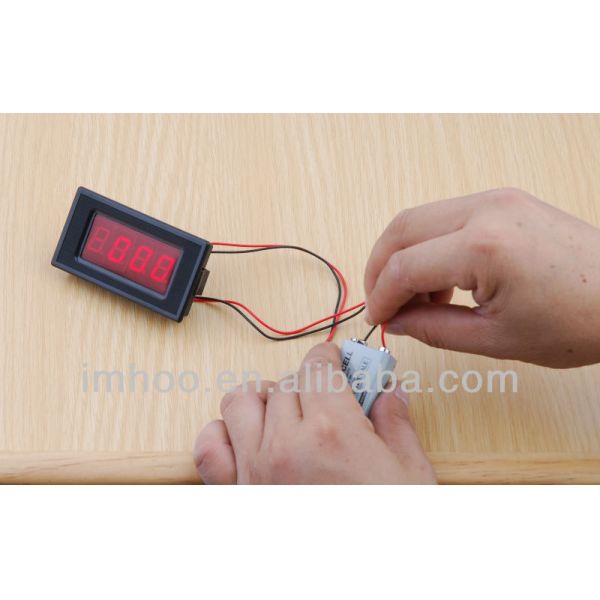

LED Voltmeter PM436 Digital Voltmeter
The PM43 Series Panel Meter is a compact, DC-powered instrument featuring LED display with backlight functionality for clear visibility in low-light conditions. With minimal power consumption and enhanced measurement precision through large-scale integration, this meter delivers reliable performance for various industrial applications.
Key Features
  • Automatic polarity indication
  • Selectable decimal point
  • Guaranteed zero reading for 0 volts input
  • Backlight display for low-light visibility
  • Low power consumption
  • Enhanced precision and reading stability
Applications
PM43 Series meters can be used as voltage meters, current meters, temperature meters, capacitance meters, PH meters, pressure meters, sound level counters, inductance meters, power meters, watt meters, and various other industrial measurement applications.
Technical Specifications
PM436 (Voltage Tester) DCV 0 ~ 450V (Default: 200mV)
PM436A (Voltage Tester) ACV 0 ~ 400V (Default: 400V)
PM436B (Current Tester) DCA 0 ~ 5A (Default: 2A)
Power Supply 5V (Customizable according to requirements)
Accuracy ±(1%+3)
Display Size 46 × 20 mm LED
Product Size 79 × 42 × 20mm
Installation Dimension 76 × 39 Square Hole
Resolution 0.1 mV or 0.1A
Product Images
79 X 42 X 20mm LED Voltmeter PM436 Digital Voltmeter 5V Digital Only Display Type 79 X 42 X 20mm LED Voltmeter PM436 Digital Voltmeter 5V Digital Only Display Type
Packaging & Shipping
Packing Type Gift Box (Customizable)
Standard Packing per Carton 250pcs/CTN
Carton Size 57 × 35 × 24cm
Net Weight 8.5kg
Gross Weight 9.5kg
79 X 42 X 20mm LED Voltmeter PM436 Digital Voltmeter 5V Digital Only Display Type 79 X 42 X 20mm LED Voltmeter PM436 Digital Voltmeter 5V Digital Only Display Type 79 X 42 X 20mm LED Voltmeter PM436 Digital Voltmeter 5V Digital Only Display Type 79 X 42 X 20mm LED Voltmeter PM436 Digital Voltmeter 5V Digital Only Display Type 79 X 42 X 20mm LED Voltmeter PM436 Digital Voltmeter 5V Digital Only Display Type
Our Services
  • High Quality, Better Price
  • Integrity: Committed to on-time delivery as promised to customers
  • Quality Assurance: If any quality issues occur after delivery, we will replenish the affected quantity
  • OEM Services: Custom manufacturing available
  • Custom Development: Research and develop new products according to customer requirements
Frequently Asked Questions
Q: Are you a factory or trading company? A: We are a factory.
Q: Where is your factory located? How can I visit there? A: Our factory is located in Wuxi City, Jiangsu Province, China, about 1 hour by high-speed rail from Shanghai Hongqiao station. All clients are warmly welcome to visit us!
Q: How can I get some samples? A: We offer samples. For samples under USD10.00, we provide free samples with customers paying only the freight cost.
Q: What's your MOQ? A: We accept trial orders of at least 1 piece per product.
Q: Which payment terms do you accept? A: We accept T/T, L/C, Western Union, PayPal.
Q: How does your factory handle quality control? A: Quality is our priority. We maintain strict quality control from beginning to end of the manufacturing process.
