Digital Voltmeter PM435 With Back Light Digital AC Voltmeter And Ammeter
Digital Voltmeter PM435 With Back Light Digital AC Voltmeter And Ammeter
Digital Voltmeter PM435 With Back Light Digital AC Voltmeter And Ammeter
Digital Voltmeter PM435 With Back Light Digital AC Voltmeter And Ammeter
Digital Voltmeter PM435 With Back Light Digital AC Voltmeter And Ammeter
Digital Voltmeter PM435 With Back Light Digital AC Voltmeter And Ammeter
Digital Voltmeter PM435 With Back Light Digital AC Voltmeter And Ammeter
Digital Voltmeter PM435 With Back Light Digital AC Voltmeter And Ammeter
Specifications
Model Number :
PM435
Brand Name :
ymiho
Place of Origin :
Wuxi, China
MOQ :
100
Price :
$3.20-3.90 / piece
Accuracy Class :
0.8%
Measuring Range :
0-600V
Dimensions :
67x40x13mm
Display Type :
Digital Only
Operating Temperature :
0-50℃
color :
black
HS Code :
8504902000
Display Size :
46*20mm
Back light :
Blue
Power Supply :
8-12V (Can be customized)
Accuracy :
±(1%+3)
Installation dimension :
76 * 39 Square hole
Weight :
Around 30g
Product size :
79 * 43 * 17mm
Packaging Details :
carton packaging
Delivery Time :
15 work days
Description
Digital Voltmeter PM435 with Back Light Digital AC Voltmeter and Ammeter
The PM435 Digital Panel Meter is a semi-finished professional instrument designed for current and voltage monitoring in machinery and equipment applications.
Technical Specifications
Display 3 1/2 digits LCD with maximum reading of 1999
Derivative Models PM435C (Temperature Tester): -30°C to 1700°C
PM435 (Voltage Tester): DCV 0-450V (default: 200mV)
PM435 (Voltage Tester): ACV 0-400V (default: 400V)
PM435B (Current Tester): DCA 0-5A (default: 2A)
PM435F (Frequency Tester): Default 20KHZ
Polarity Automatic, positive implied, negative polarity indication
Power Supply 8-12V (Customizable according to customer requirements)
Accuracy ±(1%+3)
Resolution 1°C (-30°C to 1700°C) | 0.1mV or 0.1A
Backlight Blue
Display Size 46×20mm LCD
Product Size 79×43×17mm
Installation Dimension 76×39mm Square Hole
Weight Approximately 30g

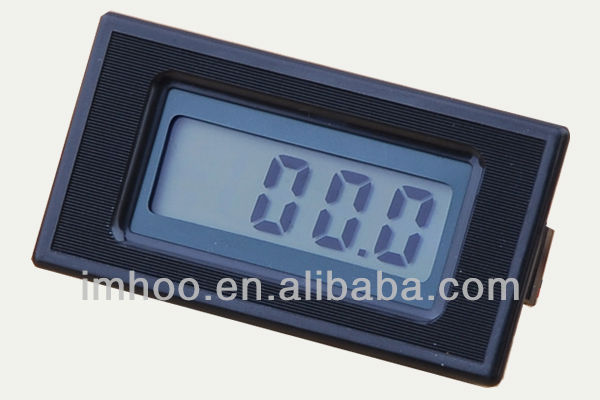

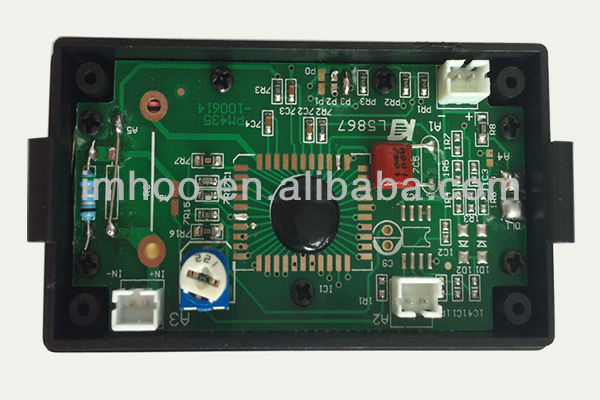

Product Images
