Switchboard Panel Analog Voltage Meter DC Voltmeter Panel Mount 1000V 110 X 110mm
Switchboard Panel Analog Voltage Meter DC Voltmeter Panel Mount 1000V 110 X 110mm
Switchboard Panel Analog Voltage Meter DC Voltmeter Panel Mount 1000V 110 X 110mm
Switchboard Panel Analog Voltage Meter DC Voltmeter Panel Mount 1000V 110 X 110mm
Switchboard Panel Analog Voltage Meter DC Voltmeter Panel Mount 1000V 110 X 110mm
Switchboard Panel Analog Voltage Meter DC Voltmeter Panel Mount 1000V 110 X 110mm
Switchboard Panel Analog Voltage Meter DC Voltmeter Panel Mount 1000V 110 X 110mm
Switchboard Panel Analog Voltage Meter DC Voltmeter Panel Mount 1000V 110 X 110mm
Switchboard Panel Analog Voltage Meter DC Voltmeter Panel Mount 1000V 110 X 110mm
Switchboard Panel Analog Voltage Meter DC Voltmeter Panel Mount 1000V 110 X 110mm
Switchboard Panel Analog Voltage Meter DC Voltmeter Panel Mount 1000V 110 X 110mm
Switchboard Panel Analog Voltage Meter DC Voltmeter Panel Mount 1000V 110 X 110mm
Specifications
Model Number :
TP-100IR
Brand Name :
ymiho
Place of Origin :
Wuxi, China
MOQ :
100
Price :
$105-120 / piece
Accuracy Class :
1.5
Measuring Range :
1000V
Dimensions :
110*110mm
Display Type :
Analog Only
Operating Temperature :
0-40℃
Brand :
imhoo
keyword :
voltage meter
Full scale deflection angle :
250°
Full scale length :
approx. 196mm(7.7'') for 110mm SQ; 140mm(5.5'')for 80mm SQ
position of use :
vertical
Pointer Color :
black
pointer type :
lance type
OPperating temperature range :
0~40℃
Operating humidity range :
30~75%RH
OEM :
yes
Packaging Details :
carton packaging
Delivery Time :
15 work days
Description

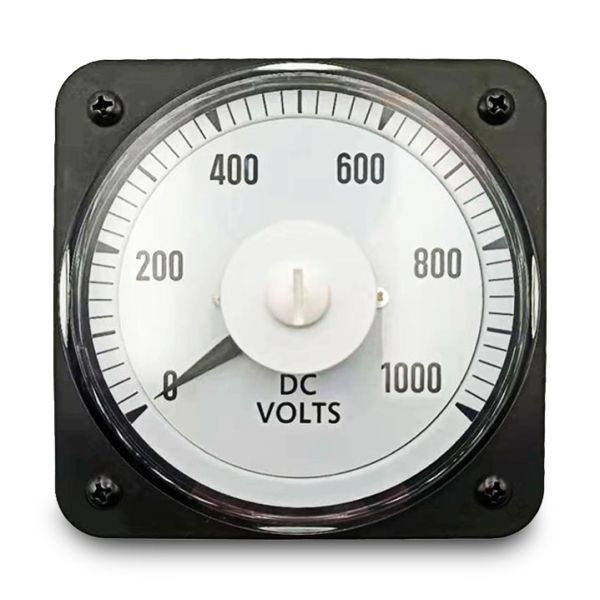

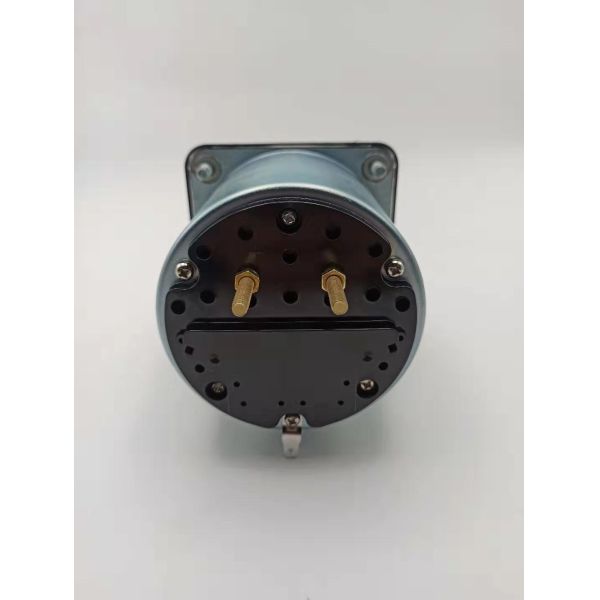

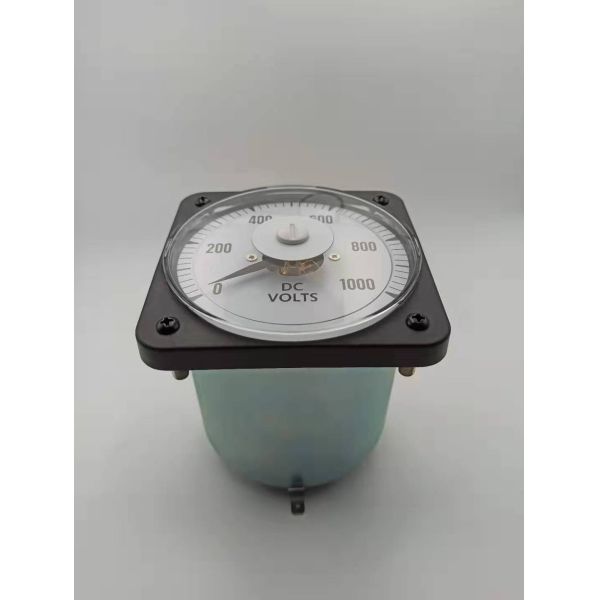

Switchboard Panel Analog Voltage Meter DC Panel Mount Voltmeter
Professional switchboard analog panel voltage meter designed for precise DC voltage measurement in industrial applications.
Switchboard Panel Analog Voltage Meter DC Voltmeter Panel Mount 1000V 110 X 110mm Switchboard Panel Analog Voltage Meter DC Voltmeter Panel Mount 1000V 110 X 110mm Switchboard Panel Analog Voltage Meter DC Voltmeter Panel Mount 1000V 110 X 110mm
Switchboard Panel Analog Voltage Meter DC Voltmeter Panel Mount 1000V 110 X 110mm Switchboard Panel Analog Voltage Meter DC Voltmeter Panel Mount 1000V 110 X 110mm

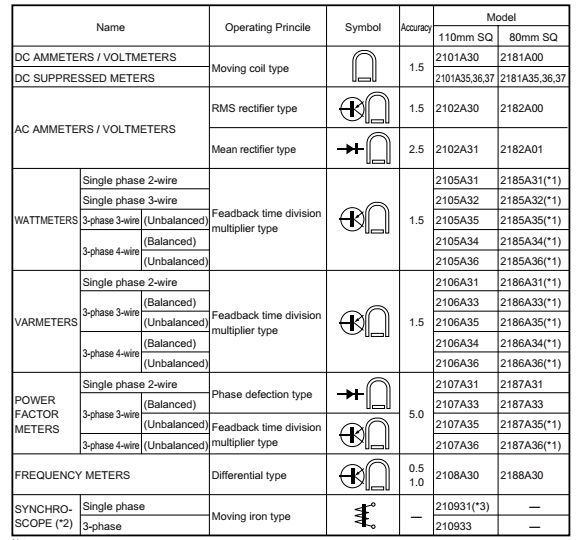

Technical Specifications
Full scale deflection angle 250° (360° for synchroscope)
Full scale length Approx. 196mm (7.7") for 110mm SQ
140mm (5.5") for 80mm SQ
Position of use Vertical
Pointer Lance type pointer, black
Operating temperature range 0~40°C
Operating humidity range 30~75% RH
Storage temperature range -10~50°C
Storage humidity range 25~80% RH
Dielectric strength 2600V AC for one minute between electric circuit and the case

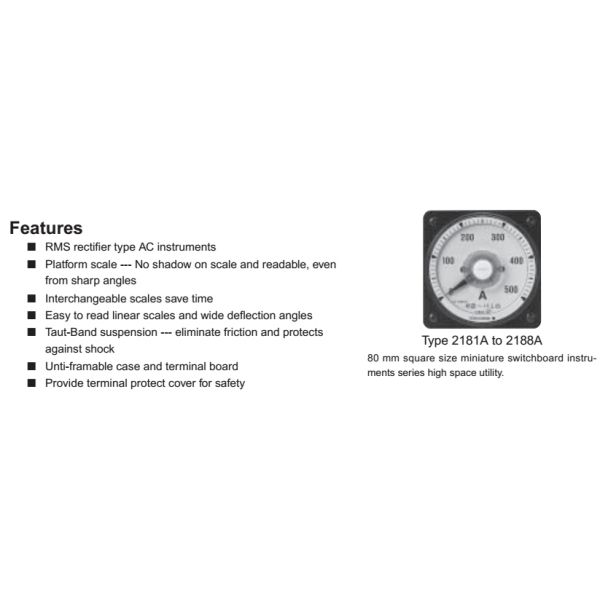

2000V AC for 2181A, 2182A, 2187A, 2188A
Insulation resistance More than 10MΩ/500V DC between electrical circuit and the case
More than 5MΩ/500V DC between electrical circuit and voltage circuit
Switchboard Panel Analog Voltage Meter DC Voltmeter Panel Mount 1000V 110 X 110mm
Important Notes
  • Attached external transducer box
  • Not compliant with JIS standard
  • Attached external impedance box
Switchboard Panel Analog Voltage Meter DC Voltmeter Panel Mount 1000V 110 X 110mm
