0.28 LED Dual Display Types Of Digital Voltmeter Voltage Meter DC 30V
0.28 LED Dual Display Types Of Digital Voltmeter Voltage Meter DC 30V
0.28 LED Dual Display Types Of Digital Voltmeter Voltage Meter DC 30V
0.28 LED Dual Display Types Of Digital Voltmeter Voltage Meter DC 30V
0.28 LED Dual Display Types Of Digital Voltmeter Voltage Meter DC 30V
0.28 LED Dual Display Types Of Digital Voltmeter Voltage Meter DC 30V
0.28 LED Dual Display Types Of Digital Voltmeter Voltage Meter DC 30V
0.28 LED Dual Display Types Of Digital Voltmeter Voltage Meter DC 30V
0.28 LED Dual Display Types Of Digital Voltmeter Voltage Meter DC 30V
0.28 LED Dual Display Types Of Digital Voltmeter Voltage Meter DC 30V
Specifications
Model Number :
PM-2VA
Brand Name :
ymiho
Place of Origin :
Wuxi, China
MOQ :
100
Price :
$1.54-2.30 / piece
Accuracy Class :
±1%
Measuring Range :
0-100V/0-10A
Dimensions :
48x29x21mm
Display Type :
Digital Only
Operating Temperature :
-15℃~+70℃
Display size :
0.28'' LED
Diaplay color :
RED+RED / RED+BLUE
Product size :
48x29x21mm
Installation dimension :
45.5X26.5mm
Min Working voltage :
DC 4.5V
Max Working voltage :
DC 30V
Working Humidity :
10~80%(no lon)
Working air pressure :
80~106kpa
Customized :
Can be customized
HS code :
8504902000
Packaging Details :
carton packaging
Delivery Time :
15 work days
Description
0.28" LED Dual Display Digital Voltmeter
Product Overview

This compact dual display meter simultaneously shows voltage and current readings, making it ideal for automotive and electrical applications.

Key Features
  • Simultaneous voltage and current display
  • Common ground connection for measuring and power supply points
  • Wide power supply range: DC 4.5V-30V with reverse polarity protection
  • Includes five connection wires for easy installation in vehicles and circuits
Technical Specifications
Parameter Specification
Power Supply DC 4.5V-30V (wide range suitable for various applications)
Test Voltage 0-100V; Minimum resolution: 0.1V
Test Current Max 10A; Minimum resolution: 10mA (built-in frequency divider)
Working Current ≤20mA
Display 0.28" LED

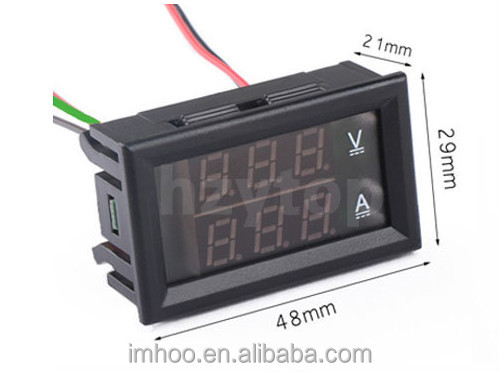

Dimension 48×29×21mm
Installation Dimension 45.5×26.5mm
Measurement Rate 100ms/time
Accuracy ±1%
Working Temperature -15℃ to +70℃
Working Humidity 10-80% (non-condensing)
Working Air Pressure 80-106kPa
Current Range Information

Range ≤10A: Meter includes built-in shunt with thick wire

Range >10A: Requires external shunt with thin wire

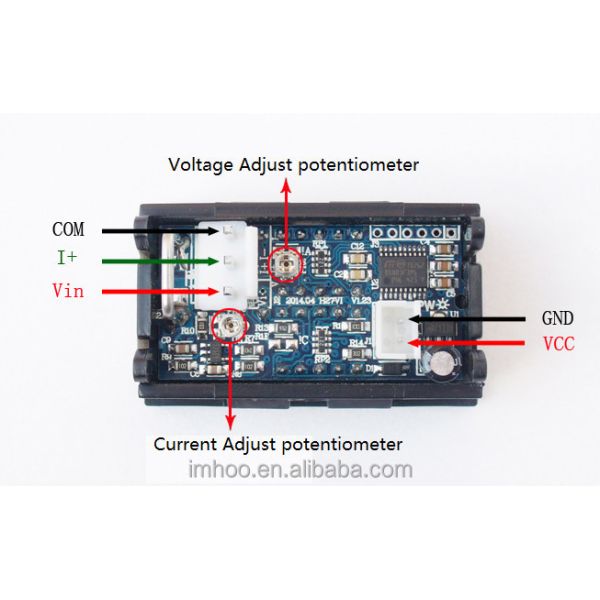

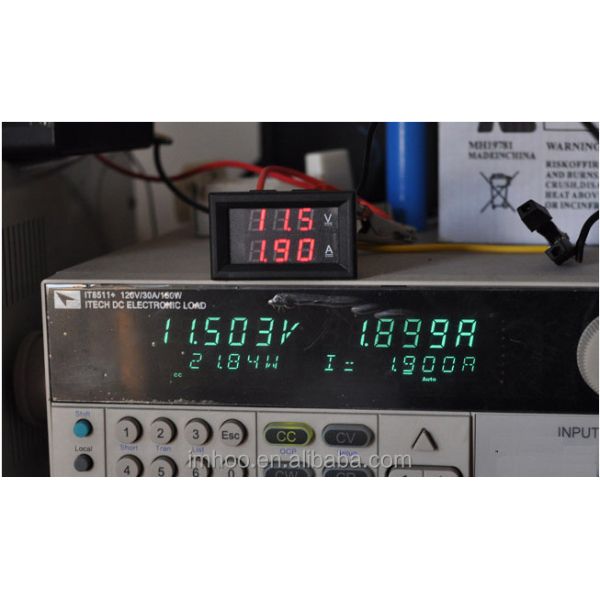

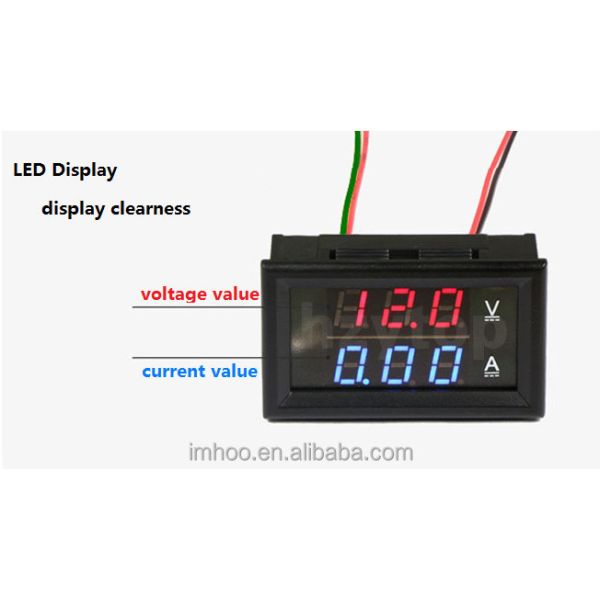

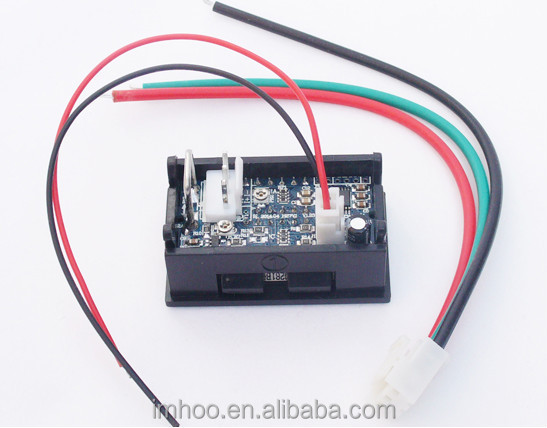

Product Images
0.28 0.28 0.28 0.28 0.28

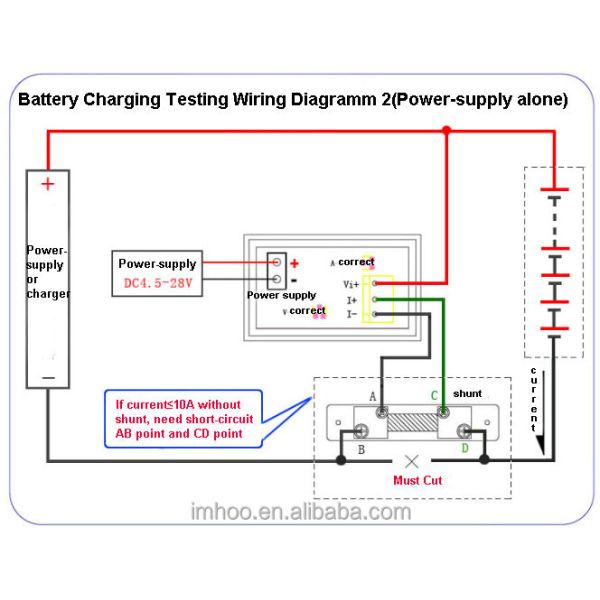

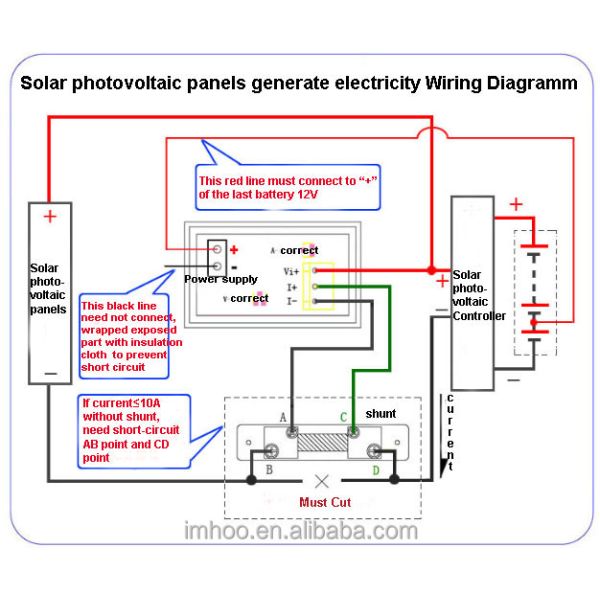

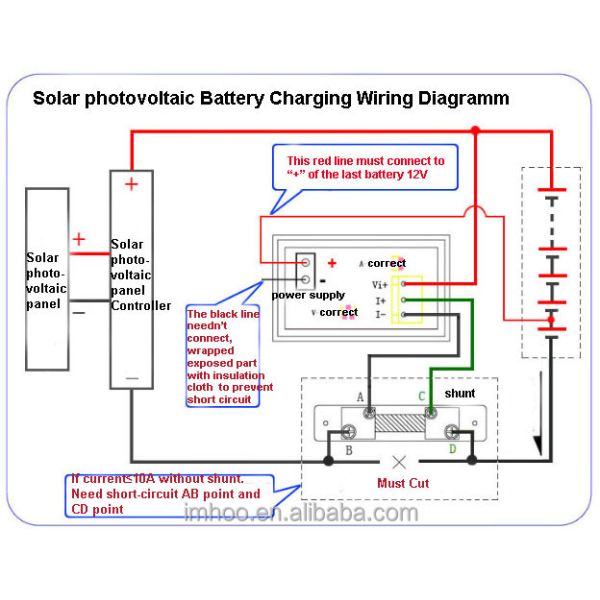

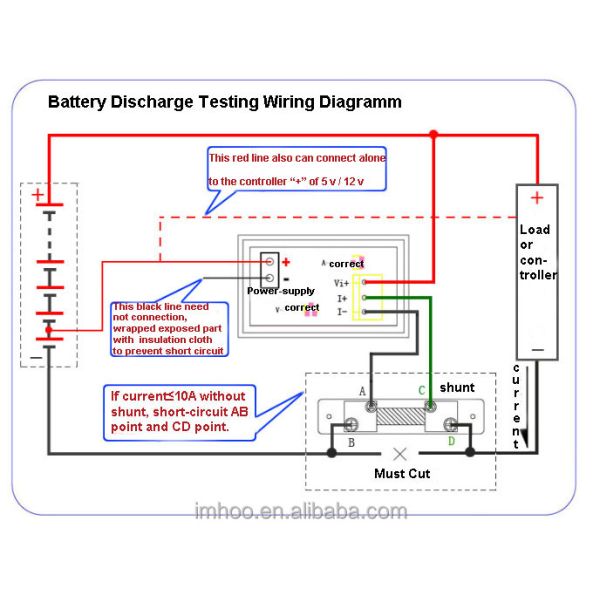

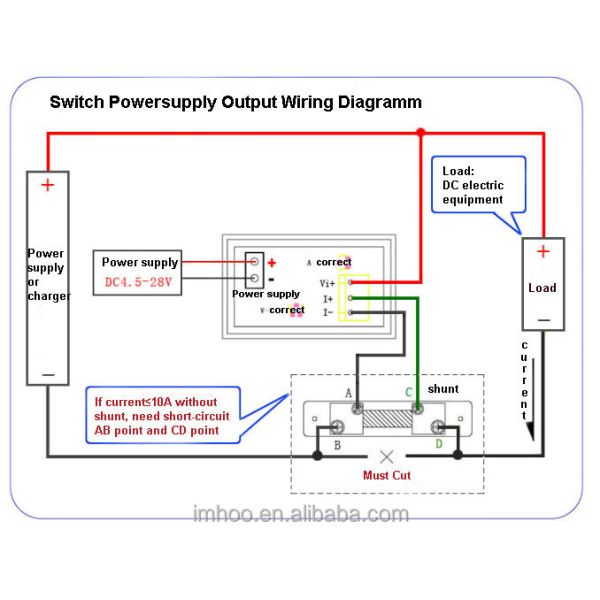

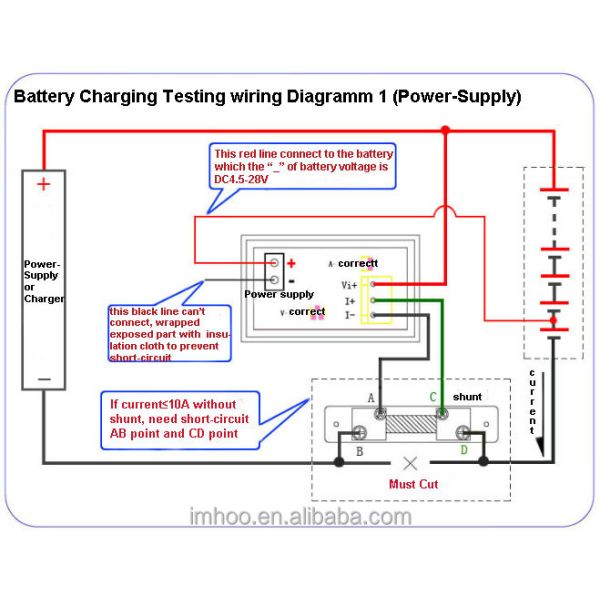

Wiring Diagram

Please wire according to the following diagram:

0.28 0.28 0.28 0.28 0.28 0.28
Our Services
  • High Quality, Competitive Pricing
  • Reliable Delivery - We deliver on time as promised
  • Quality Guarantee - We replenish any quality issues
  • OEM Services Available
  • Custom Product Development
Frequently Asked Questions
Q: Are you a factory or trading company?
A: We are a factory.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Wuxi City, Jiangsu Province, China, about 1 hour by high-speed rail from Shanghai Hongqiao station. All clients are warmly welcome to visit us!
Q: How can I get some samples?
A: We offer samples. For samples under USD10.00, we provide free samples with customers paying only the freight cost.
Q: What's your MOQ?
A: We accept trial orders starting from 1 piece per product.
Q: Which Payment terms do you accept?
A: We accept T/T, L/C, Western Union, and PayPal.
Q: How does your factory handle quality control?
A: Quality is our priority. We maintain strict quality control from beginning to end of production.
