Specifications
Model Number :
MU-45
Brand Name :
ymiho
Place of Origin :
Wuxi, China
MOQ :
100
Price :
$18-20 / piece
Accuracy Class :
±(0.1% + 1)
Max. AC Current :
30 A
Max. Ac Voltage :
30KV
Max. DC Current :
60 A
Max. DC Voltage :
1500 V
Measuring Range :
According to Customer
Dimensions :
60.7x71mm
Display Type :
Analog Only
Operating Temperature :
-20-50℃
Material :
ABS
Meter Supporter :
Al, Ni,Co
Moving Coil :
Fuji Line
Pointer Material :
Cu/Al
Inner connection Line :
UL line
Screw :
Cu
Dial :
Al scale
Soldering :
ROHS solde wire
HS Code :
8504902000
keyword :
small voltmeter
Packaging Details :
carton packaging
Delivery Time :
15 work days
Description

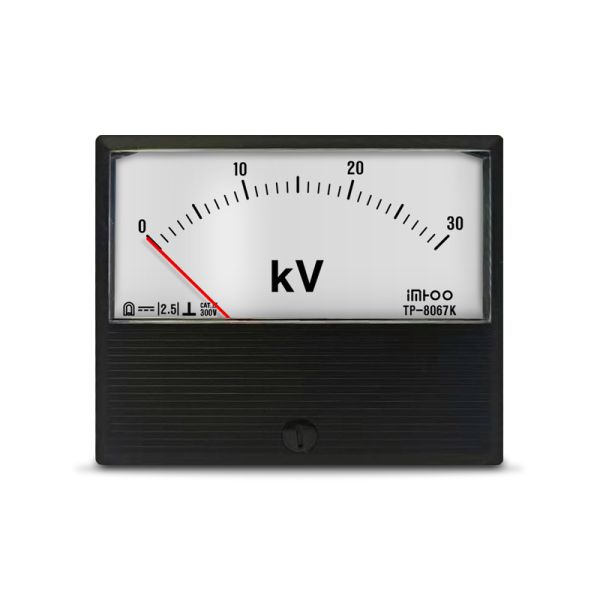

TP-8067K-2074DC30KV Replacement Analog Ammeter and Voltmeter
TP-8067K Panel Meter — Direct replacement for YOKOGAWA 2074 series, designed for high-voltage indication up to 30 kV DC with external divider.
Tp-8067k-2074dc30kv Replacement Analog Ammeter And Voltmeter For Yokogawa Welding Machine
Tp-8067k-2074dc30kv Replacement Analog Ammeter And Voltmeter For Yokogawa Welding Machine
Tp-8067k-2074dc30kv Replacement Analog Ammeter And Voltmeter For Yokogawa Welding Machine
Quick Specifications
Model TP-8067K
Panel Size (W × H) 82 × 69 mm
Scale Length 62 mm (gun-shaped pointer: 63.5 mm)
Typical Range 0 - 30 kV DC (with external divider / probe)
Compatible Panel Code YOKOGAWA 2074
Pointer Type Carbon / gun-shaped (black / red / white available)
Housing Flame-retardant ABS
Operating Temp / Humidity 0-40°C ; 30-75% RH
Safety Note: This meter head is a display-only unit. For kV-level measurement, always use a suitable external high-voltage divider or HV probe; do not connect high voltage directly to the meter head.
Why Choose TP-8067K
  • Yokogawa 2074 Compatible Dimensions: Designed to match common Yokogawa panel cutouts for fast, no-modification replacement.
  • Clear, Durable Pointer & Scale: Easy-to-read scale and robust pointer for field use in welding machines and industrial equipment.
  • Industrial Construction: Flame-retardant ABS bezel and stable internal mounting for reliable long-term operation.
  • Customization Available: Scale printing, custom markings, and logo options available for OEM orders.
Technical Specifications
Parameter Specification / Notes
Model TP-8067K
Front Size (W × H) 82 × 69 mm
Scale Length 62 mm (gun pointer: 63.5 mm)
Typical Display Range Indicator for up to 30 kV DC when paired with proper external divider/probe
Pointer Carbon or gun-shaped; color options: black / red / white
Scale Background White or black (customizable)
Mounting Orientation Vertical (upright)
Pointer Swing Angle 90°
Housing Material Flame-retardant ABS
Operating Temperature 0 ~ 40°C (storage: -10 ~ +50°C)
Operating Humidity 30 ~ 75% RH (storage: 25 ~ 80% RH)
Compatible Yokogawa Code 2074
Wiring & Usage (Important Safety Information)
  1. This meter head is a display instrument only. For high-voltage (kV) measurement it must be used with a certified external high-voltage divider or HV probe. Never apply kV-level voltage directly to the meter head.

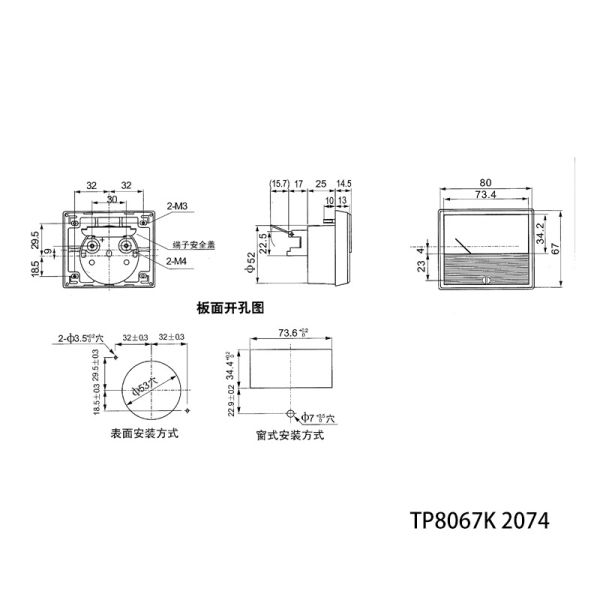

  2. Power down the equipment before wiring. Confirm the panel cutout (82×69 mm) and secure the meter to prevent vibration-induced error.
  3. After wiring, power on and verify zero position; use the rear zero-adjust screw if necessary.
  4. In environments with high electromagnetic interference, apply shielding or filtering to avoid unstable readings.
Compatibility & Replacement Notes
TP-8067K is built to be compatible with typical Yokogawa 2074 panel installations and is commonly used to replace indicator meters in:
  • Welding machine control panels
  • Industrial power supply indicators
  • Maintenance spare part inventory for legacy equipment
For guaranteed 1:1 replacement, provide photos of your front panel and the meter's back wiring or the original part. We can perform a trial fit and confirm compatibility prior to shipment.
Ordering & Options
Item Details
MOQ 50 pcs (sample orders available)
Lead Time Samples: 3-7 days; Mass production: 2-4 weeks depending on quantity and customization
Packing Foam + individual box + outer carton; packed by 20/50 per carton
Custom Options Scale printing, logo, color, and ranged scales available (additional tooling/fees may apply)
Warranty 12 months (excluding misuse or improper installation)
Frequently Asked Questions
Q: Is the TP-8067K meter head supplied with an internal high-voltage divider?
A: No — TP-8067K is normally a meter head only. For kV ranges you must use an external high-voltage divider or HV probe. We can supply matched divider assemblies on request.
Q: Can TP-8067K be used as a direct drop-in replacement for my Yokogawa meter?
A: Usually yes when the panel cutout and mounting match (82×69 mm / Yokogawa 2074). To ensure 100% compatibility, please share images of the original meter (front and back) or the panel hole drawing.
Q: Do you offer custom scale printing (e.g., 0 -15 kV)?
A: Yes — custom scales are available. Contact sales for tooling and minimum order details.
Contact & Quick Quote
Provide: required quantity, whether you need an external divider/probe, custom scale/logo requirements, and delivery country.
Phone: +86-19850131070
Packing & Logistics
Each meter is cushioned with foam, boxed individually and then packed in cartons. Shipping options: sea (FCL/LCL), air freight. We can prepare export documents: commercial invoice, packing list, COA.
Warranty & After-sales
12-month warranty for manufacturing defects. We test all units before dispatch and can provide test reports on request.
Note: The "30 kV" example, panel dimensions, and Yokogawa code 2074 were derived from the provided screenshots and product images. If you require exact factory-certified specifications (accuracy class, insulation levels, internal wiring diagram), please upload the official datasheet (PDF) and we will update the specification table and provide a downloadable datasheet PDF.
