Temperature Resistance Analog Meter MU-45 Ammeter Voltmeter Waterproof Versions
Temperature Resistance Analog Meter MU-45 Ammeter Voltmeter Waterproof Versions
Temperature Resistance Analog Meter MU-45 Ammeter Voltmeter Waterproof Versions
Temperature Resistance Analog Meter MU-45 Ammeter Voltmeter Waterproof Versions
Temperature Resistance Analog Meter MU-45 Ammeter Voltmeter Waterproof Versions
Temperature Resistance Analog Meter MU-45 Ammeter Voltmeter Waterproof Versions
Temperature Resistance Analog Meter MU-45 Ammeter Voltmeter Waterproof Versions
Temperature Resistance Analog Meter MU-45 Ammeter Voltmeter Waterproof Versions
Specifications
Model Number :
MU-45
Brand Name :
ymiho
Place of Origin :
Wuxi, China
MOQ :
100
Price :
$2-5 / piece
Accuracy Class :
2.5
Measuring Range :
According to Customer
Dimensions :
60.7x71mm
Display Type :
Analog Only
Operating Temperature :
-20-50℃
Material :
ABS
Meter Supporter :
Al, Ni,Co
Moving Coil :
Fuji Line
Pointer Material :
Cu/Al
Inner connection Line :
UL line
Screw :
Cu
Dial :
Al scale
Soldering :
ROHS solde wire
HS Code :
8504902000
keyword :
electronic ammeter voltmeter
Packaging Details :
carton packaging
Delivery Time :
15 work days
Description

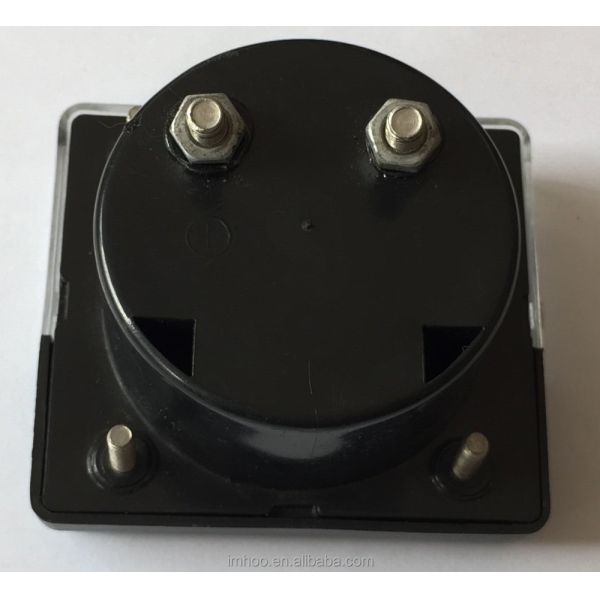

Analog Meter MU-45 Electronic Ammeter Voltmeter
Professional analog panel meters designed for precise current and voltage measurement in industrial applications.
Temperature Resistance Analog Meter MU-45 Ammeter Voltmeter Waterproof Versions Temperature Resistance Analog Meter MU-45 Ammeter Voltmeter Waterproof Versions Temperature Resistance Analog Meter MU-45 Ammeter Voltmeter Waterproof Versions Temperature Resistance Analog Meter MU-45 Ammeter Voltmeter Waterproof Versions
Construction & Materials
  • Case Material: PMMA plastic for external case with non-combustible ABS plastic base
  • Alternative Option: Non-combustible PC plastic available for both case and base
  • Temperature Resistance: Maintains structural integrity at 70°C (PMMA/ABS) and 120°C (PC)
Customization & OEM Services
  • Custom range configurations available
  • Changeable scale options
  • Waterproof versions
  • Tailored specifications to meet specific application requirements
Ammeter Specifications
AC & DC Current Ranges
Range Type AC Current DC Current
Microamperes (μA) 50μA, 100μA, 150μA, 500μA 50μA, 100μA, 150μA, 500μA
Milliamperes (mA) 1mA, 2mA, 5mA, 10mA, 20mA, 30mA, 50mA, 75mA, 100mA, 150mA, 200mA, 250mA, 300mA, 500mA 1mA, 2mA, 5mA, 10mA, 20mA, 30mA, 50mA, 75mA, 100mA, 150mA, 200mA, 250mA, 300mA, 500mA
Amperes (A) 1A, 2A, 3A, 7.5A, 10A, 20A, 30A, 50A 1A, 2A, 3A, 7.5A, 10A, 20A, 30A, 50A
Extended Ranges with External CT/Shunt
Configuration AC Current Ranges DC Current Ranges
X1A 10/1A, 15/1A, 20/1A, 30/1A, 40/1A, 50/1A, 60/1A, 75/1A, 100/1A, 150/1A, 200/1A, 300/1A, 400/1A, 500/1A, 600/1A, 1000/1A 50mV, 60mV, 75mV: 10A, 15A, 20A, 30A, 40A, 50A, 60A, 100A, 150A, 200A, 250A, 300A, 400A, 500A, 600A, 800A, 1000A, 1500A, 2000A, 2500A, 3000A
X5A 10/5A, 15/5A, 20/5A, 30/5A, 40/5A, 50/5A, 60/5A, 75/5A, 100/5A, 150/5A, 200/5A, 300/5A, 400/5A, 500/5A, 600/5A, 1000/5A -
Voltmeter Specifications
Range Type AC Voltage DC Voltage
Voltage Ranges 50mV, 60mV, 75mV, 100mV, 5V, 10V, 15V, 20V, 30V, 50V, 75V, 100V, 120V, 150V, 200V, 250V, 300V, 400V, 450V, 500V, 600V 50mV, 60mV, 75mV, 100mV, 5V, 10V, 15V, 20V, 30V, 50V, 75V, 100V, 120V, 150V, 200V, 250V, 300V, 400V, 450V, 500V, 600V
Temperature Resistance Analog Meter MU-45 Ammeter Voltmeter Waterproof Versions
Dimensions (Millimeters)
Model Case Dimension Panel Cutout Dimension A B C D E F M N O G H
MU-45 58 52 10.37 24 11.5 ø44.4 20 9 ø3 38 37.7
TP-45 45.2 45.2 8.5 24 9.8 ø38 17 9 ø3 31.3 31.3
TP-50 51 51 13 22 9.8 ø45.5 19 9 ø3 38 38
TP-60 60 60 14 22.8 10.8 ø51 27 12 ø3 48 48
TP-80 81.3 81.3 16 22.8 12.8 ø64 35 12 ø3 65 65
Temperature Resistance Analog Meter MU-45 Ammeter Voltmeter Waterproof Versions
