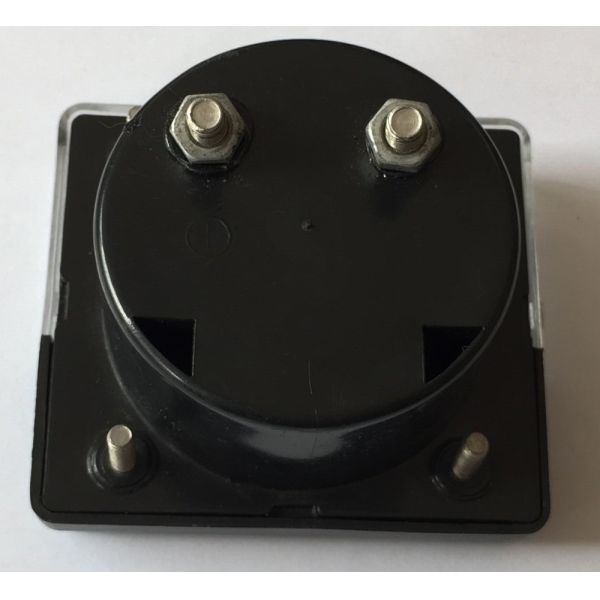

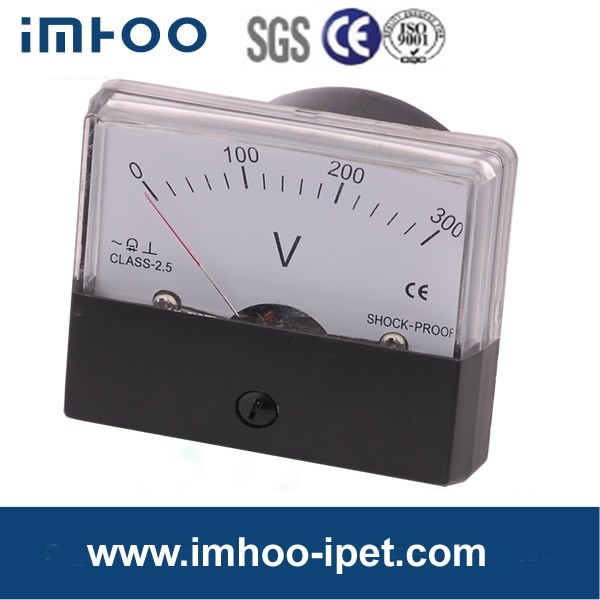

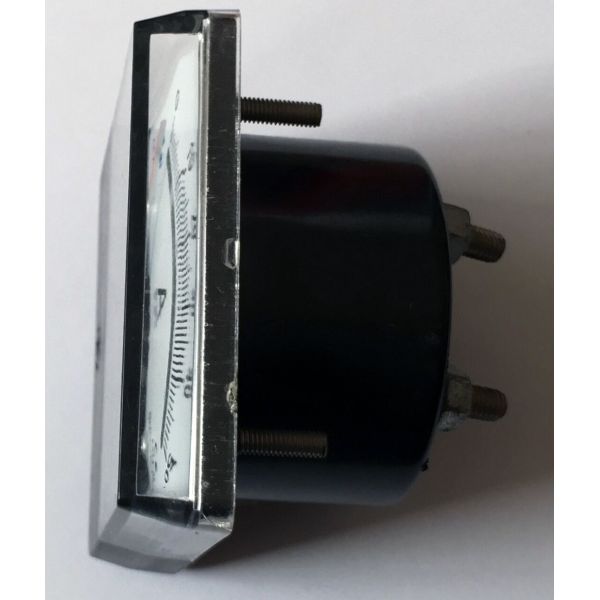

60.7 X 71mm Panel Analog Voltmeter 220V Voltage Meter ABS Material
60.7 X 71mm Panel Analog Voltmeter 220V Voltage Meter ABS Material
60.7 X 71mm Panel Analog Voltmeter 220V Voltage Meter ABS Material
60.7 X 71mm Panel Analog Voltmeter 220V Voltage Meter ABS Material
60.7 X 71mm Panel Analog Voltmeter 220V Voltage Meter ABS Material
60.7 X 71mm Panel Analog Voltmeter 220V Voltage Meter ABS Material
60.7 X 71mm Panel Analog Voltmeter 220V Voltage Meter ABS Material
60.7 X 71mm Panel Analog Voltmeter 220V Voltage Meter ABS Material
Specifications
Model Number :
MU-45
Brand Name :
ymiho
Place of Origin :
Wuxi, China
MOQ :
100
Price :
$2-5 / piece
Accuracy Class :
2.5
Measuring Range :
According to Customer
Dimensions :
60.7x71mm
Display Type :
Analog Only
Operating Temperature :
-20-50℃
Material :
ABS
Meter Supporter :
Al, Ni,Co
Moving Coil :
Fuji Line
Pointer Material :
Cu/Al
Inner connection Line :
UL line
Screw :
Cu
Dial :
Al scale
Soldering :
ROHS solde wire
HS Code :
8504902000
keyword :
voltmeter 220V
Packaging Details :
carton packaging
Delivery Time :
15 work days
Description
MU-45 Panel Analog Voltmeter 220V
60.7 X 71mm Panel Analog Voltmeter 220V Voltage Meter ABS Material 60.7 X 71mm Panel Analog Voltmeter 220V Voltage Meter ABS Material 60.7 X 71mm Panel Analog Voltmeter 220V Voltage Meter ABS Material 60.7 X 71mm Panel Analog Voltmeter 220V Voltage Meter ABS Material 60.7 X 71mm Panel Analog Voltmeter 220V Voltage Meter ABS Material
Construction & Materials
The external case is constructed from PMMA plastic material with a base made from non-combustible ABS plastic. Alternatively, non-combustible PC plastic material can be used for both case and base. Both material options maintain structural integrity without deformation during long-term use at 70°C and 120°C respectively.
Customization Options
IMHOO offers OEM customization services including customizable ranges, changeable scales, waterproof features, and other specialized requirements.
Ammeter Specifications
Type AC Ranges DC Ranges
Microamperes (μA) 50μA, 100μA, 150μA, 500μA 50μA, 100μA, 150μA, 500μA
Milliamperes (mA) 1mA, 2mA, 5mA, 10mA, 20mA, 30mA, 50mA, 75mA, 100mA, 150mA, 200mA, 250mA, 300mA, 500mA 1mA, 2mA, 5mA, 10mA, 20mA, 30mA, 50mA, 75mA, 100mA, 150mA, 200mA, 250mA, 300mA, 500mA
Amperes (A) 1A, 2A, 3A, 7.5A, 10A, 20A, 30A, 50A 1A, 2A, 3A, 7.5A, 10A, 20A, 30A, 50A
With External CT (ACA) X1A: 10/1A, 15/1A, 20/1A, 30/1A, 40/1A, 50/1A, 60/1A, 75/1A, 100/1A, 150/1A, 200/1A, 300/1A, 400/1A, 500/1A, 600/1A, 1000/1A
X5A: 10/5A, 15/5A, 20/5A, 30/5A, 40/5A, 50/5A, 60/5A, 75/5A, 100/5A, 150/5A, 200/5A, 300/5A, 400/5A, 500/5A, 600/5A, 1000/5A		 50mV, 60mV, 75mV: 10A, 15A, 20A, 30A, 40A, 50A, 60A, 100A, 150A, 200A, 250A, 300A, 400A, 500A, 600A, 800A, 1000A, 1500A, 2000A, 2500A, 3000A
Voltmeter Specifications
Type AC Voltage Ranges DC Voltage Ranges
Volts (V) 50mV, 60mV, 75mV, 100mV, 5V, 10V, 15V, 20V, 30V, 50V, 75V, 100V, 120V, 150V, 200V, 250V, 300V, 400V, 450V, 500V, 600V 50mV, 60mV, 75mV, 100mV, 5V, 10V, 15V, 20V, 30V, 50V, 75V, 100V, 120V, 150V, 200V, 250V, 300V, 400V, 450V, 500V, 600V
60.7 X 71mm Panel Analog Voltmeter 220V Voltage Meter ABS Material
Dimensions (millimeters)
Model A B C D E F M N O G H
MU-45 58 52 10.37 24 11.5 ø44.4 20 9 ø3 38 37.7
TP-45 45.2 45.2 8.5 24 9.8 ø38 17 9 ø3 31.3 31.3
TP-50 51 51 13 22 9.8 ø45.5 19 9 ø3 38 38
TP-60 60 60 14 22.8 10.8 ø51 27 12 ø3 48 48
TP-80 81.3 81.3 16 22.8 12.8 ø64 35 12 ø3 65 65
60.7 X 71mm Panel Analog Voltmeter 220V Voltage Meter ABS Material
