Specifications
power (kw) :
80-160
Thickness :
2+2MM
voltage :
480 V, 380V/50Hz
welding diameter :
Customized
Brand Name :
Xingweihan
Place of Origin :
Sichuan, China
condition :
New
dimensions :
2000*800*2200mm(78.74*31.50*86.61in)
usage :
Welding ilter Rollers
warranty :
1 Year
weight (kg) :
1500
Welding Mode :
Resistance Seam Welding
Product name :
Filter Cartridge Rollers Longitudinal Seam Welding Machine
Application :
Filter Cartridge Welding
Function :
Metal Welding
Welding Material :
Galvanized Steel
Machine type :
Automatic Seam Welding Machine
Type :
Seam Welding Machine For 1Mm Mild Steel
Keyword :
Resistance Welder
After Warranty Service :
Video technical support, Online support and Spare parts
After-sales Service Provided :
Free spare parts, Field installation, commissioning and training
Certification :
CE, RoHS, ISO
MOQ :
1 set
Price :
$12,000-13,000 / set
Description
Drum Rolling Straight Roller Resistance Metal Plate Automatic Filter Cartridge Rollers Longitudinal Seam Welding Machine Price
Drum Rolling Straight Roller Resistance Metal Plate Automatic Filter Cartridge Rollers Longitudinal Seam Welding Machine Price
ChengDu Xinweihan is one of the leading welding equipment manufacturer in china, Specialized in manufacturing and provide customers with a complete set of welding solutions. A R&D team of more than 20 engineers., and a 20000 sq.m manufacturer, which guarantees that we can offer customers the most professional welding advice and after-sales service. And we have our own overseas technical service teams in many countries in Southeast Asia and South America to provide customers with on-site installation and maintenance services.（Please contact us to ask if there is a technical team in your country）
Drum Rolling Straight Roller Resistance Metal Plate Automatic Filter Cartridge Rollers Longitudinal Seam Welding Machine Price

Product Overview

Drum Rolling Straight Roller Resistance Metal Plate Automatic Filter Cartridge Rollers Longitudinal Seam Welding Machine Price

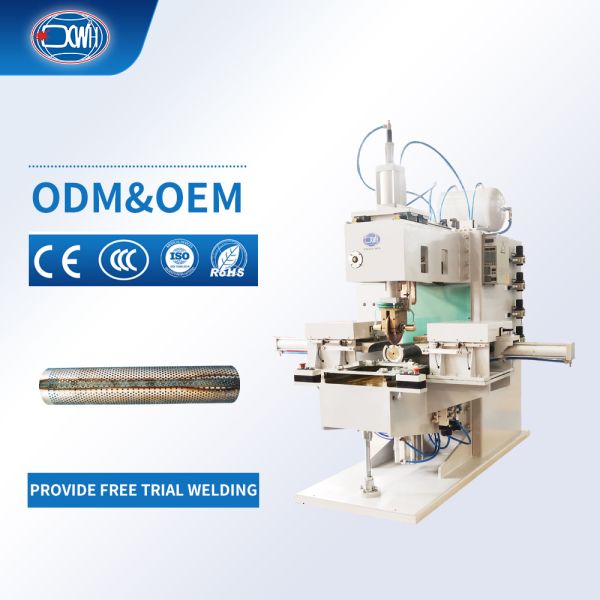

The automatic filtering drum seam welding machine integrates pneumatic, electrical, and servo control technologies to demonstrate excellent welding performance. The equipment adopts pneumatic pressurization and vertical electrode movement, combined with thyristor trigger control system, to achieve precise adjustment of welding current and high efficiency and energy saving. Its automatic forming system precisely shapes the flat plate into a cylinder through the sequential action of cylinders; The electrode wheel driven by servo motor ensures uniform and stable welding speed. The whole machine is designed to be compact, safe and easy to operate. From manual feeding, automatic forming, pressure welding to unloading completion, the entire process is automatically connected and optimized for welding 0.5-1.5mm low-carbon steel filter drums. It is an ideal choice for high-quality and high repeatability production.
Drum Rolling Straight Roller Resistance Metal Plate Automatic Filter Cartridge Rollers Longitudinal Seam Welding Machine Price
Model/Item
Unit
FN-80-H
FN-100-H
FN-160-H
FN-100-E
FN-160-E
Rated power
KVA
80
100
160
100
160
Voltage input
V
380
380
380
380
380
Frequency
Hz
50
50
50
50
50
Max. short circuit current
KA
26
30
40
30
40
Working stroke
mm
100
100
100
100
100
Welding efficiency
m/min
0.7-3.9
0.7-3.9
0.7-3.9
0.7-3.9
0.7-3.9
Max. force
N
6000
6000
7800
6000
7800
Max. welding capacity
mm
1.2+1.2
1.5+1.5
2.0+2.0
1.5+1.5
2.0+2.0
Motor Power
W
550
750
750
750
400
Cooling consumption
L/min
8
8
10
8
10
Weight
Kg
380
510
630
530
700

Main Features

1. Rapid cycle operation: From automatic forming and pressure positioning to servo rolling welding and unloading completion, the fully automatic cycle is closely connected, greatly reducing the time for workpiece clamping, forming, and welding, and significantly improving production efficiency. 2. Workpiece stationary welding machine: The innovative "welding machine motion, workpiece fixation" design avoids positioning errors and time consumption caused by the movement of large-sized cylinders, making it particularly suitable for rapid welding of circular workpieces such as filter drums. 3. One click molding and welding: After starting with both hands, the equipment automatically completes the entire process of material transfer, pneumatic molding, pressurization, welding, and unloading, with extremely simple operation and low skill requirements for workers, reducing training costs. 4. Suitable for continuous batch production: specially designed for 0.5-1.5mm low carbon steel filter drums, with high matching welding ability and automated processes that are particularly suitable for batch continuous manufacturing of standardized products.
General Strctures
Drum Rolling Straight Roller Resistance Metal Plate Automatic Filter Cartridge Rollers Longitudinal Seam Welding Machine Price
Drum Rolling Straight Roller Resistance Metal Plate Automatic Filter Cartridge Rollers Longitudinal Seam Welding Machine Price
Drum Rolling Straight Roller Resistance Metal Plate Automatic Filter Cartridge Rollers Longitudinal Seam Welding Machine Price
Drum Rolling Straight Roller Resistance Metal Plate Automatic Filter Cartridge Rollers Longitudinal Seam Welding Machine Price

Fully automated process integration

From manual start, automatic displacement, pneumatic forming, pressure positioning, servo roll welding to automatic unloading, it achieves a continuous operation cycle of "manual loading and automatic completion", greatly reducing manual intervention.
Drum Rolling Straight Roller Resistance Metal Plate Automatic Filter Cartridge Rollers Longitudinal Seam Welding Machine Price

Cylinder

The cylinder adopts a combination of aluminum alloy cylinder barrel, low damping sealing ring, and light friction ring, with wear-resistant surface and long service life, achieving extremely high spot welding speed, electrode pressurization, smooth and fast.
Drum Rolling Straight Roller Resistance Metal Plate Automatic Filter Cartridge Rollers Longitudinal Seam Welding Machine Price

Gas Storage Tanks

The projection and spot welding machine is equipped with a dedicated gas storage tank, which is beneficial for reducing welding pressure fluctuations and ensuring stable welding force.
Drum Rolling Straight Roller Resistance Metal Plate Automatic Filter Cartridge Rollers Longitudinal Seam Welding Machine Price

Waterway Components

All waterway components undergo surface treatment to prevent rusting, and waterway drainage is independently discharged to the water tank. Based on the outflow situation, blockages in the waterway can be observed and eliminated.

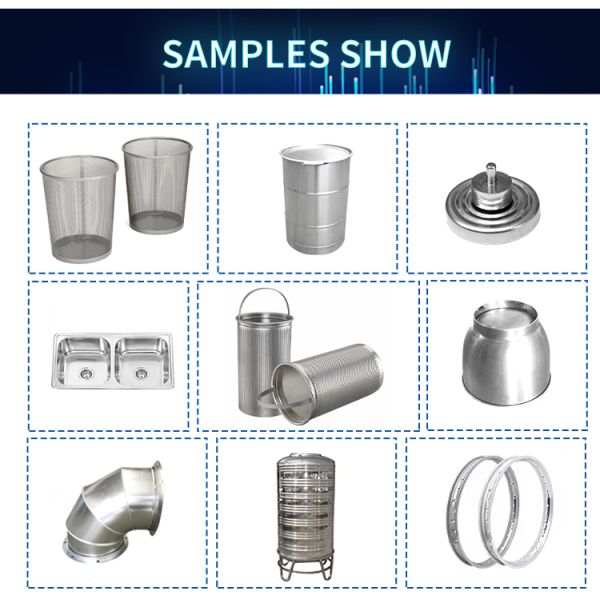

Application
Drum Rolling Straight Roller Resistance Metal Plate Automatic Filter Cartridge Rollers Longitudinal Seam Welding Machine Price
Scene images
Drum Rolling Straight Roller Resistance Metal Plate Automatic Filter Cartridge Rollers Longitudinal Seam Welding Machine Price
Drum Rolling Straight Roller Resistance Metal Plate Automatic Filter Cartridge Rollers Longitudinal Seam Welding Machine Price
More details, please contact!
