Specifications
voltage :
480 V, 380V/50Hz
Keyword :
Rolling Seam Welding Machine
welding diameter :
Customized
Price :
$12,000-13,000 / set
usage :
Filter Cartridge Welding
power (kw) :
80-160
dimensions :
2000*800*2200mm(78.74*31.50*86.61in)
After Warranty Service :
Video technical support, Online support and Spare parts
After-sales Service Provided :
Free spare parts, Field installation, commissioning and training
Certification :
CE, RoHS, ISO
condition :
New
Function :
Aluminum Seam Welding Machine
Thickness :
2+2MM
weight (kg) :
1500
Machine type :
Automatic Rolling And Tunnel Seam Welding Machine
Brand Name :
Xingweihan
Welding Material :
Galvanized
Type :
Stainless Steel Seam Welding Machine
Place of Origin :
Sichuan, China
Product name :
Resistance Seam Welder Machine For Cylinders
MOQ :
1 set
warranty :
1 Year
Application :
Wire Mesh Filter Element
Welding Mode :
Automatic Seam Welding
Description
Roller Straight Automated Rolling and Welding Longitudinal Stainless Steel Resistance Seam Welder Machine for Cylinders
Roller Straight Automated Rolling and Welding Longitudinal Stainless Steel Resistance Seam Welder Machine for Cylinders
ChengDu Xinweihan is one of the leading welding equipment manufacturer in china, Specialized in manufacturing and provide customers with a complete set of welding solutions. A R&D team of more than 20 engineers., and a 20000 sq.m manufacturer, which guarantees that we can offer customers the most professional welding advice and after-sales service. And we have our own overseas technical service teams in many countries in Southeast Asia and South America to provide customers with on-site installation and maintenance services.（Please contact us to ask if there is a technical team in your country）
Roller Straight Automated Rolling and Welding Longitudinal Stainless Steel Resistance Seam Welder Machine for Cylinders

Product Overview

Roller Straight Automated Rolling and Welding Longitudinal Stainless Steel Resistance Seam Welder Machine for Cylinders

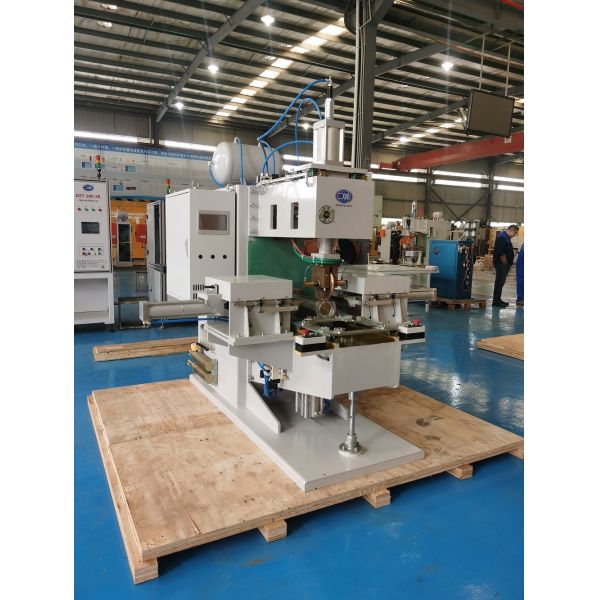

The automatic tube rolling seam welding machine focuses on easy operation and production safety, with a humanized design. During the operation, workers only need to place the board and press the start button with both hands. The subsequent process is fully automated: the workpiece is automatically positioned, the mold is pneumatically coiled, the electrode wheel is pressed and pre rolled, and then servo roll welding is completed under controllable welding current, and finally the material is automatically unloaded. The whole machine has a compact and beautiful structure, stable and quiet operation, rapid response of pneumatic and electrical systems, and is energy-saving and efficient. Especially suitable for continuous production of thin plate filter drums, it significantly reduces labor intensity and improves work safety while ensuring welding quality.
Roller Straight Automated Rolling and Welding Longitudinal Stainless Steel Resistance Seam Welder Machine for Cylinders
Model/Item
Unit
FN-80-H
FN-100-H
FN-160-H
FN-100-E
FN-160-E
Rated power
KVA
80
100
160
100
160
Voltage input
V
380
380
380
380
380
Frequency
Hz
50
50
50
50
50
Max. short circuit current
KA
26
30
40
30
40
Working stroke
mm
100
100
100
100
100
Welding efficiency
m/min
0.7-3.9
0.7-3.9
0.7-3.9
0.7-3.9
0.7-3.9
Max. force
N
6000
6000
7800
6000
7800
Max. welding capacity
mm
1.2+1.2
1.5+1.5
2.0+2.0
1.5+1.5
2.0+2.0
Motor Power
W
550
750
750
750
400
Cooling consumption
L/min
8
8
10
8
10
Weight
Kg
380
510
630
530
700

Main Features

1. Efficient and energy-saving welding system: using thyristor conduction angle to control the primary current of the transformer, it can achieve precise input of welding heat, high energy utilization rate, and significant energy-saving effect compared to traditional welding machines.
2. Compact structure reduces energy consumption: The equipment design is compact and the power configuration is reasonable. The pneumatic and electric systems only consume energy during the action phase, and the standby and idle energy consumption is extremely low.
3. Strong compatibility between materials and processes: Specially optimized for welding 0.5~1.5mm low-carbon steel filter drums, with excellent matching of welding parameters and high one-time pass rate, reducing rework and material waste.
4. Automation reduces overall costs: Fully automated operation reduces reliance on highly skilled welders, allowing one person to operate multiple devices. At the same time, high stability reduces maintenance and downtime costs, resulting in outstanding overall economic benefits.
General Strctures
Roller Straight Automated Rolling and Welding Longitudinal Stainless Steel Resistance Seam Welder Machine for Cylinders
Roller Straight Automated Rolling and Welding Longitudinal Stainless Steel Resistance Seam Welder Machine for Cylinders
Roller Straight Automated Rolling and Welding Longitudinal Stainless Steel Resistance Seam Welder Machine for Cylinders
Roller Straight Automated Rolling and Welding Longitudinal Stainless Steel Resistance Seam Welder Machine for Cylinders

Fully automated process integration

From manual start, automatic displacement, pneumatic forming, pressure positioning, servo roll welding to automatic unloading, it achieves a continuous operation cycle of "manual loading and automatic completion", greatly reducing manual intervention.
Roller Straight Automated Rolling and Welding Longitudinal Stainless Steel Resistance Seam Welder Machine for Cylinders

Cylinder

The cylinder adopts a combination of aluminum alloy cylinder barrel, low damping sealing ring, and light friction ring, with wear-resistant surface and long service life, achieving extremely high spot welding speed, electrode pressurization, smooth and fast.
Roller Straight Automated Rolling and Welding Longitudinal Stainless Steel Resistance Seam Welder Machine for Cylinders

Gas Storage Tanks

The projection and spot welding machine is equipped with a dedicated gas storage tank, which is beneficial for reducing welding pressure fluctuations and ensuring stable welding force.
Roller Straight Automated Rolling and Welding Longitudinal Stainless Steel Resistance Seam Welder Machine for Cylinders

Waterway Components

All waterway components undergo surface treatment to prevent rusting, and waterway drainage is independently discharged to the water tank. Based on the outflow situation, blockages in the waterway can be observed and eliminated.

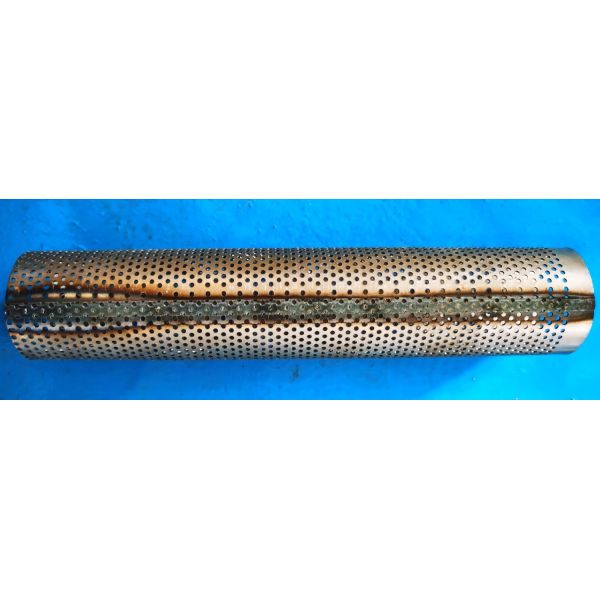

Application
Roller Straight Automated Rolling and Welding Longitudinal Stainless Steel Resistance Seam Welder Machine for Cylinders
Scene images
Roller Straight Automated Rolling and Welding Longitudinal Stainless Steel Resistance Seam Welder Machine for Cylinders
Roller Straight Automated Rolling and Welding Longitudinal Stainless Steel Resistance Seam Welder Machine for Cylinders
More details, please contact!
