Specifications
Product Name :
Feeder Digital Display Crank Long Arm Nut Welder Spot Welding Machine
Place of Origin :
China
Material :
Stainess Steel
Welding Material :
Aluminum
Welding Speed :
0.5-3m
MOQ :
1 set
Payment Terms :
D/A,D/P,Western Union,T/T,L/C
Application :
Metal Sheet
Function :
Automatic Welding
Price :
$5,000-6,000 / set
Delivery Time :
25-45 working days
Welding Length :
180~420mm
Welding Thickness :
0.8-6.0mm
Certification :
ccc
Description
Product: name:Automatic Screw Bolt Feeder Digital Display Crank Long Arm Nut Welder Spot Welding Machine
Product Description

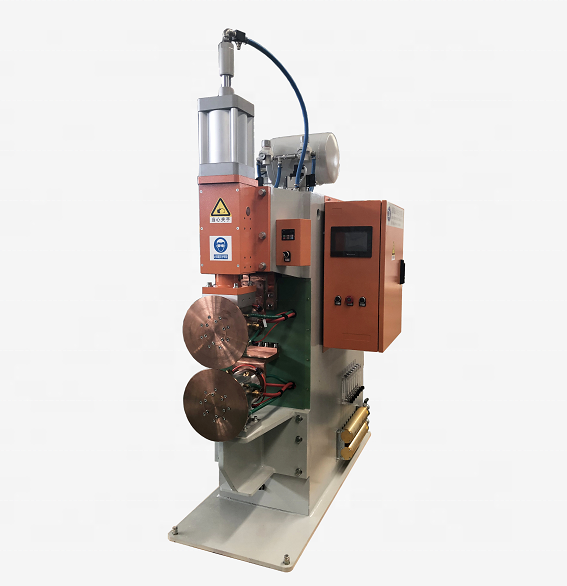

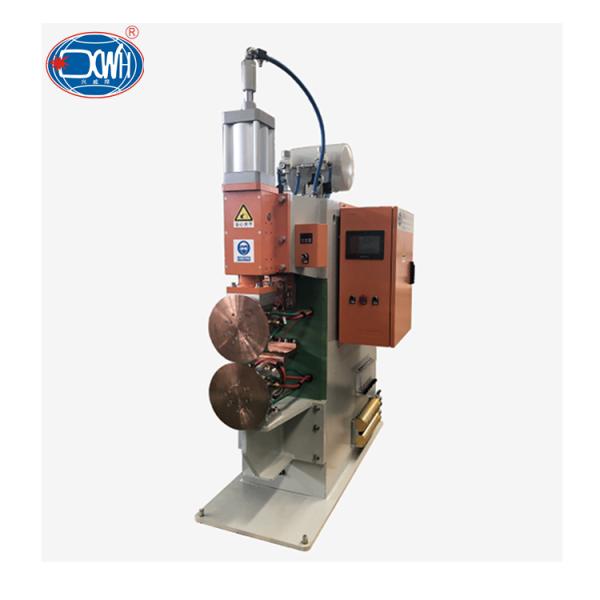

This Seam Welding Machine represents an advanced evolution of resistance spot welding technology, sharing the same fundamental physical principles. The key distinction lies in the nugget formation method: while a spot welder creates discrete weld points, a seam welder utilizes continuously rotating wheel electrodes to fuse a series of overlapping weld nuggets into a continuous, uniform, and highly sealed​ linear seam. This process is particularly suited for products demanding exceptional airtight and watertight​ integrity, enabling the efficient fabrication of leak-proof sealed containers and structural components.

models Item Rated power Voltage input Frequency Max short circuit current Working stroke Welding efficiency Max force Max welding capacity Motor power
Unit KVA V Hz KA MM 0.7-3.9 N MM W
FN-80-H 80 380 50 26 100 0.7-3.9 6000 1.2+1.2 550
FN-100-H 100 380 50 30 100 0.7-3.9 6000 1.5+1.5 750
FN-160-H 160 380 50 40 100 0.7-3.9 7800 2.0+2.0 750
FN-100-E 100 380 50 30 100 0.7-3.9 6000 1.5+1.5 750
FN-160-E 160 380 50 40 100 0.7-3.9 7800 2.0+2.0 400
Features
  • The welding process is stable and easy to adjust.​ Key parameters such as current, speed, and pressure can be independently fine-tuned to accommodate different materials and thickness requirements.
  • Efficient dual-path cooling system.​ Internal cooling protects the transformer and secondary circuit, while external cooling is applied directly to the welding wheels. This synergy ensures long-term stable operation and extends electrode life.
  • High conductivity and rotation flexibility.​ The rotary conduction unit features a specialized design (e.g., embedded silver contact) with a fully sealed and lubricated seat, ensuring excellent current transfer and smooth, low-friction rotation.
  • Two welding modes: horizontal and vertical.​ The machine supports both horizontal and vertical welding orientations, offering process flexibility to suit different product geometries and production line setups.
  • Optimized for welding low carbon steel.​ The machine is optimized for materials like low carbon steel, capable of producing high-quality continuous sealed seams
