Specifications
Price :
$12,000-13,000 / set
Welding Efficiency :
0.7-3.9 M/Min
Supply Ability :
15 sets per month
Certification :
CE, RoHS, ISO
Place of Origin :
Sichuan, China
Welding Capacity :
1.2+1.2 To 2.0+2.0 Mm
Warranty :
12 Months
Brand Name :
XinWeiHan
Delivery Time :
25~30 working days
Rated Power :
80-160 KVA
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Product name :
Automatic MFDC Longitudinal Seam Welder For Low Carbon Steel Filter Drums
After Sales Service :
Free Spare Parts, Field Installation, Commissioning And Training
MOQ :
1 set
Packaging Details :
wooden box
Voltage :
380V/50Hz, 480V
Description
160Kva Mfdc Longitudinal Rolling Resistance Low Carbon Steel Filter Cartridge Rollers
160Kva Mfdc Longitudinal Rolling Resistance Low Carbon Steel Filter Cartridge Rollers
ChengDu Xinweihan is one of the leading welding equipment manufacturer in china, Specialized in manufacturing and provide customers with a complete set of welding solutions. A R&D team of more than 20 engineers., and a 20000 sq.m manufacturer, which guarantees that we can offer customers the most professional welding advice and after-sales service. And we have our own overseas technical service teams in many countries in Southeast Asia and South America to provide customers with on-site installation and maintenance services.(Please contact us to ask if there is a technical team in your country)
160Kva Mfdc Longitudinal Rolling Resistance Low Carbon Steel Filter Cartridge Rollers

Product Overview

Hot Selling Product 160Kva Mfdc Longitudinal Rolling Resistance Low Carbon Steel Filter Cartridge Rollers Drums Seam Welders

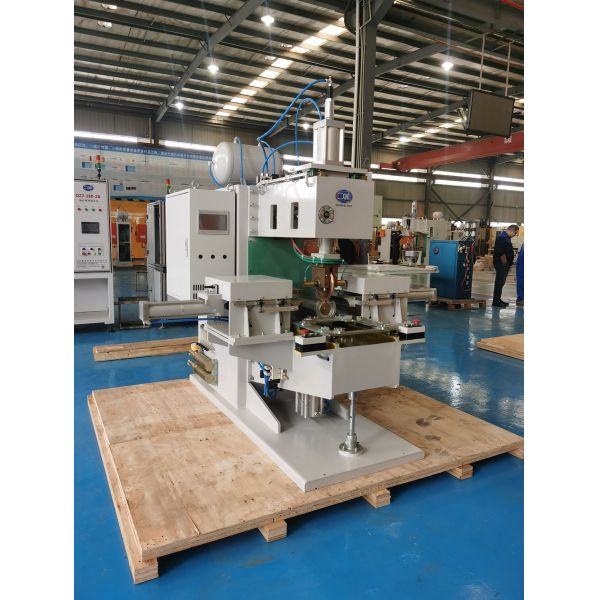

The automatic filter drum seam welding machine (also known as the automatic tube rolling welding machine) is an efficient welding equipment specialized in the manufacturing of low-carbon steel filter drums. The machine adopts a pneumatic pressurization system, with the upper electrode moving vertically, a compact and novel structure, and stable and reliable operation. The welding capability covers plates ranging from 0.5 to 1.5 millimeters, and precise welding is achieved through the unique design of "workpiece fixation and welding machine movement". During the operation, the operator places the pre cut sheet into the fixture, starts it with both hands, and the equipment automatically moves and executes the forming program: the cylinder drives the mold to gradually roll the workpiece; Subsequently, the pressurization program is initiated, and the electrode wheel compresses the workpiece and pre rolls it; During the welding stage, the thyristor triggers the transformer to generate a controllable welding current, while the servo motor drives the electrode wheel to roll weld at a constant speed; After welding is completed, automatic unloading is carried out to complete the fully automated forming, pressurization, welding, and unloading cycle, ensuring safety and energy saving, and significantly improving production efficiency.
160Kva Mfdc Longitudinal Rolling Resistance Low Carbon Steel Filter Cartridge Rollers
Model/Item
Unit
FN-80-H
FN-100-H
FN-160-H
FN-100-E
FN-160-E
Rated power
KVA
80
100
160
100
160
Voltage input
V
380
380
380
380
380
Frequency
Hz
50
50
50
50
50
Max. short circuit current
KA
26
30
40
30
40
Working stroke
mm
100
100
100
100
100
Welding efficiency
m/min
0.7-3.9
0.7-3.9
0.7-3.9
0.7-3.9
0.7-3.9
Max. force
N
6000
6000
7800
6000
7800
Max. welding capacity
mm
1.2+1.2
1.5+1.5
2.0+2.0
1.5+1.5
2.0+2.0
Motor Power
W
550
750
750
750
400
Cooling consumption
L/min
8
8
10
8
10
Weight
Kg
380
510
630
530
700

Main Features

1. High precision forming technology: using pneumatic pressurization and vertical movement system of the upper electrode, combined with programmed forming steps, to achieve high-precision automatic forming of flat workpieces, ensuring the roundness of the cylinder and the consistency of the weld seam. 2.Safety double start and program interlock: Using a dual hand start switch, combined with the sequential action of solenoid valves and cylinders, each program stage is strictly interlocked to prevent misoperation and ensure the safety of personnel and equipment. 3. Fully automated process integration: From manual start, automatic displacement, pneumatic forming, pressure positioning, servo roll welding to automatic unloading, it achieves a continuous operation cycle of "manual loading and automatic completion", greatly reducing manual intervention. 4. Efficient and energy-saving design: Welding transformers with thyristor control for high energy conversion efficiency; The equipment has a compact structure, coordinated operation, and automatic power-off when unloaded, combining the advantages of efficient production and energy conservation.
General Strctures
160Kva Mfdc Longitudinal Rolling Resistance Low Carbon Steel Filter Cartridge Rollers
160Kva Mfdc Longitudinal Rolling Resistance Low Carbon Steel Filter Cartridge Rollers
160Kva Mfdc Longitudinal Rolling Resistance Low Carbon Steel Filter Cartridge Rollers
160Kva Mfdc Longitudinal Rolling Resistance Low Carbon Steel Filter Cartridge Rollers

Fully automated process integration

From manual start, automatic displacement, pneumatic forming, pressure positioning, servo roll welding to automatic unloading, it achieves a continuous operation cycle of "manual loading and automatic completion", greatly reducing manual intervention.
160Kva Mfdc Longitudinal Rolling Resistance Low Carbon Steel Filter Cartridge Rollers

Cylinder

The cylinder adopts a combination of aluminum alloy cylinder barrel, low damping sealing ring, and light friction ring, with wear-resistant surface and long service life, achieving extremely high spot welding speed, electrode pressurization, smooth and fast.
160Kva Mfdc Longitudinal Rolling Resistance Low Carbon Steel Filter Cartridge Rollers

Gas Storage Tanks

The projection and spot welding machine is equipped with a dedicated gas storage tank, which is beneficial for reducing welding pressure fluctuations and ensuring stable welding force.
160Kva Mfdc Longitudinal Rolling Resistance Low Carbon Steel Filter Cartridge Rollers

Waterway Components

All waterway components undergo surface treatment to prevent rusting, and waterway drainage is independently discharged to the water tank. Based on the outflow situation, blockages in the waterway can be observed and eliminated.
Application
160Kva Mfdc Longitudinal Rolling Resistance Low Carbon Steel Filter Cartridge Rollers

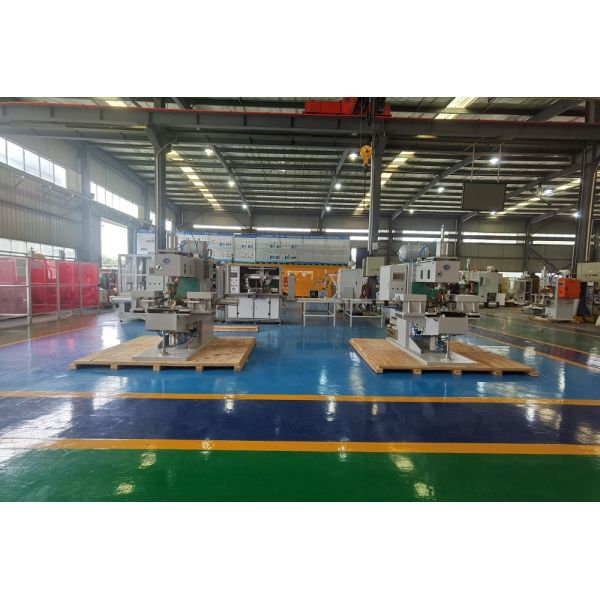

Scene images
160Kva Mfdc Longitudinal Rolling Resistance Low Carbon Steel Filter Cartridge Rollers
160Kva Mfdc Longitudinal Rolling Resistance Low Carbon Steel Filter Cartridge Rollers
More details, please contact!
Multi Types Of Seam Welders
160Kva Mfdc Longitudinal Rolling Resistance Low Carbon Steel Filter Cartridge Rollers
160Kva Mfdc Longitudinal Rolling Resistance Low Carbon Steel Filter Cartridge Rollers
160Kva Mfdc Longitudinal Rolling Resistance Low Carbon Steel Filter Cartridge Rollers
160Kva Mfdc Longitudinal Rolling Resistance Low Carbon Steel Filter Cartridge Rollers
160Kva Mfdc Longitudinal Rolling Resistance Low Carbon Steel Filter Cartridge Rollers
160Kva Mfdc Longitudinal Rolling Resistance Low Carbon Steel Filter Cartridge Rollers
Similar Product
160Kva Mfdc Longitudinal Rolling Resistance Low Carbon Steel Filter Cartridge Rollers
Horizontal Automatic Seam Welding Machine
The seam welder is mainly designed for welding shock absorbers or piston cylinder tubes. It is an automatic welding equipment used for welding circular and annular welds, widely used for welding various metal materials with sealing requirements, including stainless steel, low-alloy steel, aluminum, iron, and other alloys. It mainly completes welding by rotating the electrode to drive the workpiece to rotate.
